Thread: LED Bulb Coding - License Plate Light Without Pulse Width Modulation Option

  1. #41
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    Quote Originally Posted by DV52 View Post
    Gary: please excuse my ignorance where your car is concerned, but there is a PWM situation that does approximate to the DC trace that keeps showing-up on your scope: when the duty cycle of the waveform is 100%! It's probably a dumb question- but was there any form of dimming on the lamps that you used in your tests?
    Yes, it's quite possible that the license plates on my car are set to 100% brightness meaning that PWM would be at full duty cycle, however there is no way to change brightness for the license plate bulbs in VCDS. It may be possible with the other tool I have by directly editing memory cell values, but I would first need to be reasonably confident that the memory cells I'm messing with are actually for the license plate bulb configuration because I don't really want to risk inadvertently damaging something just for the sake of trying to prove something

  2. #42
    Verified VCDS User PetrolDave's Avatar
    Join Date
    Dec 2014
    Location
    South Molton, UK
    Posts
    2,981
    Post Thanks / Like
    Quote Originally Posted by Danners74 View Post
    After market HID are supposed to be failed on the MOT test as most them have no headlamp washers or any self levelling devices.
    Sorry that is't true - please read the online MOT Test Guidelines. IF headlamp washers or self-levelling are fitted they MUST work to pass the MOT, but they are NOT required to be fitted to pass the MOT Test.

    Having said that, a vehicle in the UK with HID headlamps that does not have headlamp washers & self-levelling is illegal as it does not comply with the relevant ECE Regulations.

    The key thing to remember is that the MOT test is NOT a test of legality, it's merely a test of roadworthiness - but one that is full of anomalies that compromise real world safety (another one is that the SRS warning lamp does not have to work but the ABS warning lamp does have to work...).

  3. #43
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    I've now had time to do some extensive testing of the two configuration settings in question (post #1) with no bulbs fitted, with incandescent bulbs fitted, and with LED (non CAN Bus version) bulbs fitted. For each of these 3 bulb type scenarios, I have tried every permutation of the license plate bulb configuration settings to find out whether the Bulb Check Warning Light illuminates or not.

    What I believe I have concluded from this test is that the "License Plate Light w/o Pulse Width Modulation (PWM) [LED Light]" setting has nothing to do with a reduced PWM voltage to the bulbs to try and increase their life at all. I now believe that this "PWM" setting is actually to do with warm bulb diagnosis (sometimes also known as hot bulb dignosis) instead whereby a high frequency PWM signal is likely passed through the bulb while it is switched on to check that there is circuit continuity through it. The results in the tables below seem to back up this theory coupled with the fact that I wasn't seeing a ~12v PWM voltage on the bulb supply when PWM was activated on the license bulb plate supply (i.e. the "without PWM" setting was switched off). It's unfortunate that one setting is the reverse of the other (one of them ticked means "inactive" while the other ticked means "active") as it makes it harder to get your head around interpreting the results. I've therefore also included a second "translated" table which makes it easier for your brain to interpret the results from a visual perspective

    • Cold Bulb Diagnosis
      This is only performed when the ignition is first switched on. This checks each of the bulb circuits for continuity/resistance and will illuminate the Bulb Check Warning Lamp if there are found to be anomalies in any of the bulb circuits. Once the cold diagnosis test completes, it does not continue to check the bulbs so if something happens to a bulb in any of the circuits after the initial cold diagnosis checks were performed, the Bulb Check Warning Lamp will not illuminate. That will only happen if the lights on that particular circuit are switched on (which invokes the warm bulb diagnosis test), or if the ignition is cycled off and back on again.

    • Warm Bulb Diagnosis
      This is performed on a particular circuit whenever the light switch for that circuit is switched on. The diagnosis continues to operate for the duration that the lights remain switched on for on that circuit, so that if any bulbs blow while in use, the Bulb Check Warning Lamp will immediately illuminate as soon as that happens.


    The tables below pretty much speak for themselves but this is a brief summary:-

    • With no bulbs fitted at all, you always get a "bulb out" warning whether under an "ignition on" or "light switch on" condition.

    • The settings and "bulb out" warnings for incandescent bulbs seem to be consistent with what you would expect.

    • The settings for LED bulbs seem to be mostly logical except for row 12 in the Table A (row 10 in Table B). With cold diagnosis switched on I would expect to see a "bulb out" warning appear but it is having the opposite effect. Not so with the warm diagnosis though which if switched on always flags up a "bulb out" warning for the LED bulbs (rows 9 & 10 in Table A, rows 11 & 12 in Table B). So, for LED bulbs you at least need to switch off the warm diagnosis (i.e. switch on the "Without PWM" setting).


    Table A:




    Table B:



    This shows the same results as Table A but with the "Without PWM" column changed to "Lamp Monitoring (Warm)" and the values within that column inverted, plus the rows swapped around so they remain sequential from a logical bit value perspective. For both columns, a bit value of 0 means "switched off" and a bit value of 1 means "switched on". For each bulb type, you can see a much more obvious "pattern" emerging in Table B (green no's to the left, red yes's to the right).


    @RT: Might be worth double-checking the source of the description for Byte 17, Bit 7 on the PQ35 BCMs. I don't know where the descriptions come from but maybe it's one that has just got "lost in translation" or one that just isn't worded particularly well in the document or system it came from
    Last edited by GaryM; 05-20-2017 at 06:48 AM. Reason: Added some additional info on Cold / Warm Bulb Diagnosis

  4. Likes Uwe, D-Dub liked this post
  5. #44
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    I realised I forgot to include an updated Auto-Scan of my car so below is a new one I did this morning. This is with non Can Bus LED license plate bulbs fitted, and with the following license plate bulb settings applied in the BCM which prevent the Bulb Check Warning Light illuminating for the license plate bulb circuit:-

    • Byte 17 Bit 7 -> License Plate Light w/o Pulse Width Modulation (PWM) [LED Light] -> Enabled (ticked/active)

    • Byte 23 Bit 6 -> Lamp Monitoring (Cold) License Plate Lamps active -> Disabled (unticked/inactive)


    Code:
    Saturday,20,May,2017,09:50:49:55895
    VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
    VCDS Version: 17.1.3.0 (x64)
    Data version: 20170320 DS267.7
    www.Ross-Tech.com


    VIN: VSSZZZ1PZCRXXXXXX   License Plate:
    Mileage: 39430km-24500mi   Repair Order:



    --------------------------------------------------------------------------------
    --------------------------------------------------------------------------------


    Chassis Type: 1P (7N0)
    Scan: 01 02 03 08 09 10 15 16 17 19 25 2E 37 42 44 46 52 55 56 62
              72

    VIN: VSSZZZ1PZCRXXXXXX   Mileage: 39430km-24500miles

    01-Engine -- Status: OK 0000
    02-Auto Trans -- Status: OK 0000
    03-ABS Brakes -- Status: OK 0000
    04-Steering Angle -- Status: OK 0000
    08-Auto HVAC -- Status: OK 0000
    09-Cent. Elect. -- Status: OK 0000
    10-Park/Steer Assist -- Status: OK 0000
    15-Airbags -- Status: OK 0000
    16-Steering wheel -- Status: OK 0000
    17-Instruments -- Status: OK 0000
    19-CAN Gateway -- Status: OK 0000
    25-Immobilizer -- Status: OK 0000
    2E-Media Player 3 -- Status: OK 0000
    37-Navigation -- Status: OK 0000
    42-Door Elect, Driver -- Status: OK 0000
    44-Steering Assist -- Status: OK 0000
    46-Central Conv. -- Status: OK 0000
    52-Door Elect, Pass. -- Status: OK 0000
    55-Headlight Range -- Status: OK 0000
    56-Radio -- Status: OK 0000
    62-Door, Rear Left -- Status: OK 0000
    72-Door, Rear Right -- Status: OK 0000

    -------------------------------------------------------------------------------
    Address 01: Engine (CEG)       Labels: 03L-906-022-CBA.clb
       Part No SW: 03L 906 022 TP    HW: 03L 906 022 GP
       Component: R4 2,0L EDC G000AG  5763
       Revision: 13H14---    Serial number:
       Coding: 0000078
       Shop #: WSC 06402 785 00200
       VCID: 0603B34371FD7A71D3-8052

    No fault code found.
    Readiness: 0 0 0 0 0

    -------------------------------------------------------------------------------
    Address 02: Auto Trans        Labels: 02E-927-770.clb
       Part No SW: 02E 300 057 N    HW: 02E 927 770 AL
       Component: GSG DSG AG6     512 3101
       Revision: 05551213    Serial number: 00001111122064
       Coding: 0000020
       Shop #: WSC 06402 785 00200
       VCID: 2447C9CBE701A861AD-8070

    No fault code found.

    -------------------------------------------------------------------------------
    Address 03: ABS Brakes (J104)       Labels: 1K0-907-379-60EC1F.clb
       Part No SW: 1K0 907 379 BJ    HW: 1K0 907 379 BJ
       Component: ESP MK60EC1   H31 0121
       Revision: 00H31001
       Coding: 163B6012092600FD680C06E4901A0082350800
       Shop #: WSC 04941 000 00000
       VCID: 7BF5D2B7FA3F3799BC-802E

    No fault code found.

    -------------------------------------------------------------------------------
    Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
       Part No SW: 5P0 907 044 S    HW: 5P0 907 044 S
       Component: Climatronic   H18 0804
       Revision: 00001001
       Coding: 0000000002
       Shop #: WSC 06402 785 00200
       ASAM Dataset: EV_Climatronic A01010
       ROD: EV_ClimaAutoBasis_SE35.rod
       VCID: 408F655BDB599441A9-8014

    No fault code found.

    -------------------------------------------------------------------------------
    Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
       Part No SW: 5K0 937 087 R    HW: 5K0 937 087 R
       Component: BCM PQ35 H    021 0064
       Revision: BE021001
       Coding: 46180A3EE025B0C042080080950009C442D50008727D8520008040000040
       Shop #: WSC 54559 001 104857
       VCID: 4487694BC74188618D-8010

       Subsystem 1 - Part No: 1P0 955 119 D  Labels: 1KX-955-119.CLB
       Component: Wischer 24111  26  0611
       Coding: 00DB90

       Subsystem 2 - Part No SW: 1P0 955 559 A    HW: 1P0 955 559 A  Labels: 1P0-955-559.CLB
       Component: REGENLICHTSEN  H04 0003
       Coding: 02542E

       Subsystem 3 - Part No: 1P0 951 171 A
       Component: Innenraumuebe  010 4974
       Coding: 000000

       Subsystem 4 - Part No: 1K0 951 605 C
       Component: LIN BACKUP HO  H05 1501
       Coding: 000000

    No fault code found.

    -------------------------------------------------------------------------------
    Address 10: Park/Steer Assist (J446)       Labels: 3C8-919-475.clb
       Part No SW: 5P0 919 475 C    HW: 8P0 919 475 N
       Component: PARKHILFE 8K  H08 0008
       Revision: --------    Serial number: 12561133903563
       Coding: 100104
       Shop #: WSC 04941 000 00000
       VCID: 3B7512B7BABFF799FC-806E

    No fault code found.

    -------------------------------------------------------------------------------
    Address 15: Airbags        Labels: 5N0-959-655.lbl
       Part No SW: 5N0 959 655 R    HW: 5N0 959 655 R
       Component: J234__A0E VW10 HI   1918
       Revision: 23016000    Serial number: 003K0PPTCX2K
       Coding: 0012357
       Shop #: WSC 06402 785 00200
       VCID: 4C97416B2F11402145-8018

       Subsystem 1 - Serial number: 6332MTS610773401

       Subsystem 2 - Serial number: 6342MTS643573401

       Subsystem 3 - Serial number: 6351HTS66QJC0AKR

       Subsystem 4 - Serial number: 6361HTS6UVFA0AKJ

       Subsystem 5 - Serial number: 00000000000000000

       Subsystem 6 - Serial number: 00000000000000000

    No fault code found.

    -------------------------------------------------------------------------------
    Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb
       Part No SW: 5K0 953 521 AT    HW: 5K0 953 569 B
       Component: LENKS.MODUL   014 0140
       Revision: FF010040    Serial number: 20111207200300
       Coding: 189A140002
       Shop #: WSC 06402 785 00200
       ASAM Dataset: EV_SMLSNGVOLWSXS A01004
       ROD: EV_SMLSNGVOLWSXS.rod
       VCID: 7EF3DBA3E12D22B19B-802A

       Multifunction steering wheel control module:
       Subsystem 1 - Part No SW: 1P0 959 538 B    HW: 1P0 959 538 B  Labels: 3C8-959-537.CLB
       Component: E221__MFL-TAP  H02 0102
       Coding: E30000

    No fault code found.

    -------------------------------------------------------------------------------
    Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
       Part No SW: 1P0 920 950 K    HW: 1P0 920 950 K
       Component: KOMBI         H05 0607
       Serial number: 00000000000000
       Coding: 410F01
       Shop #: WSC 131071 1023 2097151
       ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
       ROD: EV_Kombi_UDS_VDD_RM09_SK46.rod
       VCID: 3561048F949B21E90A-8060

    No fault code found.

    -------------------------------------------------------------------------------
    Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
       Part No SW: 7N0 907 530 M    HW: 1K0 907 951
       Component: J533  Gateway H42 1623
       Revision:   H42       Serial number: 281111F1000312
       Coding: 350203
       Shop #: WSC 04941 000 00000
       VCID: 3A7B17B3B585CE91E7-806E

    No fault code found.

    -------------------------------------------------------------------------------
    Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
       Part No SW: 5K0 953 234     HW: 5K0 953 234
       Component: IMMO          H05 0607
       Serial number:
       Coding: 000000
       Shop #: WSC 00000 000 00000
       ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
       ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
       VCID: 6ADBE7F38DA5BE1157-803E

    No fault code found.

    -------------------------------------------------------------------------------
    Address 2E: Media Player 3 (J650)       Labels: 5N0-035-342.lbl
       Part No SW: 5N0 035 342 E    HW: 5N0 035 342 E
       Component: SG EXT.PLAYER H13 0240
       Revision: A1001003    Serial number: 7661443894
       Coding: 010000
       Shop #: WSC 04941 000 00000
       VCID: 2959D8FF402375099E-807C

    No fault code found.

    -------------------------------------------------------------------------------
    Address 37: Navigation (J794)       Labels: 1K0-035-27x-37.clb
       Part No SW: 5P0 035 191 G    HW: 5P0 035 191 G
       Component: RNS315-EU   H35 0263
       Serial number: SEZAZ2L9157843
       Coding: 040004010402000000000002
       Shop #: WSC 06402 785 00200
       ASAM Dataset: EV_RNS315EUV2UDS A01004
       ROD: EV_RNS315EUV2UDS.rod
       VCID: 2F6D36E776C71B3940-807A

       Data medium:
       Subsystem 1 - Part No: 3AA 919 866
       Component: EUR_W_V7  0066

    No fault code found.

    -------------------------------------------------------------------------------
    Address 42: Door Elect, Driver (J386)       Labels: 3C0-959-70X-GEN4.clb
       Part No SW: 3C8 959 701     HW: 3C0 959 793 C
       Component: TUER-SG FT    002 0508
       Revision: 12110009    Serial number: 0003506013
       Coding: 0012B0
       Shop #: WSC 06402 785 00200
       ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
       ROD: EV_TSGFPQ35BRFVW46X.rod
       VCID: 6DD1ECEFBC4BA92932-8038

       Slave Driver:
       Subsystem 1 - Part No SW: 3C0 959 704 E    HW: 3C0 959 794 E  Labels: 1K0-959-70X-GEN4.CLB
       Component: J389__TSG-HR  007 1501
       Serial number: 00000006219061
       Coding: 000290

    No fault code found.

    -------------------------------------------------------------------------------
    Address 44: Steering Assist        Labels: 1K0-909-14x-GEN3.clb
       Part No: 1K0 909 144 N
       Component: EPS_ZFLS Kl. 142    3301
       Revision: 00H22000
       Shop #: WSC 06402 785 00200
       VCID: 3561048F5C9B21E90A-8060

    No fault code found.

    -------------------------------------------------------------------------------
    Address 52: Door Elect, Pass. (J387)       Labels: 3C0-959-70X-GEN4.clb
       Part No SW: 3C8 959 702     HW: 3C0 959 792 C
       Component: TUER-SG BT    002 0508
       Revision: 14110009    Serial number: 0003506882
       Coding: 0012B0
       Shop #: WSC 06402 785 00200
       ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
       ROD: EV_TSGBPQ35BRFVW46X.rod
       VCID: 6ED3EBE3B14D52310B-803A

       Slave Passenger:
       Subsystem 1 - Part No SW: 3C0 959 703 E    HW: 3C0 959 795 E  Labels: 1K0-959-70X-GEN4.CLB
       Component: J388__TSG-HL  007 1501
       Serial number: 00000006236000
       Coding: 000290

    No fault code found.

    -------------------------------------------------------------------------------
    Address 55: Headlight Range        Labels: 5M0-907-357-V2.lbl
       Part No SW: 5M0 907 357 C    HW: 5M0 907 357 C
       Component: AFS-Steuergeraet    0148
       Revision: 00H04000    Serial number:
       Coding: 2557189
       Shop #: WSC 06402 785 00200
       VCID: 3467398B57E138E13D-8060

       Subsystem 1 - Part No: 7L6 941 329 C  Labels: 3D0-941-329.CLB
       Component: AFS-Lst.-Modul l    0004
       Coding: 00000039

       Subsystem 2 - Part No: 7L6 941 329 C  Labels: 3D0-941-329.CLB
       Component: AFS-Lst.-Modul r    0004
       Coding: 00000039

    No fault code found.

    End-------------------------(Elapsed Time: 02:51)--------------------------

  6. Likes Uwe liked this post
  7. #45
    Verified VCDS User
    Join Date
    Oct 2016
    Location
    UK
    Posts
    109
    Post Thanks / Like

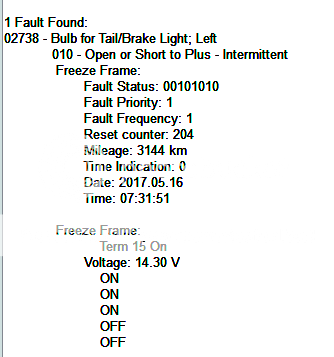

    Well, my celebrations were short lived with my LED stop/tail.



    Interestingly i never had any bulb out warnings.

    Not sure what the on on on off off means though.

    I'll monitor this over the next week or so before i start tweaking dimming, although i'm wondering of it was a voltage spike that caused the fault?

    Should i reduce the voltage via dimming?

    14V seems a bit high, and the time suggests it was me starting the van to go to work when the auto lights came on.

  8. #46
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    The fault is showing as "Intermittent" which is probably the reason why the Bulb Check Warning Lamp didn't illuminate. You can test this by completely removing the bulb and then switching on the ignition. The cold diagnosis check should then kick in and detect a problem with the bulb which should then trigger illumination of the Bulb Check Warning Lamp. You should also find that the DTC is then listed as a normal open or short circuit fault rather than an intermittent one. If you are getting intermittent DTCs now then it may only be a matter of time before a non-intermittent DTC appears during normal use of the lights and your Bulb Check Warning Lamp does then come on.

    The 14.3v is just the voltage that the battery was outputting at the time of the fault. It is not necessarily the voltage that is reaching the bulb. Even if it was, LED bulbs have a voltage regulator built into them which brings down the voltage that reaches the actual on circuit diodes themselves. I have a couple of Osram 7556CW-02B P21W LED bulbs and testing these with a bench power supply shows that any voltage above 6v will turn the LEDs on but they remain the same constant brightness no matter what voltage above 6v is applied to them.

    I'm pretty sure I've seen an explanation on the RT forums before as to what the "ON ON ON OFF OFF" freeze frame data actually means with regards to voltage data values but I can't find it now. Hopefully someone from RT will pipe up with a renewed explanation in this thread

  9. Likes jasons6930, Uwe liked this post
  10. #47
    Verified VCDS User
    Join Date
    Oct 2016
    Location
    UK
    Posts
    109
    Post Thanks / Like
    Quote Originally Posted by GaryM View Post
    The fault is showing as "Intermittent" which is probably the reason why the Bulb Check Warning Lamp didn't illuminate. You can test this by completely removing the bulb and then switching on the ignition. The cold diagnosis check should then kick in and detect a problem with the bulb which should then trigger illumination of the Bulb Check Warning Lamp. You should also find that the DTC is then listed as a normal open or short circuit fault rather than an intermittent one. If you are getting intermittent DTCs now then it may only be a matter of time before a non-intermittent DTC appears during normal use of the lights and your Bulb Check Warning Lamp does then come on.

    The 14.3v is just the voltage that the battery was outputting at the time of the fault. It is not necessarily the voltage that is reaching the bulb. Even if it was, LED bulbs have a voltage regulator built into them which brings down the voltage that reaches the actual on circuit diodes themselves. I have a couple of Osram 7556CW-02B P21W LED bulbs and testing these with a bench power supply shows that any voltage above 6v will turn the LEDs on but they remain the same constant brightness no matter what voltage above 6v is applied to them.

    I'm pretty sure I've seen an explanation on the RT forums before as to what the "ON ON ON OFF OFF" freeze frame data actually means with regards to voltage data values but I can't find it now. Hopefully someone from RT will pipe up with a renewed explanation in this thread
    Thanks Gary.

    Im also intrigued to know how the vehicle applies the tail light function of the lamp, considering it is only a single contact variety.

  11. #48
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    Quote Originally Posted by jasons6930 View Post
    Im also intrigued to know how the vehicle applies the tail light function of the lamp, considering it is only a single contact variety.
    The two different brightness levels of tail lights for position lamps and braking lamps on a single contact / single filament bulb will be achieved either by using PWM or by controlling the current to the bulb. Either one of these will be controlled by the BCM. PWM has already been discussed, but if current control is the mechanism being employed, then below is an explanation as to how that would be working...

    Think of a traditional dual filament bulb on older cars with old school wiring (just analogue relays and switches with no electronic control modules) which have a 5w output on one filament and a 21w output on the other filament. Each of the two filaments in the bulb is just switched on or off separately by two different voltage supply wires. Newer cars with a BCM have the ability to achieve the same 5w / 21w outputs but by using only a single filament bulb and a single voltage supply wire by controlling the current supplied to the bulb on that single wire. 5w being the "normal" brightness for position lamps on the tail lights, and 21w being the full lamp brightness for braking on the tail lights.

    We need to apply Ohm's law to find out the current required for each brightness where I = P / V. We know that the voltage supply is 12 volts, so:-

    • To get the 5 watt output on a single filament bulb (the lower brightness)

      5 / 12 = 0.41

      This means that when tail light position lamps are on, the BCM would be supplying the bulb with 0.41 amps of current to provide a 5 watt power output.

    • To get the 21 watt output on a single filament bulb (the higher brightness)

      21 / 12 = 1.75

      This means that when the tail light brake lamps are activated, the BCM would increase the bulb supply current to 1.75 amps to provide a 21 watt power output.


    Simples


    Of course, it may actually be PWM that is being used to control the brightness and not current. I will test this for a definitive answer when I next get the opportunity. Either way, you now know how a bulb with only a single pair of contacts can have two different brightness levels
    Last edited by GaryM; 05-21-2017 at 03:05 AM. Reason: Corrections to the information provided to avoid assumptions being made

  12. #49
    Verified VCDS User
    Join Date
    Oct 2016
    Location
    UK
    Posts
    109
    Post Thanks / Like
    Ok, as an update.

    Got in to go to work and all ok, but then an hour later got in to go to job and actually had a bulb warning light on the dash with 'check rear stop light' on the display this time.

    Seems like these are going to cause issues so looks like I'm beaten.

    I'll do a scan and see what's it's recorded.

  13. #50
    Verified VCDS User GaryM's Avatar
    Join Date
    Nov 2014
    Location
    Oxford, UK
    Posts
    400
    Post Thanks / Like
    Quote Originally Posted by jasons6930 View Post
    Got in to go to work and all ok, but then an hour later got in to go to job and actually had a bulb warning light on the dash with 'check rear stop light' on the display this time.

    Seems like these are going to cause issues so looks like I'm beaten.
    It's unfortunate that the PQ35 BCMs in the later PQ35 platform cars are so sensitive to the resistive load of bulbs. The earlier 2005-2009 PQ35 platform cars that used an earlier type of BCM don't seem to be nearly as fussy with the type of LED bulbs used.

    It goes to prove that expensive LED bulbs appear to be no better than the cheap ones at suppressing any fault codes.

    If you can't live with the Bulb Check Warning Lamp staring you in the face and you don't want to go down the route of either memory cell editing or putting the incandescent bulbs back in, you do still have the option of wiring in some heavy duty resistors in parallel with the LED bulb (something like these ones). If you do this, be aware that some of these resistors can get quite hot so just make sure you try and mount them to something metal that will sink away any excess heat, and definitely keep them away from anything plastic that could risk being melted.

  14. Likes jasons6930, Uwe liked this post

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
