SFD unlock token retrieval falis , error TR-1
- Thread starter AndreasHGW
- Start date
- Joined
- Jan 29, 2014
- Messages
- 5,271
- Reaction score
- 8,212
- Location
- Lansdale, PA, USA
- VCDS Serial number
- HC800000
Please post the SFDLog.csv . How is your laptop connected to the internet?
My laptop is connected via Wifi to the internet.
Here is my SFD log
Here is my SFD log
| ,,,Start SFD Session,Tuesday,04,August,2026,08:47:28,H18-001742,SFD session start successful |
| WVGZZZCT6RW026xxx,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08:52:45,H18-001742,SFD challenge retrieval success, 583 bytes |
| WVGZZZCT6RW026xxx,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08:52:52,H18-001742,SFD unlock token retrieval fail, error TR-1 |
| WVGZZZCT6RW026xxx,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08:56:20,H18-001742,SFD challenge retrieval success, 583 bytes |
| WVGZZZCT6RW026xxx,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08:56:22,H18-001742,SFD unlock token retrieval success, 852 bytes |
| WVGZZZCT6RW026xxx,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08:56:22,H18-001742,SFD unlock token transmit fail, error TT-30 |
- Joined
- Jan 29, 2014
- Messages
- 5,271
- Reaction score
- 8,212
- Location
- Lansdale, PA, USA
- VCDS Serial number
- HC800000
It's possible there was a momentary glitch on your first attempt, or that your wifi connection took too long to transmit and retrieve; what's sure is that VCDS timed out after 7 seconds waiting for the token. In addition, your PC time is off by several seconds, as our server indicates your first and second tokens were sent at 08:52:37 and 08:56:07 your time, respectively, which is before the challenges could be retrieved in your SFDLog. Because of this, I cannot tell what the latency of your connection is.
The second attempt failed because the server sent two tokens but your interface only saw the second one. At that point, you have to restart the SFD session, as server and interface are out of sync (that's the cause of the error TT-30). On the bright side, you got your second token within two seconds, which is well within the VCDS receive window of 6-7 seconds.
This is what a normal SFD session looks like in SFDLog:
and on our server:
Notice how the timestamps match within one second between VCDS token retrieval and server request. That's also with a laptop on wifi, inside the car, on the driveway.
The second attempt failed because the server sent two tokens but your interface only saw the second one. At that point, you have to restart the SFD session, as server and interface are out of sync (that's the cause of the error TT-30). On the bright side, you got your second token within two seconds, which is well within the VCDS receive window of 6-7 seconds.
This is what a normal SFD session looks like in SFDLog:
Code:
WA124BGF9SA020645,,,Start SFD Session,Tuesday,04,August,2026,12:49:14,HN0-000104,SFD session start successful
WA124BGF9SA020645,Address 0x19,85F 907 468 F,Online SFD,Tuesday,04,August,2026,12:49:21,HN0-000104,SFD challenge retrieval success, 583 bytes
WA124BGF9SA020645,Address 0x19,85F 907 468 F,Online SFD,Tuesday,04,August,2026,12:49:23,HN0-000104,SFD unlock token retrieval success, 532 bytes
WA124BGF9SA020645,Address 0x19,85F 907 468 F,Online SFD,Tuesday,04,August,2026,12:49:23,HN0-000104,SFD unlock token transmitted to controller
WA124BGF9SA020645,Address 0x19,85F 907 468 F,Online SFD,Tuesday,04,August,2026,12:49:23,HN0-000104,Unlock_successful
WA124BGF9SA020645,Address 0x19,85F 907 468 F,Online SFD,Tuesday,04,August,2026,12:49:24,HN0-000104,Diagnostic filter deactivated
WA124BGF9SA020645,Address 0x09,V04 007 000 PK,Online SFD,Tuesday,04,August,2026,12:49:51,HN0-000104,SFD challenge retrieval success, 583 bytes
WA124BGF9SA020645,Address 0x09,V04 007 000 PK,Online SFD,Tuesday,04,August,2026,12:49:53,HN0-000104,SFD unlock token retrieval success, 532 bytes
WA124BGF9SA020645,Address 0x09,V04 007 000 PK,Online SFD,Tuesday,04,August,2026,12:49:53,HN0-000104,SFD unlock token transmitted to controller
WA124BGF9SA020645,Address 0x09,V04 007 000 PK,Online SFD,Tuesday,04,August,2026,12:49:54,HN0-000104,Unlock_successful
WA124BGF9SA020645,Address 0x29,95C 941 591 AE,Online SFD,Tuesday,04,August,2026,12:50:17,HN0-000104,SFD challenge retrieval success, 583 bytes
WA124BGF9SA020645,Address 0x29,95C 941 591 AE,Online SFD,Tuesday,04,August,2026,12:50:19,HN0-000104,SFD unlock token retrieval success, 852 bytes
WA124BGF9SA020645,Address 0x29,95C 941 591 AE,Online SFD,Tuesday,04,August,2026,12:50:19,HN0-000104,SFD unlock token transmitted to controller
WA124BGF9SA020645,Address 0x29,95C 941 591 AE,Online SFD,Tuesday,04,August,2026,12:50:21,HN0-000104,Unlock_successful
WA124BGF9SA020645,Address 0x8C,0Z3 909 107 S,Online SFD,Tuesday,04,August,2026,12:50:45,HN0-000104,SFD challenge retrieval success, 583 bytes
WA124BGF9SA020645,Address 0x8C,0Z3 909 107 S,Online SFD,Tuesday,04,August,2026,12:50:46,HN0-000104,SFD unlock token retrieval success, 852 bytes
WA124BGF9SA020645,Address 0x8C,0Z3 909 107 S,Online SFD,Tuesday,04,August,2026,12:50:47,HN0-000104,SFD unlock token transmitted to controller
WA124BGF9SA020645,Address 0x8C,0Z3 909 107 S,Online SFD,Tuesday,04,August,2026,12:50:48,HN0-000104,Unlock_successfuland on our server:
Notice how the timestamps match within one second between VCDS token retrieval and server request. That's also with a laptop on wifi, inside the car, on the driveway.
- Joined
- Jan 29, 2014
- Messages
- 5,271
- Reaction score
- 8,212
- Location
- Lansdale, PA, USA
- VCDS Serial number
- HC800000
PS: If you update to VCDS 26.7.2 for your next attempt, it should auto-disable the diagnostic filter for you.
--
Last edited:
Thanks, I have updated the software.

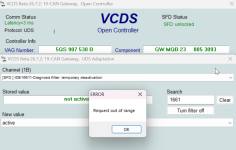

Now I'm able to unlock the SFD. But maybe there is still a problem with the diagnostic filter. Or is this message OK?
Now I'm able to unlock the SFD. But maybe there is still a problem with the diagnostic filter. Or is this message OK?
And if I have a look in the error log I can see this. Is this because of the auto-disable the diagnostic filter?
8417280 - Diagnostic Filter
U17A0 00 [00101111] - Not Activated
[Filter_is_not_active]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:49:47
8417280 - Diagnostic Filter
U17A0 00 [00101111] - Not Activated
[Filter_is_not_active]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:49:47
Post an Auto-Scan from this car please. It does not appear to the the same one you posted over here.
-Uwe-
-Uwe-
Code:
Wednesday,05,August,2026,08:53:10:20132
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 26.7.2.1 (x64) HEX-V2 CB: 0.4713.5
Data version: 20260708 DS378.0
www.Ross-Tech.com
VIN: VIN: xxxx License Plate: xxxxx
Mileage: 25097km-15594mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: CT-VW38P PA* (5QS)
Scan: 01 02 03 05 08 09 10 13 15 16 17 19 23 2B 42 44 4B 52 5F 61
69 6C 75 82 A5 BB BC C4 CC D1 D6 D7 D8 D9 DE 8107 8109 810A 810B 810C
8117 81D0 C002 C003
VIN: xxxx Mileage: 25097km-15594miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
23-Brake Booster -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
4B-Multifunc. Module -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
75-Telematics -- Status: OK 0000
82-Head Up Display -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: Malfunction 0010
BB-Door Rear Drv -- Status: OK 0000
BC-Door Rear Pass -- Status: OK 0000
C4-DC/DC Converter -- Status: OK 0000
CC-Starter-Generator -- Status: OK 0000
D1-Disp/Oper. unit Front Center -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: Malfunction 0010
D7-Light Ctrl Right 2 -- Status: OK 0000
D8-LED HeadL. Pwr Left -- Status: Malfunction 0010
D9-LED HeadL. Pwr Right -- Status: OK 0000
DE-Charger 1 for mobile dev -- Status: OK 0000
8107-Antenna -- Status: OK 0000
8109-Close Rge Radar 1 -- Status: OK 0000
810A-Close Rge Radar 2 -- Status: OK 0000
810B-Close Rge Radar 3 -- Status: OK 0000
810C-Close Rge Radar 4 -- Status: Malfunction 0010
8117-Rear surroundings cam -- Status: Malfunction 0010
81D0-Digit. Matrix Light -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DXDB) Labels: Redir Fail!
Part No SW: 05E 906 019 ED HW: 05E 907 309 CA
Component: R4 1.5l TFS H80 4181
Revision: KNH80000 Dataset Number: V03935404LB 0001 CVN: 71D78490
Coding: 0125003223741D0870086000001000000000000000000000
Shop #: WSC 99999 999 2097151
ASAM Dataset: EV_ECM15TFS01105E906019ED 001006
ROD: EV_ECM15TFS01105E906019BD_VW38P.rod
VCID: 6C85093BF60F1D2A12A-8038 SFD+SFD2 [x]
VINID: 9E65EAAAA4E41A29C008618914C83A7977
Radiator shutter:
Subsystem 1 - Part No SW: 5QS 965 501 E HW: 5QS 965 501 E
Component: V544_SAB_XS_1 H03 0003
Serial number: 20240228060506056625
Active oil separating system:
1 Fault Found:
23765 - Control unit for information electronics 1
U1054 00 [00100100] - No Communication
[Information electronics control module 1No Communication]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
Engine speed: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 23 °C
Intake air temperature: 26 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 11.880 V
Unlearning counter according OBD: 40
Outside temperature: 23 °C
Absolute intake pressure: 101 kPa abs
Engine torque: 0.0 Nm
Fuel: tank fill level: 34.6 l
Oxygen sensor bank 1 sensor 1: specified value: 1.0000
Particulate filter: loading stage: 0
Overrun cut-off: False result
Overrun cut-off-Test_Program_B TRUE UBYTE: 0
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0GC 906 556 AR HW: 0GC 300 058 H
Component: GSG DQ381 H06 0661
CVN: FA7D0A2A
ASAM Dataset: EV_TCMDQ381064 001011
ROD: EV_TCMDQ381064.rod
VCID: 0C4569BBD6CFBD2AB2A-8058 SFD [x]
Parking lock:
Subsystem 1 - Part No SW: 5QS 907 483 A HW: 5QS 907 483
Component: SB_Auto H02 0060
Serial number: 9126879000338002
MTF pump:
Subsystem 2 - Part No SW: 0GC 927 373 M HW: 0GC 927 373 M
Component: SMOP DQ381 H04 0001
Serial number: C7458810700006438079
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 3WA-614-517-V1.clb
Part No SW: 3WA 614 517 AL HW: 3WA 614 517 E
Component: EBC470IESCH08 0390
Serial number: 0000000 Dataset Number: V03935469XB 0001 CVN: AA7F52
Coding: 2C185124C49C399E410799AC9EB7010C0583952149A8
ASAM Dataset: EV_Brake1ZFESCEPBMQB48W 002068
ROD: EV_Brake1ZFESCEPBMQB48W_002.rod
VCID: 107D7DCBBAE799CA4E2-8044 SFD+SFD2 [x]
6 Faults Found:
593168 - Development code 1
B2F01 00 [00100000] - -
[HMS_INCONSISTENCY_PA]
Intermittent - Not Confirmed - Tested Since Memory Clear
82320 - Diagnostic Gateway Module
U0447 00 [00100000] - Implausible Signal
[MSG_MOTOR_55_TS_STATUS_MOMRAD_IST_QM_FEHLERFREI]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 53
Reset counter: 37
Mileage: 22717 km
Date: 2026.05.26
Time: 11:15:47
70000 - No Communications with Parking Assist Control Module A
U0159 00 [00100000] - -
[MSG_PARKEN_01_TIMEOUT]
Intermittent - Not Confirmed - Tested Since Memory Clear
70032 - Rear View Camera System Control Module
U104C 00 [00101000] - No communication
[MSG_REAR_VIEW_05_TIMEOUT]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 40
Reset counter: 40
Mileage: 22742 km
Date: 2026.05.30
Time: 09:04:13
590992 - Delay Function
C11EE 00 [00101000] - -
[VZM_INCONSISTENCY_CAMERA]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 40
Reset counter: 40
Mileage: 22742 km
Date: 2026.05.30
Time: 09:04:13
590848 - Delay Function
C11EE 00 [00100000] - -
[VZM_INCONSISTENCY_PARKING_SYSTEMS]
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels: 5WA-959-436.clb
Part No SW: 5WA 959 436 AC HW: 5WA 959 436 M
Component: Kessy IOBOX 122 0771
Serial number: --------------- Dataset Number: V03935394SD 0001
ASAM Dataset: EV_Kessy37w 005030
ROD: EV_Kessy37w_005_VW38.rod
VCID: 15730CDF85057CE21D4-8040
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J979) Labels:* Redir Fail!
Part No SW: 3WA 907 007 F HW: 3WA 907 007
Component: Climatronic H01 5089
Serial number: 221122301133360 Dataset Number: V03935469UG 0001
Coding: 622000010211120010000000101011110000132100200000000000000000
ASAM Dataset: EV_ACClimaBHBE3ADV 002062
ROD: EV_ACClimaBHBE3ADV_002_VW41.rod
VCID: 48CD95AB8237110A562-801C SFD+SFD2 [x]
Interior temperature sensor:
Subsystem 1 - Part No SW: 5WA 907 527 A HW: 5WA 907 527 A
Component: E857 H01 0103
Serial number: 00002030424015002517
Air quality sensor:
Subsystem 2 - Part No SW: 5Q0 907 659 D HW: 5Q0 907 659 D
Component: G238 _AQS H02 0003
Serial number: 00000000000003139753
Rear air conditioning block 1:
Subsystem 3 - Part No SW: 11A 907 049 HW: 11A 907 049
Component: E265 KPH H02 0183
Serial number: G07S03.04.2400971988
3 Faults Found:
329475 - Motor for Fresh Air / Recirculated Air Flap
B108B 13 [01101100] - Open Circuit
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 46
Reset counter: 40
Mileage: 22727 km
Date: 2026.05.27
Time: 09:51:15
Voltage terminal 30: 11.70 V
Inside temperature: 0.00 °C
Outside temperature: 17.00 °C
Fresh air/recirculating air/back pressure door specified value: 632
Actual value for fresh air/recirculation air flow flap: 848
Actual value for fresh air/recirculation air flow flap: 99.0 %
590082 - Control Circuit for A/C Compressor
B10A9 15 [00100000] - Open or Short to Plus
Intermittent - Not Confirmed - Tested Since Memory Clear
1048833 - Function Limitation due to Compressor Shut-Off Request By Engine
B10F0 00 [01101000] - -
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 26
Reset counter: 39
Mileage: 22740 km
Date: 2026.05.29
Time: 09:53:25
Voltage terminal 30: 14.30 V
Compressor shut-off condition: Engine stop active in Start/Stop mode
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 5WA-937-08X-V1.clb
Part No SW: 5WA 937 084 AE HW: 5WA 937 084 P
Component: BCM37w_H H26 0326
Serial number: 051024106002910 Dataset Number: V03935461FH 0001
ASAM Dataset: EV_BCMwBL 004001
ROD: EV_BCMwBL_004.rod
VCID: 127977C3B4EB6BDA786-8046 SFD+SFD2 [x]
Wiper motor control module:
Subsystem 1 - Part No SW: 571 955 113 HW: 571 955 113
Component: WISCHER_MYJTL 006 0093
Serial number: VZ1SKA07042442005700
Rain/Light Recognition Sensor:
Subsystem 2 - Part No SW: 85E 955 555 A HW: 85E 955 555
Component: G397_RLFSS H09 0009
Serial number: 40030132X85E955555A0
Light switch:
Subsystem 3 - Part No SW: 571 941 633 A HW: 571 941 633 A
Component: E1 - LiAM H05 0070
Serial number: 07S09.04.2426791317
Roof electronics control module:
Subsystem 4 - Part No SW: 571 959 561 HW: 571 959 561
Component: -VW----LINDA- 504 0831
Serial number: SYLLND14042400020746
Left taillight 1:
Subsystem 5 - Part No SW: 571 945 423 HW: 571 945 423
Component: SHL_li1 H05 0051
Serial number: ZYWX6E02DB40027D06K3
Left taillight 2:
Subsystem 6 - Part No SW: 571 945 429 HW: 571 945 429
Component: SHL_li2 H05 0053
Serial number: ZXFU6EPEDJ5108BB063B
Right taillight 1:
Subsystem 7 - Part No SW: 571 945 424 HW: 571 945 424
Component: SHL_re1 H05 0051
Serial number: ZYWY6E02UF40017D06K3
Right taillight 2:
Subsystem 8 - Part No SW: 571 945 430 HW: 571 945 430
Component: SHL_re2 H05 0053
Serial number: ZXFV6EP5GK5101BB063B
2 Faults Found:
947214 - Windshield Wiper Motor; Driver Side
B1390 04 [01101000] - Internal System Fault
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 2
Reset counter: 39
Mileage: 25003 km
Date: 2026.08.01
Time: 10:17:20
Terminal 15 status: On
Terminal 50 status: OFF
Engine run: OFF
Status drive readiness: not ready to drive
Status of brake lamp switch: discrete: On
Brake lamp switch via CAN: status: On
Operating State: Normal mode
Voltage: 13.30 V
Outside temperature: 28.00 °C
Light switch position: automatic
15401472 - Secure Onboard Communication
U14FF 00 [00101100] - Signature Generation Failed
[Sichere on-board Kommunikation: Signaturerstellung fehlgeschlagen]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 128
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.04
Time: 09:06:29
Terminal 15 status: OFF
Terminal 50 status: OFF
Engine run: On
Status drive readiness: not ready to drive
Status of brake lamp switch: discrete: On
Brake lamp switch via CAN: status: On
Operating State: Normal mode
Voltage: 13.00 V
Outside temperature: 21.00 °C
Light switch position: automatic
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:* None
Part No SW: 5QS 919 300 B HW: 5QS 919 300
Component: IPA 12ch high H01 0179
Serial number: 000026032494630 Dataset Number: V03935448JG 0001
Coding: 8A10026111
ASAM Dataset: EV_EPHBO3CVW3360000 001014
ROD: EV_EPHBO3CVW3360000_VW42.rod
VCID: 51FBB8CF716DD0C201C-8004
5 Faults Found:
1114113 - Driver Assistance Systems Audio Output
B1AE2 F0 [00101100] - Infotainment System; Implausible Signal
[sound_output_MIB_totally_disturbed]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 38
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:15
12587143 - Databus
U1121 00 [00101100] - Missing Message
[MIB - MainUnit_01 - kein Signal/keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 38
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
13640960 - Implausible Data Received from ESP Control Module
U0416 00 [00100000] - -
[Rollrichtung unplausible Werte]
Intermittent - Not Confirmed - Tested Since Memory Clear
13640962 - Implausible Data Received from ESP Control Module
U0416 00 [01100000] - -
[Wegimpulszähler unplausible Werte]
Intermittent - Not Confirmed - Tested Since Memory Clear
13640965 - Control Module for Parking Aid
B1B17 06 [01101101] - Algorithm Failure
[Program flow SW error]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Reset counter: 40
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:* None
Part No SW: 1N3 907 567 D HW: 1N3 907 819
Component: ACC Bosch MQB H02 0436
Dataset Number: V03935485SA 0001
Coding: 0E8930EF4071404040020008000040C0010020008004000000000000000000
ASAM Dataset: EV_FRONTRADARBOSCHVW412 002016
ROD: EV_FRONTRADARBOSCHVW412_002_VW41.rod
VCID: 382DE56BF2D7618A262-806C SFD+SFD2 [x]
6 Faults Found:
0322 - Databus
U1122 00 [00101000] - Implausible Message
[FAULT_SWA_MODE_SYSTEM_NOT_AVAILABLE]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 27
Reset counter: 40
Mileage: 22742 km
Date: 2026.05.30
Time: 09:04:14
Outside temperature: 16.00 °C
Control Module temperature: 16 °C
Voltage terminal 30: 12.8 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: initialized
kilometer reading: 22742 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 02 30
0790 - Databus
U1122 00 [00101000] - Implausible Message
[FAULT_RB_PER_HV_SERVICE_OOS]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 27
Mileage: 23854 km
Date: 2026.06.24
Time: 15:52:19
Outside temperature: 43.00 °C
Control Module temperature: 52 °C
Voltage terminal 30: 12.8 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: initialized
kilometer reading: 23854 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 01 F3
1127 - Databus
U1121 00 [00101000] - Missing Message
[FAULT_TIMEOUT_PSD_04]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
Outside temperature: 23.00 °C
Control Module temperature: 36 °C
Voltage terminal 30: 11.6 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: Readiness
kilometer reading: 25097 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 01 2E
1218 - Databus
U1121 00 [00101000] - Missing Message
[FAULT_TIMEOUT_PSD_05]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
Outside temperature: 23.00 °C
Control Module temperature: 36 °C
Voltage terminal 30: 11.5 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: Readiness
kilometer reading: 25097 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 01 2F
1219 - Databus
U1121 00 [00101000] - Missing Message
[FAULT_TIMEOUT_PSD_06]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
Outside temperature: 23.00 °C
Control Module temperature: 36 °C
Voltage terminal 30: 11.6 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: Readiness
kilometer reading: 25097 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 01 30
2065 - Databus
U1122 00 [00101000] - Implausible Message
[FAULT_TSK_HANDSHAKE]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 27
Mileage: 23854 km
Date: 2026.06.24
Time: 15:52:19
Outside temperature: 43.00 °C
Control Module temperature: 52 °C
Voltage terminal 30: 12.6 V
Vehicle speed: -0.00 m/s
Longitudinal acceleration: -0.00 m/s²
Adaptive distance regulation: status: Reversible error
kilometer reading: 23854 km
Monitoring_debug_information: 00 00 00 00 00 00 00 00
Event_Id: 02 3A
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5QS-959-655.clb
Part No SW: 5QS 959 655 AA HW: 5QS 959 655 B
Component: AirbagVW50 004 0131
Serial number: 000000003C0N0RB Dataset Number: V03935458WK 0001
Coding: 88FC008000F0C000000000400000000051540000A1540000C000F680002B00A7
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AirbaVW50SMEVW49X 001014
ROD: EV_AirbaVW50SMEVW49X.rod
VCID: 22192703444B1B5AE86-8076 SFD+SFD2 [x]
Left seat belt tensioner:
Subsystem 1 - Part No SW: 85E 980 945 B HW: 85E 980 945 B
Component: BeltPretRevFL 005 0052
Serial number: 00E22024095060100000
Right seat belt tensioner:
Subsystem 2 - Part No SW: 85E 980 946 B HW: 85E 980 946 B
Component: BeltPretRevFR 005 0052
Serial number: 00E22024095015800000
Crash sensor for side airbag: driver side:
Subsystem 3 - Part No SW: ----------- HW: 480 001 502 18
Component: SideSensor_Df 001 0887
Serial number: 35700008D38904786F50
Crash sensor for side airbag: passenger side:
Subsystem 4 - Part No SW: ----------- HW: 480 000 803 18
Component: SideSensor_Pf 001 0887
Serial number: 3580000FE4854B5F4610
Crash sensor for side airbag: driver side rear:
Subsystem 5 - Part No SW: ----------- HW: 480 050 504 18
Component: SideSensor_Dr 000 0189
Serial number: 3510000C8CF3ED592860
Crash sensor for side airbag: passenger side rear:
Subsystem 6 - Part No SW: ----------- HW: 480 050 504 18
Component: SideSensor_Pr 000 0189
Serial number: 3520000C6CF3ED52C760
Crash sensor for front airbag: driver side:
Subsystem 7 - Part No SW: ----------- HW: 480 050 E03 18
Component: FrontSensor_D 000 014A
Serial number: 3550000BAD1F284A6490
Crash sensor for front airbag: passenger side:
Subsystem 8 - Part No SW: ----------- HW: 480 050 E03 18
Component: FrontSensor_P 000 014A
Serial number: 356000098CEFB4520B40
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels: 1EE-953-507.clb
Part No SW: 1EE 953 507 N HW: 1EE 953 507 N
Component: GSMMEB 005 0066
Serial number: 000000110424260
ASAM Dataset: EV_SMLSKLOGEN2 009005
ROD: EV_SMLSKLOGEN2_009_VWE3.rod
VCID: 46D19B938823077AA4E-8012 SFD [x]
1 Fault Found:
131396 - Databus
U1121 00 [00100000] - Missing Message
[Getriebe_16_no_communication]
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:* None-SRI2
Part No SW: 571 920 340 A HW: 571 920 340
Component: KOMBI 304 9460
Dataset Number: V03935429DR 0001
Coding: 042400406B9C00080180620B2000080810385C0800
ASAM Dataset: EV_DashBoardVDDMQB37W 005050
ROD: EV_DashBoardVDDMQB37W_005_VW42.rod
VCID: 107D7DCBBAE799CA4E2-8044 SFD [x]
4 Faults Found:
16777018 - Control unit for information electronics 1
U1054 00 [00001000] - No Communication
[Audio_0x31 communication error bap_error_timeout heartbeat]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 6
Mileage: 24841 km
Date: 2026.07.24
Time: 08:37:56
16777020 - Control unit for information electronics 1
U1054 00 [00001000] - No Communication
[TEL_0x28 communication error bap_error_timeout heartbeat]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 6
Mileage: 24841 km
Date: 2026.07.24
Time: 08:37:56
16777022 - Control unit for information electronics 1
U1054 00 [00001000] - No Communication
[NAV_SD_0x32 communication error bap_error_timeout heartbeat]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 6
Mileage: 24841 km
Date: 2026.07.24
Time: 08:37:56
8667138 - Distance
U197A 00 [00001000] - Plausibility Check
[Wegstrecke Plausibilisierung ist fehlerhaft]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 28
Reset counter: 6
Mileage: 22932 km
Date: 2026.06.06
Time: 09:01:11
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:* None
Part No SW: 5QS 907 530 B HW: 5QS 907 530
Component: GW MQB 23 005 3093
Serial number: SMERBG110324007 Dataset Number: V03935467YE 0001
Coding: 000000000000000000000000000000000000000000000300030000000000000000000000000000000000000000000000
GVL: 3D08000002E8C28C80408042C80020400C186002007C00020200000000000054
ASAM Dataset: EV_GatewMQBwBL 001018
ROD: EV_GatewMQBwBL_VW41.rod
VCID: 53F7B2C74B71A2D2330-8006 SFD+SFD2 [ ]
Battery Monitoring Control Module:
Subsystem 1 - Part No SW: 5QS 915 181 HW: 5QS 915 181
Component: J367-BDMHella H01 2362
Serial number: 0704434106
Multi-function steering wheel control module:
Subsystem 2 - Part No SW: 571 959 442 B HW: 571 959 442 B
Component: E221__MFL-PR6 H07 0130
Serial number: PR6-0440066143233623
Steering Wheel Touch Recognition Control Module:
Subsystem 3 - Part No SW: 3G0 959 542 B HW: 3G0 959 542 B
Component: J IEEHOD1ZONE 251 0303
Serial number: 00000000230500409574
8 Faults Found:
1049252 - Ethernet Databus Branch 4
U122F 00 [00100000] - No Communication
[Ethernet_databus_no_communication_branch_4_/_port_5]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 2
Reset counter: 27
Mileage: 24167 km
Date: 2026.07.01
Time: 09:46:59
2502759 - Ethernet Module for Emergency Call
U1642 00 [00101000] - No Communication
[Emergency-call_module_no_communication_vlan]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 2
Reset counter: 27
Mileage: 24167 km
Date: 2026.07.01
Time: 09:46:54
2097338 - Ethernet Antenna Module
U1646 00 [00101000] - No Communication
[Antenna_control_module_1_no_communication_vlan]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 2
Reset counter: 27
Mileage: 24167 km
Date: 2026.07.01
Time: 09:46:59
8397579 - 12V Battery
U183C 00 [00101000] - Discharged
[12V_battery_empty]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 4
Reset counter: 27
Mileage: 24838 km
Date: 2026.07.22
Time: 18:46:27
Specified voltage: 10.6 V
Generator actual voltage: 8.0 V
Voltage difference generator battery: 0.0 V
Generator speed: 0 /min
Generator chip temperature: -40 °C
8417280 - Diagnostic Filter
U17A0 00 [00101111] - Not Activated
[Filter_is_not_active]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:49:47
8450315 - Predictive Route Data
B1630 02 [00100000] - Signal Failure
[PSD_GW_message_order_inconsistent]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 3
Reset counter: 40
Mileage: 24699 km
Date: 2026.07.19
Time: 10:22:38
12400 - Release / Enable Active
B184C 00 [00100111] - -
[Unlock_protection_of_vehicle_diagnosis_active]
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:49:47
1048996 - Ethernet Databus Branch 4
U11BE 00 [00100000] - Electrical Malfunction
[Ethernet_databus_electric_fault_branch_4_/_port_5]
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address 23: Brake Booster (J539) Labels: None
Part No SW: 3WA 909 059 R HW: 3WA 909 059 B
Component: EBB-ZF-Gen1 H06 0486
Serial number: 6100014 Dataset Number: V03935476RL 0001
Coding: 601010200080E8
ASAM Dataset: EV_BrakeBoostZFMQB48W 001072
ROD: EV_BrakeBoostZFMQB48W_001.rod
VCID: 5DE354FF3DB564A2954-8008 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:. 3WA-905-861.clb
Part No SW: 3WA 905 861 HW: 3WA 905 861
Component: ELV-MQB_UNECE H05 0063
Serial number: 24000092736002 Dataset Number: V03935396MA 0001
Coding: 8820000000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ELVMarqUNECE 003006
ROD: EV_ELVMarqUNECE_003_VW27.rod
VCID: 084D55ABC2B7D10A962-805C SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:* None
Part No SW: 3WA 959 593 A HW: 3WA 959 593
Component: TSG FS 001 0222
Serial number: YG007XB704326 Dataset Number: V03935447SX 0001
Coding: 003D0320D000008102003030
ASAM Dataset: EV_DCU4DriveSideMAXHKLO 001016
ROD: EV_DCU4DriveSideMAXHBRO_VW42.rod
VCID: 54F5B1DB4E7FA5EA2AA-8000 SFD+SFD2 [x]
2 Faults Found:
196660 - Motor for Window Regulator
B1487 54 [01100000] - Missing Calibration / Basic Setting
Intermittent - Not Confirmed - Tested Since Memory Clear
196711 - Motor for Window Regulator
B1487 29 [01100000] - Signal Implausible
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 5WA-907-14X-V2.clb
Part No SW: 5QS 907 146 D HW: 5QS 907 146
Component: BASGEN1MQB37 263 2122
Serial number: 00303901 Dataset Number: V03935442GV 0001
Coding: 00000000000001010001020101000100000001010101
ASAM Dataset: EV_SteerAssisBASGEN1MQB37 017078
ROD: EV_SteerAssisBASGEN1MQB37_017.rod
VCID: 58ED45EB5297818AC62-800C SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 4B: Multifunc. Module (J745) Labels:* None
Part No SW: 5QS 907 338 D HW: 5QS 907 338 B
Component: FCM Baseline 019 3094
Serial number: 780542040024074 Dataset Number: V03935445XS 0001
Coding: 0000000009001BCA00102F11090003000000000000000000000000000000
ASAM Dataset: EV_MultiModulContiWBL 001008
ROD: EV_MultiModulContiWBL.rod
VCID: 5BE75AE723A16A92EB0-800E SFD [x]
1 Fault Found:
13705489 - Databus
U1121 00 [00001000] - Missing Message
[PSD_04 data bus missing message]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:* None
Part No SW: 3WA 959 592 A HW: 3WA 959 592
Component: TSG BFS 001 0222
Serial number: YG007XAK09014 Dataset Number: V03935447DS 0001
Coding: 003D0120DC00008002003030
ASAM Dataset: EV_DCU4PasseSideMAXHKLO 001016
ROD: EV_DCU4PasseSideMAXHKLO_VW41.rod
VCID: 53F7B2C74B71A2D2330-8006 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 3G5-035-MIB-HGH3.clb
Part No SW: 572 035 816 B HW: 572 035 816
Component: MU-O-ND-EU H10 2650
Serial number: WG8LGM050424000 Dataset Number: V03935464PG 0001
Coding: 23360006000000000000000000000000000000000000000000
ASAM Dataset: EV_MUOIMQB37w 002001
ROD: EV_MUOIMQB37w_002_VW38P.rod
VCID: 176F06D79F094EF20F8-8042 SFD+SFD2 [x]
Display and control head 1 for information electronics:
Subsystem 1 - Part No SW: 14A 919 605 M HW: 14A 919 605
Component: ABT-E3_13 H43 4047
Serial number: CKS00716042411531299
Data carrier:
Subsystem 2 - Part No: V03 959 820 GG
Component: EUR 2024 0095
1 Fault Found:
0021 - Functional Limitation due to Energy Management
B10CD 00 [00001000] - -
[Function restriction via shutoff stage Q2]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 9
Fault Frequency: 4
Reset counter: 20
Mileage: 24838 km
Date: 2026.07.22
Time: 19:11:18
Voltage terminal 30: 11.6 V
-------------------------------------------------------------------------------
Address 61: Battery Regul. (A6) Labels: 5QA-915-107.clb
Part No SW: 5QA 915 107 C HW: 5QA 915 107
Component: BMS 48V H07 0537
Serial number: 000000000000000
ASAM Dataset: EV_BMSmHevGen2CATL 002020
ROD: EV_BMSmHevGen2CATL_VW27.rod
VCID: 41DB888FA10D204291C-8014 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:| 5H0-907-383.clb
Part No SW: 5H2 907 383 D HW: 5H2 907 383
Component: Anhaenger H12 0204
Serial number: 000000000006422 Dataset Number: V03935395PE 0001
Coding: 0100000202001200
ASAM Dataset: EV_TrailFunctG3MPFMHella 001009
ROD: EV_TrailFunctG3MPFMHella_VW49.rod
VCID: 313BD84F11ADB0C261C-8064 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J928) Labels:* None
Part No SW: 5QS 907 556 A HW: 5WA 907 556 D
Component: TV eEntry H32 0675
Serial number: FZ6ESP260324000 Dataset Number: V03935433SP 0001
Coding: 0203C0003F0D3080
ASAM Dataset: EV_CamSysTVFicosBL 001004
ROD: EV_CamSysTVFicosBL_VW41.rod
VCID: 5AE95FE32C9B939AF06-800E
Front peripheral camera slave:
Subsystem 1 - Part No SW: 5WA 980 546 E HW: 5WA 980 546 D
Component: R243 UmfKamSV H23 0070
Serial number: FCLMAR08032401052449
Peripheral camera slave: left:
Subsystem 2 - Part No SW: 5WA 980 546 E HW: 5WA 980 546 D
Component: R244 UmfKamSL H23 0070
Serial number: FCLMAR0502240109DA10
Right peripheral camera slave:
Subsystem 3 - Part No SW: 5WA 980 546 E HW: 5WA 980 546 D
Component: R245 UmfKamSR H23 0070
Serial number: FCLMAR0202240106C874
No fault code found.
-------------------------------------------------------------------------------
Address 75: Telematics (J949) Labels:* None
Part No SW: 571 035 284 B HW: 571 035 284
Component: OCUMQBW2023_H H07 0626
Serial number: 0000000401VINV0 Dataset Number: V03935444PB 0001
Coding: 02010601000000210000010113002607101112111012111110
ASAM Dataset: EV_OCUMWB2023 001066
ROD: EV_OCUMWB2023_VW42.rod
VCID: 15730CDF85057CE21D4-8040 SFD+SFD2 [x]
2 Faults Found:
7259 - Function Restricted due to Missing Message(s)
U1111 00 [01101101] - -
[Road Experience Management (0x5B) - Funktionseinschränkung wegen Kommunikationfehler - BapErr_RetryNotSuccessful]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 30
Reset counter: 40
Mileage: 22742 km
Date: 2026.05.30
Time: 09:04:17
Voltage terminal 30: 13.0 V
7265 - Function Restricted due to Missing Message(s)
U1111 00 [01101100] - -
[Car2X_0x61 - Funktionseinschränkung wegen Kommunikationfehler - BapErr_RetryNotSuccessful]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 3
Reset counter: 40
Mileage: 24579 km
Date: 2026.07.16
Time: 10:05:58
Voltage terminal 30: 13.0 V
-------------------------------------------------------------------------------
Address 82: Head Up Display (J898) Labels:* None
Part No SW: 571 919 608 A HW: 571 919 608
Component: HeadupDisplay H09 2417
Dataset Number: V03935383ZD 0001
Coding: 5700E000
ASAM Dataset: EV_HUDMQBwBL 002013
ROD: EV_HUDMQBwBL_002.rod
VCID: 1F1F2EF7773936B2C78-804A SFD+SFD2 [x]
3 Faults Found:
13894400 - Function limitation due to excessive temperature
B1050 00 [00001000] - -
[ECU_function_restriction_overtemperature]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 9
Mileage: 23842 km
Date: 2026.06.24
Time: 15:16:13
16776974 - Databus
U1121 00 [00101000] - Missing Message
[PSD_06_communication_error_can_error_timeout]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
16777040 - Function Restricted due to Interrupted Communications
U1110 00 [00101111] - -
[Navigation_0x32_timing_error_bap_timeout_heartbeat]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 190
Reset counter: 40
Mileage: 22717 km
Date: 2026.05.26
Time: 10:33:03
-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels:* None
Part No SW: 3WA 907 217 C HW: 3WA 907 217
Component: MFK120 H18 1423
Dataset Number: V03935484GU 0001
Coding: 0005000000000000000000BAF940C00400000000206580000000FE00000038FE43F040004000000000800000000000000000000000000000000000000000000000000000
ASAM Dataset: EV_MFK120MAGNAMQBWB 001024
ROD: EV_MFK120MAGNAMQBWB_001.rod
VCID: 48CD95AB8237110A562-801C SFD+SFD2 [x]
10 Faults Found:
3145845 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_03_Status]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 11
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
3145846 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_04_Guete]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
3145847 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_08_Zeit]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
3145848 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_10]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
1048909 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_01_Ortung]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
1048910 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_02_Geschw]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
1048913 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_05_Position]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
1048914 - Databus
U1121 00 [00100000] - Missing Message
[TIMEOUT_POS_GNSS_07_Sat_konf]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 22
Mileage: 24838 km
Date: 2026.07.22
Time: 20:12:22
3146032 - Databus
U1123 00 [00101110] - Received Error Message
[NR_RL_Blindness_ERROR]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 60
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:47:09
3146033 - Databus
U1123 00 [00101111] - Received Error Message
[NR_RS_Blindness_ERROR]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 80
Reset counter: 40
Mileage: 25097 km
Date: 2026.08.05
Time: 08:47:09
-------------------------------------------------------------------------------
Address BB: Door Rear Drv (J388) Labels:* Redir Fail!
Part No SW: 3WA 959 395 A HW: 3WA 959 395
Component: TSG HFS 001 0222
Serial number: YG007XBP02065 Dataset Number: V03935447DU 0001
Coding: 000801200100008100003020
ASAM Dataset: EV_DCU4RearDriveMAXHKLO 001016
ROD: EV_DCU4RearDriveMAXHBRO_VW42.rod
VCID: 54F5B1DB4E7FA5EA2AA-8000 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address BC: Door Rear Pass (J389) Labels:* Redir Fail!
Part No SW: 3WA 959 394 A HW: 3WA 959 394
Component: TSG HBFS 001 0222
Serial number: YG007XBP0380C Dataset Number: V03935447DT 0001
Coding: 000801200100008100003020
ASAM Dataset: EV_DCU4RearPasseMAXHKLO 001016
ROD: EV_DCU4RearPasseMAXHBRO_VW42.rod
VCID: 53F7B2C74B71A2D2330-8006 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address C4: DC/DC Converter (A7) Labels: 5QS-959-663.clb
Part No SW: 5QS 959 663 D HW: 5QS 959 663 B
Component: DCDC48VGen2.5 H19 0312
Serial number: 202405200000000 Dataset Number: V03935415XC 0001
ASAM Dataset: EV_DCDC48VHellaAU336 001005
ROD: EV_DCDC48VHellaAU336_001_AU38P.rod
VCID: 639762071BD15252A30-8036
No fault code found.
-------------------------------------------------------------------------------
Address CC: Starter-Generator (C29) Labels: None
Part No SW: 05E 903 019 K HW: 05E 903 019 F
Component: 48BSG_2P0_H H12 0026
Serial number: 917320403190022 Dataset Number: X150A000
ASAM Dataset: EV_SGCM624323105E903019K 005001
ROD: EV_SGCM624323105E903019K.rod
VCID: 2B07CA273381DA125B0-807E SFD [x]
No fault code found.
-------------------------------------------------------------------------------
Address D1: Disp/Oper. unit Front Center (E946) Labels: None
Part No SW: 5QS 927 531 A HW: 5QS 927 531 A
Component: E946 FES 2.0 H08 0028
Dataset Number: V03935404BN 0001
ASAM Dataset: EV_RotarKnobMiddlBCS38xPA 002045
ROD: EV_RotarKnobMiddlBCS38xPA.rod
VCID: 55F34CDF4585BCE2DD4-8000 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AG HW: 992 941 571 A
Component: LED1L H17 9104
ASAM Dataset: EV_LLPGen3LKEBODPO68X 002003
ROD: EV_LLPGen3LKEBODPO68X_002_VW27.rod
VCID: 678F7617EFE93E727F8-8032
1 Fault Found:
151552 - Control Module for Projector in Matrix Headlights
C13CA 92 [00101000] - Performance or Incorrect Operation
[SSL - global electrical malfunction]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 12
Mileage: 24838 km
Date: 2026.07.23
Time: 10:47:56
-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AG HW: 992 941 571 A
Component: LED1R H17 9104
Dataset Number: V03935430AA 0001
ASAM Dataset: EV_LLPGen3RKEBODPO68X 002003
ROD: EV_LLPGen3RKEBODPO68X_002_VW27.rod
VCID: 678F7617EFE93E727F8-8032
No fault code found.
-------------------------------------------------------------------------------
Address D8: LED HeadL. Pwr Left (J1233) Labels: None
Part No SW: 9Y0 941 597 BA HW: 9Y0 941 597 B
Component: SSL_L H07 0020
Serial number: 10150036214419 Dataset Number: V03935459SK 0001
ASAM Dataset: EV_MatriLightLHella 001010
ROD: EV_MatriLightLHella_VW42.rod
VCID: 084D55ABC2B7D10A962-805C SFD+SFD2 [x]
3 Faults Found:
15362094 - Reset of Control Module
B16CE 00 [00100000] - -
[software ECU reset]
Intermittent - Not Confirmed - Tested Since Memory Clear
15362098 - Video Cable
B125C F1 [00101000] - Implausible Message
[video in - GMSL CRC error]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Reset counter: 208
Mileage: 24838 km
Date: 2026.07.23
Time: 10:47:56
15362176 - Limp Mode
C10CA 00 [00101000] - -
[FailSafe active (Prefield + SSL)]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 208
Mileage: 24838 km
Date: 2026.07.23
Time: 10:47:56
-------------------------------------------------------------------------------
Address D9: LED HeadL. Pwr Right (J1232) Labels: None
Part No SW: 9Y0 941 597 BA HW: 9Y0 941 597 B
Component: SSL_R H07 0020
Serial number: 10150036498871 Dataset Number: V03935459SP 0001
ASAM Dataset: EV_MatriLightRHella 001010
ROD: EV_MatriLightRHella_VW41.rod
VCID: 084D55ABC2B7D10A962-805C SFD+SFD2 [x]
1 Fault Found:
15362094 - Reset of Control Module
B16CE 00 [00100000] - -
[software ECU reset]
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address DE: Charger 1 for mobile dev (J0000) Labels:* None
Part No SW: 57H 035 502 B HW: 57H 035 502
Component: COUPLING BOX 004 0270
Serial number: 324000000000016 Dataset Number: V03935406HY 0001
Coding: 800000
ASAM Dataset: EV_DualCouplBoxSK336 001006
ROD: EV_DualCouplBoxSK336.rod
VCID: 25133C1F5565EC628D4-8070 SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 8107: Antenna (J666) Labels:* None
Part No SW: 5QS 035 741 A HW: 5QS 035 741
Component: TrxModulHigh H04 0610
Dataset Number: V03935432UL 0001
Coding: 02336001010100010000010000010100000000
ASAM Dataset: EV_TrxMLGEMQBWBL 001026
ROD: EV_TrxMLGEMQBWBL_VW49.rod
VCID: 4EC1A3B36053CF3A1CE-801A SFD+SFD2 [x]
3 Faults Found:
0080 - Databus
U1121 00 [01100000] - Missing Message
[Ethernet-Datenbus - fehlende Botschaft- Systeminfo_01]
Intermittent - Not Confirmed - Tested Since Memory Clear
0081 - Databus
U1121 00 [01100000] - Missing Message
[Ethernet-Datenbus - fehlende Botschaft- POS_GNSS_05_Position]
Intermittent - Not Confirmed - Tested Since Memory Clear
0083 - Ethernet Databus
U1541 00 [01100000] - Missing Message from Information Electronics
[Ethernet-Datenbus - fehlende Botschaft von der Informationselektronik]
Intermittent - Not Confirmed - Tested Since Memory Clear
-------------------------------------------------------------------------------
Address 8109: Close Rge Radar 1 (J1088) Labels:* None
Part No SW: 3WA 907 541 J HW: 95C 907 541
Component: Nanoradar 1 H08 0138
Serial number: 14520044305084 Dataset Number: V03935467NK 0001
Coding: 59955A1529C405000000
ASAM Dataset: EV_NR1HELLAVW38X 001112
ROD: EV_NR1HELLAVW38X_001_VW38.rod
VCID: 4FFFBEB76759C632178-801A SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 810A: Close Rge Radar 2 (J1089) Labels:* None
Part No SW: 3WA 907 541 J HW: 95C 907 541
Component: Nanoradar 2 H08 0138
Serial number: 14520044305035 Dataset Number: V03935467NM 0001
Coding: 59955A1529C405000000
ASAM Dataset: EV_NR2HELLAVW38X 001112
ROD: EV_NR2HELLAVW38X_001_VW38.rod
VCID: 4FFFBEB76759C632178-801A SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 810B: Close Rge Radar 3 (J770) Labels:* None
Part No SW: 3WA 907 541 J HW: 95C 907 541
Component: Nanoradar 3 H08 0138
Serial number: 14520044009673 Dataset Number: V03935467NN 0001
Coding: 59565A1529C405000000
ASAM Dataset: EV_NR3HELLAVW38X 001112
ROD: EV_NR3HELLAVW38X_001_VW38.rod
VCID: 4FFFBEB76759C632178-801A SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 810C: Close Rge Radar 4 (J769) Labels:* None
Part No SW: 3WA 907 541 J HW: 95C 907 541
Component: Nanoradar 4 H08 0138
Serial number: 14520043834480 Dataset Number: V03935467NQ 0001
Coding: 99696A1631C40F000000
ASAM Dataset: EV_NR4HELLAVW38X 001112
ROD: EV_NR4HELLAVW38X_001_VW38.rod
VCID: 4FFFBEB76759C632178-801A SFD+SFD2 [x]
No fault code found.
-------------------------------------------------------------------------------
Address 8117: Rear surroundings cam (J772) Labels:* None
Part No SW: 5R3 980 568 F HW: 1EA 980 568 B
Component: RV eSmart H20 0445
Serial number: FCLK20140324000 Dataset Number: V03935461HB 0001
Coding: 0203C400270D2080
ASAM Dataset: EV_AVCamerRearFicosBL 004029
ROD: EV_AVCamerRearFicosBL_004_VW49.rod
VCID: 44D5819BBE1F356ABAA-8010 SFD+SFD2 [x]
1 Fault Found:
9445394 - Image Processing
B1B71 06 [00100100] - Algorithm Failure
[Error in IP software]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 9
Reset counter: 40
Mileage: 24838 km
Date: 2026.07.22
Time: 20:13:53
-------------------------------------------------------------------------------
Address 81D0: Digit. Matrix Light (J1231) Labels:* None
Part No SW: 4KE 907 397 B HW: 4KE 907 399 A
Component: zDML_G2 H22 0410
Dataset Number: V03935445WU 0001
Coding: 0100020000000000
Shop #: WSC 131071 1023 2097151
ASAM Dataset: EV_DigitMatriLightVW336 003002
ROD: EV_DigitMatriLightVW336.rod
VCID: 49CB90AF993DE80249C-801C
2 Faults Found:
1333 - Databus
U1121 00 [00001000] - Missing Message
[eth message PSD_04 missing]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 6
Mileage: 25097 km
Date: 2026.08.03
Time: 20:29:14
1537 - Internal Fault
B200F F1 [00001000] - -
[SPI-communication to controllers failure]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 249
Mileage: 24777 km
Date: 2026.07.21
Time: 17:41:36
End----(Elapsed Time: 02:24, VBatt start/end: 12.0V/12.0V. VIgn 12.0V)-----
------------------------------66 Faults Found------------------------------It's a VW Tiguan and I got this car 2024 directly at the official delivery center for new Volkswagen vehicles in Wolfburg.
- Joined
- Jan 29, 2014
- Messages
- 5,271
- Reaction score
- 8,212
- Location
- Lansdale, PA, USA
- VCDS Serial number
- HC800000
You didn't post the SFDLog.csv, but the new version of VCDS should have unlocked the filter at the same time you did the SFD unlock. I think what you're trying to do in the screenshot above is to turn it back on manually, but that's the wrong channel for that, and reactivating the filter is probably not what you intended to do. The idea with 26.7.2 and newer is to unlock SFD in 19 and not have to worry about the filter, since VCDS should have given you a notice it already de-activated it for you.
here is the sfdlog
Code:
,,,Start SFD Session,Tuesday,04,August,2026,08 47 28,H18-001742,SFD session start successful
WVGZZZCT6RW026695,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08 52 45,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW026695,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08 52 52,H18-001742,SFD unlock token retrieval fail, error TR-1
WVGZZZCT6RW026695,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08 56 20,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW026695,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08 56 22,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW026695,Address 0x19,5QS 907 530 B,Online SFD,Tuesday,04,August,2026,08 56 22,H18-001742,SFD unlock token transmit fail, error TT-30
,,,Start SFD Session,Wednesday,05,August,2026,08 48 56,H18-001742,SFD session start successful
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 43,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 46,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 46,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 47,H18-001742,Unlock_successful
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 49,H18-001742,Diagnostic filter deactivated
WVGZZZCT6RW0xxxx5,Address 0x5F,572 035 816 B,Online SFD,Wednesday,05,August,2026,08 56 53,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x5F,572 035 816 B,Online SFD,Wednesday,05,August,2026,08 56 55,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW0xxxx5,Address 0x5F,572 035 816 B,Online SFD,Wednesday,05,August,2026,08 56 55,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x5F,572 035 816 B,Online SFD,Wednesday,05,August,2026,08 56 57,H18-001742,Unlock_successful
WVGZZZCT6RW0xxxx5,Address 0x17,571 920 340 A,Online SFD,Wednesday,05,August,2026,09 6 04,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x17,571 920 340 A,Online SFD,Wednesday,05,August,2026,09 6 07,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW0xxxx5,Address 0x17,571 920 340 A,Online SFD,Wednesday,05,August,2026,09 6 07,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x17,571 920 340 A,Online SFD,Wednesday,05,August,2026,09 6 08,H18-001742,Unlock_successful
,,,Start SFD Session,Wednesday,05,August,2026,09 20 24,H18-001742,SFD session start successful
WVGZZZCT6RW0xxxx5,Address 0x08,3WA 907 007 F,Online SFD,Wednesday,05,August,2026,09 20 53,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x08,3WA 907 007 F,Online SFD,Wednesday,05,August,2026,09 20 55,H18-001742,SFD unlock token retrieval success, 532 bytes
WVGZZZCT6RW0xxxx5,Address 0x08,3WA 907 007 F,Online SFD,Wednesday,05,August,2026,09 20 55,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x08,3WA 907 007 F,Online SFD,Wednesday,05,August,2026,09 20 57,H18-001742,Unlock_successful
WVGZZZCT6RW0xxxx5,Address 0x82,571 919 608 A,Online SFD,Wednesday,05,August,2026,09 23 58,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x82,571 919 608 A,Online SFD,Wednesday,05,August,2026,09 24 00,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW0xxxx5,Address 0x82,571 919 608 A,Online SFD,Wednesday,05,August,2026,09 24 00,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x82,571 919 608 A,Online SFD,Wednesday,05,August,2026,09 24 01,H18-001742,Unlock_successful
WVGZZZCT6RW0xxxx5,Address 0x42,3WA 959 593 A,river, Online SFD,Wednesday,05,August,2026,09 28 22,H18-001742,SFD challenge retrieval success, 583 bytes
WVGZZZCT6RW0xxxx5,Address 0x42,3WA 959 593 A,river, Online SFD,Wednesday,05,August,2026,09 28 28,H18-001742,SFD unlock token retrieval success, 852 bytes
WVGZZZCT6RW0xxxx5,Address 0x42,3WA 959 593 A,river, Online SFD,Wednesday,05,August,2026,09 28 28,H18-001742,SFD unlock token transmitted to controller
WVGZZZCT6RW0xxxx5,Address 0x42,3WA 959 593 A,river, Online SFD,Wednesday,05,August,2026,09 28 30,H18-001742,Unlock_successful- Joined
- Jan 29, 2014
- Messages
- 5,271
- Reaction score
- 8,212
- Location
- Lansdale, PA, USA
- VCDS Serial number
- HC800000
Code:
WVGZZZCT6RW0xxxx5,Address 0x19,5QS 907 530 B,Online SFD,Wednesday,05,August,2026,08 49 49,H18-001742,Diagnostic filter deactivated
