VW Polo 2020 BCM 2Q0 937 089 B (2Q0937089B) Wiring pinouts

[Termina80r]

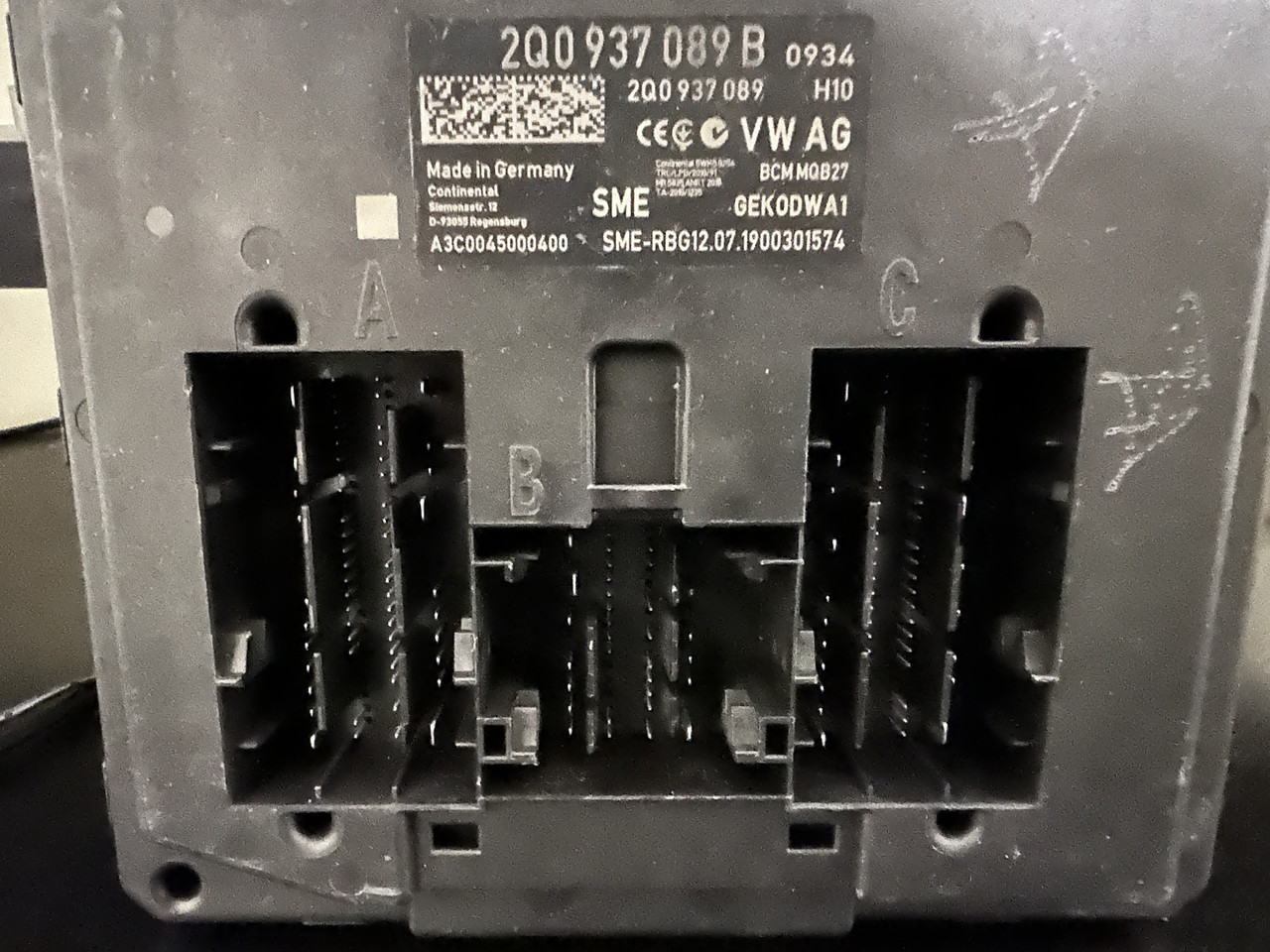

Would anyone have a wiring pinout for VW PQ27 Continental 2Q0 937 089 B BCM?

Im trying to put this BCM on the bench using a godiag connecting box and need to know the ground, power pinouts as well as can low and high connections

At present im thinking

T73a - pin63 - ground
T73c - pin63 - permanent +12v
T73c - pin42 - CAN high
T73c - pin43 - CAN low
T73c - pin57 - Ignition +12v

Tried searching various online articles without much joy finding this specific BCM



[DrPeter]

Hello...

erWin knows....

Volkswagen AG erWin Online

volkswagen.erwin-store.com

Also, post up an Auto-Scan, thank you...


drpeter



[Termina80r]

Found them on Erwin - thanks - CAN L/H incorrect originally so good job got correct pins now - all powered up on bench and can read no problems

T73a (labelled a on bcm) - pin63 - ground
T73b (labelled c on bcm) - pin63 - permanent +12v
T73b (labelled c on bcm) - pin46 - CAN high
T73b (labelled c on bcm) - pin47 - CAN low
T73b (labelled c on bcm) - pin57 - Ignition +12v

Cannot post auto-scan as its only the BCM im reading at present
