Vcds fuel pressure ( KPA rel )

[senna1]

Old full scan, ALL Repaired now, My question is on the attached log what does the Fuel pressure
(kpa Rel) IDE00589 Fuel pressure 32220 kPa rel, stand for its meaning, compared to fuel pressure
is it to do with IDE01378 Fuel high pressure: control deviation difference.

Wednesday,26,March,2025,13:40:40:51242
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 24.7.1.0 (x64)  HEX-NET2 CB: 0.4660.5
Data version: 20240919 DS356.3
www.Ross-Tech.com


VIN: WV1ZZZ2KZDX080742   License Plate: FULL SCAN WED
Mileage: 258470km-160605mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 2K-VN35 (7N0)
Scan: 01 03 08 09 10 15 16 17 19 25 37 42 44 46 52 56 61

VIN: WV1ZZZ2KZDX080742   Mileage: 258470km-160605miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CFHC)       Labels:. 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 DD    HW: 03L 907 309 AE
   Component: R4 2.0l TDI   H28 9979
   Revision: 41H28---    Serial number: 00000000000000 CVN: 74A619D6
   Coding: 00190012042501080000
   Shop #: WSC 01286 386 08256
   ASAM Dataset: EV_ECM20TDI01103L906018DD 003010
   ROD: EV_ECM20TDI01103L906018DD.rod
   VCID: 6FB0BC5697118ED2B61-803A
   VINID: 9E606AAAA09BA94A002001C408422D2B3B

No fault code found.
Readiness: 0 0 0 0 X

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 BL    HW: 1K0 907 379 BL
   Component: ESP MK60EC1   H31 0152
   Revision: 00H31001
   Coding: 433C600D092A03FAC21206E8901BC092310000
   Shop #: WSC 35110 377 00146
   VCID: 7DAC961ECDFDEC4234D-8028

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 3C8-907-336.clb
   Part No SW: 7N0 907 426 BN    HW: 7N0 907 426 BN
   Component: AC Manuell    H20 0505
   Revision: 00001018
   Coding: 0010004003
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ACManueBHBVW36X A01010
   ROD: EV_ACManueBHBVW36X_VW32.rod
   VCID: 0154EAEEB18588A2505-8054

2 Faults Found:
10489856 - No Basic Setting
          B2010 00 [00001001] - -
          [Grundeinstellung - nicht durchgeführt]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 26

9481200 - Refrigerant Pressure
          B10AB F0 [00001001] - Too Low
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 26
                    Mileage: 258471 km
                    Date: 2025.03.26.
                    Time: 00:24:56


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 1K0-937-08x-09.clb
   Part No SW: 5K0 937 085 R    HW: 5K0 937 085 R
   Component: BCM PQ35 B+   021 0068
   Revision: BB021001
   Coding: 411A58328025186A08080082900000240301728842028060648087000041
   Shop #: WSC 35110 377 00146
   VCID: 42D625E2F48353BA09F-8016

   Subsystem 1 - Part No: 1T2 955 119 A  Labels: 1KX-955-119.CLB
   Component: Wischer 28111  26  0512
   Coding: 009795

1 Fault Found:
00907 - Intervention load Management
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 26
                    Mileage: 258471 km
                    Time Indication: 0
                    Date: 2019.08.17.
                    Time: 01:23:04

             Freeze Frame:
                        Term 15 On
                    Voltage: 11.40 V
                        ON
                        ON
                        ON
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 1Q0-919-475.clb
   Part No SW: 2K0 919 475     HW: 1Q0 919 475
   Component: PARKHILFE 4K  H03 0004
   Revision: --------    Serial number: 32961233502889
   Coding: 108001
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_EPHVA14VN3370000 001006
   ROD: EV_EPHVA14VN3370000.rod
   VCID: 70B2BF2A8A2F912AAFB-8024

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
   Component: VW10Airbag02B H07 0013
   Revision: --------    Serial number: 003HL00F7RSW Dataset Number: 2KC003v____ 0260
   Coding: 000000000000000000000000000000003242
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 353C4E3EB5CDF402BCD-8060

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels:| 5K0-953-569.clb
   Part No SW: 1K5 953 507 T    HW: 5K0 953 549 B
   Component: Lenks.Modul   008 0080
   Revision: --------    Serial number:  90422LAP000AR Dataset Number: 1K5953507T  D005
   Coding: 0882140000
   Shop #: WSC 00040 040 00014
   ASAM Dataset: EV_SMLSNGKUDS A05001
   ROD: EV_SMLSNGKUDS_A05.rod
   VCID: 42D625E2F40353BA09F-8016

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 5K0 959 542 C    HW: 5K0 959 542 C  Labels: 3C8-959-537.CLB
   Component: E221__MFL-TAS  H31 0037
   Serial number: 0997440
   Coding: 820000

2 Faults Found:
0516 - Databus
          U1121 00 [00001001] - Missing Message
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 6
                    Fault Frequency: 21
                    Reset counter: 26
                    Mileage: 258471 km
                    Date: 2025.03.26.
                    Time: 00:24:52

49675 - Control Circuit for Ignition Key Lock Solenoid
          B114A 13 [00001001] - Open Circuit
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 26
                    Mileage: 258471 km
                    Date: 2025.03.26.
                    Time: 00:24:52


-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 2K0 920 975 L    HW: 2K0 920 975 L
   Component: KOMBI         H06 0705
   Serial number: 00000000000000
   Coding: 481A01
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04716
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 3924420E99D51062585-806C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 AG    HW: 7N0 907 530 AG
   Component: J533  Gateway H53 1634
   Revision:   H53       Serial number: 161112F1000112
   Coding: 357401
   Shop #: WSC 35110 377 00146
   VCID: 75BC8E3EF5CDB4027CD-8020

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H06 0705
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03709
   ROD: EV_Immo_UDS_VDD_RM09_VW23.rod
   VCID: 6A86AD42ACF36BFAE1F-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J794)       Labels:| 1K0-035-27x-37.clb
   Part No SW: 3C8 035 279 A    HW: 3C8 035 279 A
   Component: RNS315-EU   H59 0319
   Serial number: VWZAZ2M5558336
   Coding: 000002110200130000029002
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_RNS315EUV2UDS 001705
   ROD: EV_RNS315EUV2UDS_VW25.rod
   VCID: 2904924E6975A0E2285-807C

   Data carrier:
   Subsystem 1 - Part No: 3AA 919 866
   Component: EUR_W_V4  0050

2 Faults Found:
1048597 - Front Left Treble Speaker
          B1061 13 [00001001] - Open Circuit
          [tweeter front left open load]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 26
                    Mileage: 258471 km
                    Date: 2025.03.26.
                    Time: 00:24:54

1048632 - Antenna 1 for Radio
          B1119 13 [00001001] - Open Circuit
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 26
                    Mileage: 258471 km
                    Date: 2025.03.26.
                    Time: 00:24:53


-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 T    HW: 1T0 959 701 T
   Component: Tuer-SG         009 2110
   Coding: 0131632
   Shop #: WSC 35110 377 00146
   VCID: 48C237CADEBF79EAD7B-801C

1 Fault Found:
01706 - Switch for Mirror-Adjust (E43)
            008 - Implausible Signal

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1K0-909-14x-GEN3.clb
   Part No: 1K0 909 144 P
   Component: EPS_ZFLS Kl. 140    3305
   Revision: 00H22000
   Shop #: WSC 35110 377 00146
   VCID: 37204436A3410612AE1-8062

1 Fault Found:
03803 - Steering Angle Sensor for Steering Aid
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 258471 km
                    Time Indication: 0
                    Date: 2019.08.17.
                    Time: 00:24:52

             Freeze Frame:
                    Battery Volts: 11.8 V
                        DD
                    Temperature: 19.0°C
                    Count: 2
                    Steering Angle: 0.00°
                    Count: 0
                        SteerAng n.Init


-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 R    HW: 1T0 959 702 R
   Component: Tuer-SG         009 2110
   Coding: 0131632
   Shop #: WSC 35110 377 00146
   VCID: 47C034F6D3A17692DE1-8012

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7N0 907 534     HW: 7N0 907 530 AG
   Component: Batt.regelung H53 1634
   Serial number: 161112F1000112
   Coding: 030F1859
   Shop #: WSC 35110 377 00146
   VCID: 71B4BA2E81A59822A05-8024

   Subsystem 1 - Part No SW: 1K0 915 181 H    HW: 1K0 915 181 A
   Component: J367-BDM  H07 0180
   Serial number: 00000000001490682998

No fault code found.

End----(Elapsed Time: 00:59, VBatt start/end: 11.4V/11.6V. VIgn 11.6V)-----

Wednesday,30,July,2025,20:12:18:51242
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 25.3.1.2 (x64)  HEX-NET2 CB: 0.4671.5
Data version: 20250604 DS365.0
www.Ross-Tech.com


VIN: WV1ZZZ2KZDX080742   License Plate:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


                Address 01: Engine  (03L 906 018 DD)

20:11:55
  IDE00188   Fuel high-pressure: actual value 317300 hPa
  IDE00201   High fuel pressure: specified value 320000 hPa

  IDE00405   Crankshaft speed (RPM) 828.5 /min

  IDE00589   Fuel pressure 25870 kPa rel

  IDE01378   Fuel high pressure: control deviation 300 hPa



[Dr Sheldon]

IDE00589 Fuel pressure 25870 kPa rel IDE01378

Fuel high pressure: control deviation 300 hPa

Usually you will see 2 values

Fuel Pressure (Actual) Which is measured by the Fuel Pressure Sensor

Then Fuel Pressure (Desired) Which is a calculation that the ECU makes.

The system will work to keep ACTUAL in line with DESIRED (or Target)


Control Deviation is the difference between Actual and Desired



[Dr Sheldon]

Just read this properly !!

ID
IDE00188 Fuel high-pressure: actual value 317300 hPa
IDE00201 High fuel pressure: specified value 320000 hPa

IDE00405 Crankshaft speed (RPM) 828.5 /min

IDE00589 Fuel pressure 25870 kPa rel

IDE01378 Fuel high pressure: control deviation 300 hPa

And my reply #2 above is of no help to you !!



[senna1]

Hi Sheldon , yes the fuel pressure specified and actual i know as std practice everyday as car tech,
But the
IDE00589 Fuel pressure 25870 kPa rel I've no reference for this,
thanks for looking.



[Boki Ar]

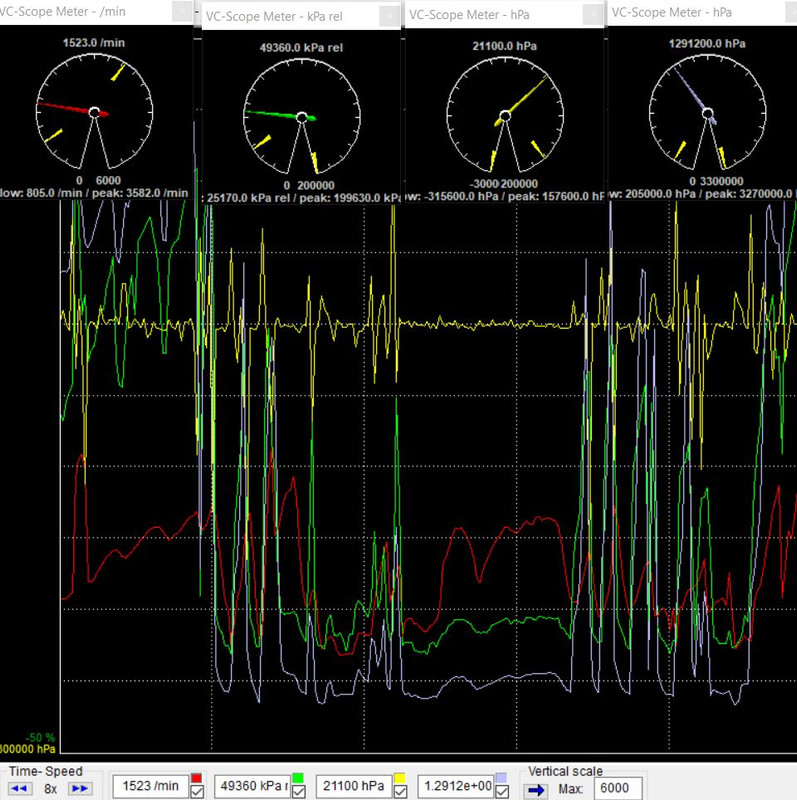

I find this interesting, too. From left to right, the gauges are:

Engine speed, Fuel pressure rel (relative or how) IDE00589, Fuel high pressure: control deviation IDE01378 and Fuel pressure regulator valve: specified value rail pressure IDE02228.



[PetrolDave]

Just get a blue box showing "Content not viewable in your region"?



[Boki Ar]

Here is link, please try:

Video disabled

This video is disabled because third-party cookies are not currently accepted. To view YouTube videos, please accept third-party cookies.

Accept third-party cookies

The same thing happened to me, so Uwe and someone else advised me about use another browser. If I can find that thread...



[senna1]

Here is link, please try:

Video disabled

This video is disabled because third-party cookies are not currently accepted. To view YouTube videos, please accept third-party cookies.

Accept third-party cookies

The same thing happened to me, so Uwe and someone else advised me about use another browser. If I can find that thread...

Content not available



[Boki Ar]

Sorry, I was contacted by @PetrolDave, I sent him a screenshot, I think he will post it here.

From my side I see the photo, no problem. I don't know what the problem is, but I will try another server.

Is it visible to everyone now, please?



[PetrolDave]

Just get a blue box showing "Content not viewable in your region"?

Looks like imgur has a problem with the new age verification requirements in the UK, please can I ask that ALL users no longer use imgur as those of us in the UK will no longer be able to view ANY images posted on imgur.



[Uwe]

Looks like imgur has a problem with the new age verification requirements in the UK, please can I ask that ALL users no longer use imgur as those of us in the UK will no longer be able to view ANY images posted on imgur.

Yep. I've added an UPDATE to the first post of the "How to post pictures" thread. There may be further updates coming.

-Uwe-



[senna1]

Sorry, I was contacted by @PetrolDave, I sent him a screenshot, I think he will post it here.

From my side I see the photo, no problem. I don't know what the problem is, but I will try another server.

Is it visible to everyone now, please?

Hi Thanks for your input, i have logged data here using just text, and also graph using a different software,, The point i'm trying to find out is What is REL, what does it stand for,, it is displayed as fuel pressure REL, so obviously it is to do with fuel pressure as its name suggests, but the data does not match the fuel pressure sensor values,, fuel pressure sensor at one end of the fuel rail, the other end the Regulator. What is REL, is it what the fuel pressure regulator is measuring ? which you would expect readings to fluctuate a lot as the regulator is working, and we have the fuel pressure sensor for that ?.



[Eric]

rel means relative to ambient pressure, as opposed to absolute (which is relative to a full vacuum). The air you're breathing is somewhere in the vicinity of 101 kPa absolute, yet to you it feels like no pressure at all, that's why it's 0 kPa relative. You convert from relative to absolute by adding the ambient pressure (101kPa at sea level in calm weather); when you're talking about fuel pressures in the 32000 kPa range, it all becomes kind of irrelevant. It is however very important for intake pressures, which are often measured in kPa rel as well.



[senna1]

rel means relative to ambient pressure, as opposed to absolute (which is relative to a full vacuum). The air you're breathing is somewhere in the vicinity of 101 kPa absolute, yet to you it feels like no pressure at all, that's why it's 0 kPa relative. You convert from relative to absolute by adding the ambient pressure (101kPa at sea level in calm weather); when you're talking about fuel pressures in the 32000 kPa range, it all becomes kind of irrelevant. It is however very important for intake pressures, which are often measured in kPa rel as well.

Hi Thanks for the reply, it sounds similar turbo absolute and gauge pressure, i see 101 kpa approx 1000mbar at sea level. at this cranking speed and vacuum, can you explain the difference from measure fuel pressure specified and the Rel difference values equates to, to arrive at Rel 25870 Kpa with out me having a vacuum Gauge and Cranking speed, in theory

IDE00201 High fuel pressure: specified value 320000 hPa or kpa 32000

IDE00405 Crankshaft speed (RPM) 828.5 /min

IDE00589 Fuel pressure 25870 kPa rel



[Eric]

First, before I try to understand your question, explain to me what the cranking speed has to do with absolute vs relative



[senna1]

you mention vacuum obviously different at cranking speed,



[Eric]



[senna1]

looks like you just shit yourself under your own thoughts



[stefdds]

I thought Eric excused himself rather gracefully. (ie he commented on the topic and not the member/Op)



[senna1]

should of simplyfied it, instead of taking the piss, But finally everyone with vcds will know what Rel stands for, By my effects to get to the bottom of it, it should of been staight forward reply from Vcds, i had asked several times over a period of time, But here it is i have simplified it after research, easy once you know,

"REL" stands for Relative, so in this case, it is relative fuel pressure. as i said originally The name Fuel pressure REL is obviously to do with Fuel pressure ?

Relative fuel pressure is the difference in pressure between the fuel rail and the intake manifold
