I have a 2009 Touareg with the 3.0 TDI engine, and it has an adblue "death countdown" that will not reset that I am trying to fix.
I took it to the dealer, and they wanted to replace the rear NOx sensor, but I suspect they just didn't warm the engine up enough, as the sensor is OEM and under 2 years old, so I brought back the car to diagnose and fix on my own. They told me they were seeing a reading from the front NOx sensor, but not the rear one.

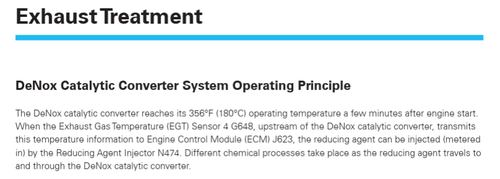

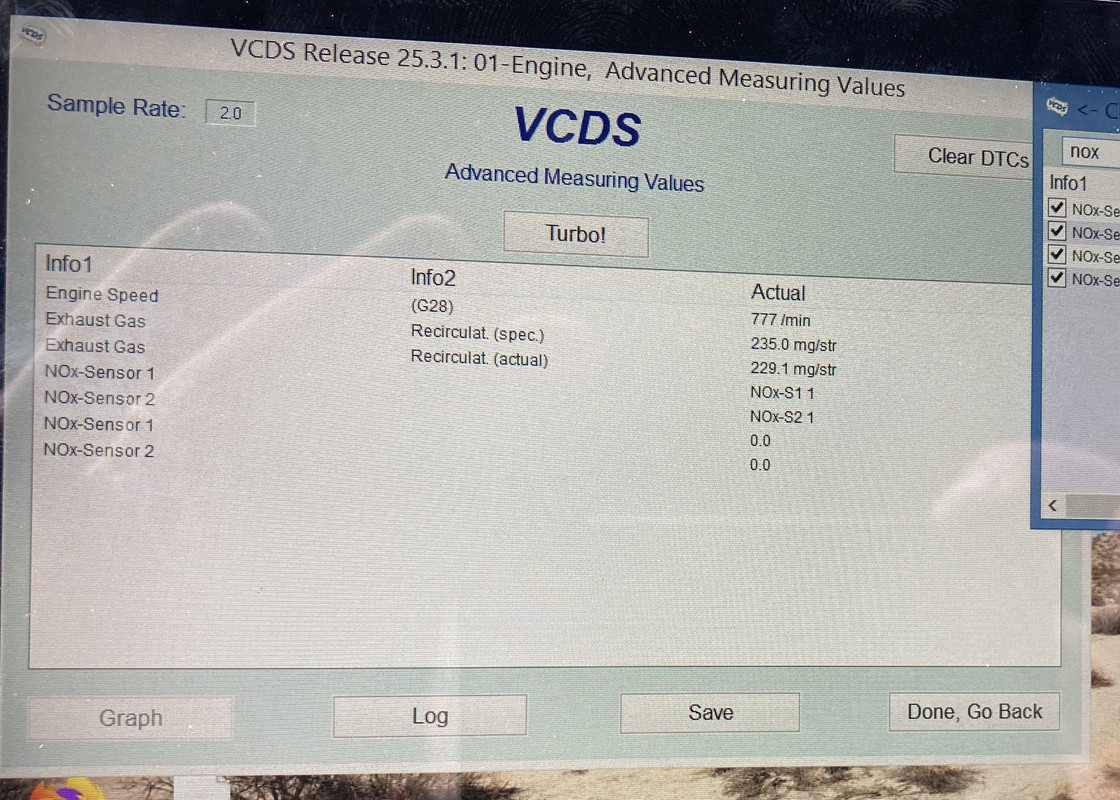

However, I cannot seem to read either sensor with VCDS. There are 4 channels in "Advanced Measuring Values" marked as NOx sensors (129-3, 129-4, 229-3, and 229-4) and they always read "NOX-S1 1", "NOX-S2 1", 0.0, and 0.0 respectively even after driving 20 minutes on the freeway to warm them up.
I suspect that there aren't correct maps for this vehicle for these channels, as there are a huge number of measuring block outputs that obviously represent various sensors, but are unlabled in the system when I page through them.
Any idea how to figure out where to read the NOx sensors on this car? There is a lot of info out there, but it almost all seems to apply only to later UDS T3 Touaregs.
I have attached here a VCDS autoscan:
If desired, I can go through everything else I have done to diagnose this issue (or see link here at ClubTouareg), but I have confirmed that the adblue injector output and pressure are correct, the injector is clean and sprays well, the output test resulted in 26ml and 4.9 bar, the tank is full with new DEF, and the fill level is set. MVB 174.1 reads "100" - registering that the tank is full.
I took it to the dealer, and they wanted to replace the rear NOx sensor, but I suspect they just didn't warm the engine up enough, as the sensor is OEM and under 2 years old, so I brought back the car to diagnose and fix on my own. They told me they were seeing a reading from the front NOx sensor, but not the rear one.
However, I cannot seem to read either sensor with VCDS. There are 4 channels in "Advanced Measuring Values" marked as NOx sensors (129-3, 129-4, 229-3, and 229-4) and they always read "NOX-S1 1", "NOX-S2 1", 0.0, and 0.0 respectively even after driving 20 minutes on the freeway to warm them up.
I suspect that there aren't correct maps for this vehicle for these channels, as there are a huge number of measuring block outputs that obviously represent various sensors, but are unlabled in the system when I page through them.
Any idea how to figure out where to read the NOx sensors on this car? There is a lot of info out there, but it almost all seems to apply only to later UDS T3 Touaregs.
I have attached here a VCDS autoscan:
Code:
Wednesday,03,September,2025,21:19:14:65527
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 8.1 x86
VCDS Version: 25.3.1.2 HEX-V2 CB: 0.4671.4
Data version: 20250604 DS365.0
www.Ross-Tech.com
VIN: WVGFM77L09D037073 License Plate:
Mileage: 257990km-160307mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 7L (6N0)
Scan: 01 02 03 05 08 09 15 16 17 19 22 2E 37 46 47 55 56 65 68 69
6C 6D 6E 76 77
VIN: WVGFM77L09D037073 Mileage: 257990km-160307miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
68-Wiper Electr. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
6E-Ctrl Head Roof -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (CAT) Labels:. 059-907-401-CAT1.clb
Part No SW: 7L0 997 401 HW: 7L0 907 401 K
Component: 3.0TDI FSA G004AG 0010
Revision: 33H01--- Serial number: VWX3Z0I2847313
Coding: 0421002A590F0968
Shop #: WSC 83840 280 600584
VCID: 71BFDAE06DB6E5F2707-5184
VINID: 9E65D67471DC0095000C70070CEEDA8A26
2 Faults Found:

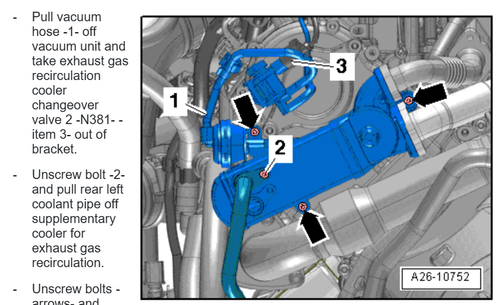

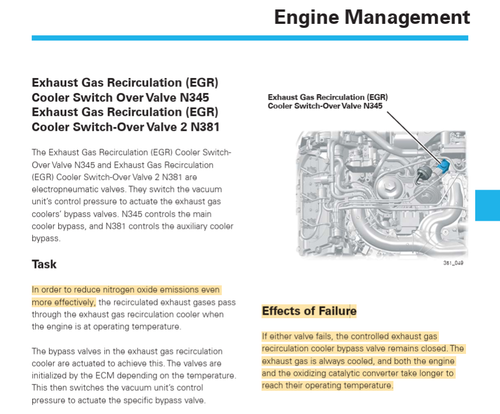

012558 - Bypass Valve for EGR Cooler 2
P310E - 000 - Implausible Signal - MIL ON
Freeze Frame:
Fault Status: 11100000
Fault Priority: 2
Fault Frequency: 2
Reset counter: 255
Mileage: 257817 km
Time Indication: 0
Date: 2025.08.27
Time: 07:59:38
Freeze Frame:
RPM: 1974 /min
Speed: 43.7 km/h
Inj. Quantity: 6.0 mg/str
Temperature: 318.6∞C
Temperature: 212.4∞C
Duty Cycle: 66.0 %
(no units): 56.0
008319 - Reductant Quality Performance
P207F - 000 - - MIL ON
Freeze Frame:
Fault Status: 11100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 257967 km
Time Indication: 0
Date: 2025.09.03
Time: 17:57:20
Freeze Frame:
RPM: 1428 /min
Speed: 71.7 km/h
Voltage: 14.21 V
Temperature: 318.0∞C
(no units): 0.00
(no units): 0.00
(no units): 1.02
Readiness: 1 2 0 0 0
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 09D-927-750.clb
Part No SW: 09D 927 750 HN HW: 09D 927 750 HN
Component: AL 750 6A 3403
Revision: 00H75000 Serial number:
Coding: 0004984
Shop #: WSC 41870 001 1048576
VCID: 015F8A205D16F572807-5160
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 7L0-907-379-MK25E1.clb
Part No SW: 7L0 907 379 P HW: 7L0 614 517 C
Component: ESP ALLRAD MK25E1 0304
Revision: 00H53001
Coding: 0004354
Shop #: WSC 31414 790 00001
VCID: 46D5593C34E8124AF55-8012
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. Labels: None
Part No SW: 7L0 909 135 C HW: 7L0 909 135 C
Component: Kessy 6850
Revision: 00H22072 Serial number: VWX3Z0I2847313
Coding: 0000232
Shop #: WSC 31414 790 00001
VCID: 313F1AE0AD66A5F2307-8064
Subsystem 1 - Part No: XXXXXXXXXXX
Component: ELV XXXX
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: 7L6-907-040.clb
Part No: 7L6 907 040 AL
Component: CLIMAtronic R/L 4537
Coding: 0023030
Shop #: WSC 31414 790 00001
VCID: 7AADFDCC3090A6AAC1D-802E
1 Fault Found:
02101 - Side Vent Motor (V262)
000 - -
-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels:. 7Lx-937-049-V2.clb
Part No SW: 7L6 937 049 AF HW: 7L6 937 049 AF
Component: J519 2004
Revision: -0004--- Serial number: --------------
Coding: 220008002F00BC000000000000000000
Shop #: WSC 31414 790 00001
VCID: 00598F24564CFC7A8F9-8054
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags Labels: 7L0-959-655.lbl
Part No SW: 7L0 959 655 HW: 7L0 959 655
Component: J234__3N VW8T 0250
Revision: 92012025 Serial number: 0039P0078L0U
Coding: 0013134
Shop #: WSC 31414 790 00001
VCID: 7AADFDCC30C0A6AAC1D-5184
Subsystem 1 - Part No: 7L0 959 339 F
Component: BF-Gewichtsens. 007 0010
Subsystem 2 - Serial number: 3VJ9M
Subsystem 3 - Serial number: 0001.01.000000700000000000ˇ
Subsystem 4 - Serial number: 000000ˇ
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 7L6-953-549.lbl
Part No: 7L6 953 549 F
Component: J527 3601
Coding: 0010011
Shop #: WSC 31414 790 00001
VCID: 42DD452C18C02E6AD9D-8016
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments Labels: 7L6-920-xxx-7L6.lbl
Part No SW: 7L6 920 990 P HW: 7L6 920 990 P
Component: J285 KOMBI-INST. 9733
Revision: KHH06V42
Coding: 0007201
Shop #: WSC 63055 003 1048576
VCID: 46D5593C34A8124AF55-8012
1 Fault Found:
00446 - Function Limitation due to Under-Voltage
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 6
Fault Frequency: 1
Reset counter: 8
Mileage: 257725 km
Time Indication: 0
Date: 2025.08.17
Time: 13:15:01
-------------------------------------------------------------------------------
Address 19: CAN Gateway Labels:. 6N0-909-901-7L.clb
Part No SW: 6N0 909 901 HW: 7L6 920 990 P
Component: J533 GW-K-CAN TP20 9733
Coding: 77E2F7DBCB846002
Shop #: WSC 63055 003 1048576
VCID: 70B9DFE466ACECFA7F9-8024
No fault code found.
-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No: 0AD 927 755 BG
Component: TRANSFERCASE 0126
Shop #: WSC 00000 000 00000
VCID: 015F8A205D16F572807-5160
No fault code found.
-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl
Part No SW: 5N0 035 342 B HW: 5N0 035 342 B
Component: SG EXT.PLAYER H13 0084
Revision: A1001003 Serial number: 7667366993
Coding: 020000
Shop #: WSC 31414 790 00001
VCID: 2615F9BC98E8F24AD55-8072
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels:. 1T0-035-680.clb
Part No SW: 3C0 035 684 K HW: 3C0 035 684 H
Component: RNS-MID H02 4366
Revision: AB001001 Serial number: VWZ6Z7M8207133
Coding: 00010000010000200000
Shop #: WSC 12345 123 12345
VCID: 2B030888830ACF220AB-807E
Subsystem 1 - Part No: 7L6 919 859
Component: NAR V12 8534
4 Faults Found:
00821 - Antenna 2 for Radio (R93)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 5
Fault Frequency: 254
Reset counter: 230
Mileage: 239736 km
Time Indication: 0
Date: 2024.03.12
Time: 02:28:05
02635 - Tuner Not Enabled/Activated
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 7
Fault Frequency: 254
Reset counter: 230
Mileage: 239736 km
Time Indication: 0
Date: 2024.03.12
Time: 03:18:44
01550 - Signal for Reverse Gear
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 5
Fault Frequency: 1
Reset counter: 90
Mileage: 240369 km
Time Indication: 0
Date: 2024.07.19
Time: 17:07:17
00862 - Antenna for GPS Navigation (R50/R52)
007 - Short to Ground - Intermittent
Freeze Frame:
Fault Status: 00100111
Fault Priority: 5
Fault Frequency: 2
Reset counter: 14
Mileage: 253720 km
Time Indication: 0
Date: 2025.06.20
Time: 09:09:15
-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 7L0-959-933.clb
Part No: 7L6 959 933 A
Component: 4M HSG 0601
Coding: 0000085
Shop #: WSC 31414 790 00001
VCID: 40D94F24169C3C7ACF9-4B1E
Subsystem 1 - Part No: 7L0 959 701 M
Component: Tuersteuergeraet FS 6304
Subsystem 2 - Part No: 7L0 959 702 M
Component: Tuersteuergeraet BF 6304
Subsystem 3 - Part No: 7L0 959 703 C
Component: Tuersteuergeraet HL 0201
Subsystem 4 - Part No: 7L0 959 704 C
Component: Tuersteuergeraet HR 0201
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System Labels: 7Lx-035-4xx-47.lbl
Part No SW: 7L6 035 456 C HW: 7L6 035 456 C
Component: 08K Audioverst. 0001
Revision: 00001000 Serial number: 00000000214608
Shop #: WSC 00000 000 00000
VCID: 333310E8573A97E242B-8066
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range Labels: 7L6-907-357-A.lbl
Part No SW: 7L6 907 357 C HW: 7L6 907 357 C
Component: AFS-Steuergeraet 0136
Revision: 00H04000 Serial number:
Coding: 1290371
Shop #: WSC 31414 790 00001
VCID: 3B2338C87F2A5FA29AB-806E
Subsystem 1 - Part No: 7L6 941 329 B Labels: 3D0-941-329.CLB
Component: AFS-Lst.-Modul l 0004
Coding: 00000019
Subsystem 2 - Part No: 7L6 941 329 B Labels: 3D0-941-329.CLB
Component: AFS-Lst.-Modul r 0004
Coding: 00000019
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels:. 1T0-035-680.clb
Part No SW: 3C0 035 684 K HW: 3C0 035 684 H
Component: RNS-MID H02 4366
Revision: AB001001 Serial number: VWZ6Z7M8207133
Coding: 00010000010000200000
Shop #: WSC 12345 123 12345
VCID: 2B030888830ACF220AB-807E
Subsystem 1 - Part No: 7L6 919 859
Component: NAR V12 8534
4 Faults Found:
00821 - Antenna 2 for Radio (R93)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 5
Fault Frequency: 254
Reset counter: 230
Mileage: 239736 km
Time Indication: 0
Date: 2024.03.12
Time: 02:28:05
02635 - Tuner Not Enabled/Activated
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 7
Fault Frequency: 254
Reset counter: 230
Mileage: 239736 km
Time Indication: 0
Date: 2024.03.12
Time: 03:18:44
01550 - Signal for Reverse Gear
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 5
Fault Frequency: 1
Reset counter: 90
Mileage: 240369 km
Time Indication: 0
Date: 2024.07.19
Time: 17:07:17
00862 - Antenna for GPS Navigation (R50/R52)
007 - Short to Ground - Intermittent
Freeze Frame:
Fault Status: 00100111
Fault Priority: 5
Fault Frequency: 2
Reset counter: 14
Mileage: 253720 km
Time Indication: 0
Date: 2025.06.20
Time: 09:09:15
-------------------------------------------------------------------------------
Address 65: Tire Pressure Labels:. 7L6-907-273.lbl
Part No SW: 7L6 907 273 E HW: 7L6 907 273 E
Component: J0502 RDK 0006
Revision: 00004006 Serial number: 00000600012486
Coding: 0440008D8D0000000000000000
Shop #: WSC 31414 790 00001
VCID: 3A2D3DCC701066AA81D-806E
No fault code found.
-------------------------------------------------------------------------------
Address 68: Wiper Electr. Labels: 7L0-955-119-V2.clb
Part No: 7L6 955 119 B
Component: J400__ Front Wiper 5301
Coding: 0001397
Shop #: WSC 31414 790 00001
VCID: 392F22C075566DB2887-806C
Subsystem 2 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 190309 054 0402
Coding: 00208941
Shop #: WSC 31414
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer Labels: 7L0-907-383-1D2.lbl
Part No SW: 7L0 907 383 N HW: 7L0 907 383 N
Component: J345 Anhaenger 0080
Revision: 4A008002 Serial number: 00000117332719
Coding: 0016386
Shop #: WSC 00000 000 00000
VCID: 3FDB4CD86B324382B63-806A
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. Labels: 5N0-907-441.clb
Part No SW: 7L6 907 441 B HW: 7L6 907 441 B
Component: J772__Rearview 0033
Revision: 00H13000 Serial number: PA8 J920149
Coding: 0110001
Shop #: WSC 31414 790 00001
VCID: 343113F4523490DA5B1-8060
No fault code found.
-------------------------------------------------------------------------------
Address 6D: Trunk Elect. Labels: 7L6-959-107.clb
Part No SW: 7L6 959 107 B HW: 7L6 959 107 B
Component: J605 HECKKLAPPE 1310
Revision: --H05--- Serial number: --------044577
Coding: 0122110
Shop #: WSC 31414 790 00001
VCID: 3A2D3DCC701066AA81D-806E
No fault code found.
-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof Labels: None
Part No SW: 7L6 919 044 AD HW: 7L6 919 044 AD
Component: J702 Dachdisplay 0401
Revision: 1030006S Serial number: 00000000111596
Shop #: WSC 00000 000 00000
VCID: 79AFE2C035D6ADB2C87-802C
No fault code found.
-------------------------------------------------------------------------------
Address 76: Park Assist Labels: Redir Fail!
Part No: 7L0 919 283 F
Component: 0L Einparkhilfe 1108
Shop #: WSC 00000 000 00000
VCID: 392F22C075166DB2887-806C
No fault code found.
-------------------------------------------------------------------------------
Address 77: Telephone Labels: 5P0-862-335.lbl
Part No SW: 1Z0 035 729 D HW: 1Z0 035 729 D
Component: FSE_2P8x H35 0160
Revision: 00000000 Serial number: 00000005022402
Coding: 0012077
Shop #: WSC 31414 790 00001
VCID: 392F22C075566DB2887-806C
No fault code found.
End----------(Elapsed Time: 02:28, VBatt start/end: 12.5V/12.5V)-----------
------------------------------12 Faults Found------------------------------If desired, I can go through everything else I have done to diagnose this issue (or see link here at ClubTouareg), but I have confirmed that the adblue injector output and pressure are correct, the injector is clean and sprays well, the output test resulted in 26ml and 4.9 bar, the tank is full with new DEF, and the fill level is set. MVB 174.1 reads "100" - registering that the tank is full.
Last edited:
