2014 Q7 TDI AC Compressor not engaging

   #1
R

RobertV

Verified VCDS User
Verified
Joined
Apr 4, 2025
Messages
4
Reaction score
3
Location
Lithia, FL, USA
VCDS Serial number
C?ID=6764
Previous owner could smell R134 inside the car and local Audi dealership found the rear evaporator was bad. I confirmed it was bad when I replaced it with new o-rings. Had the system professionally recharged, system now holds pressure but the AC compressor will not engage. Would love to save a trip to the dealer.

Next steps?

TIA

Robert

Code:
Friday,04,April,2025,19:36:08:55868
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 25.3.0.4 (x64)  HEX-NET2 CB: 0.4660.5
Data version: 20250311 DS365.0
www.Ross-Tech.com


VIN: WA1WMAFE9ED007546   License Plate: Q7 TDI 2
Mileage: 285530km-177420mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: FE-AU56 (4F0)
Scan: 01 02 03 05 08 09 10 15 16 17 19 28 36 3C 42 46 47 4C 4F 52
          55 56 5F 62 6C 6D 6F 72

VIN: WA1WMAFE9ED007546   Mileage: 285530km-177420miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
08-Auto HVAC -- Status: Sporadic communication error 1000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: Sporadic communication error 1000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
28-HVAC, Rear -- Status: Malfunction 1010
36-Seat Mem. Drvr -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
4C-Tire Pressure II -- Status: Malfunction 0010
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
6F-Centr. Conv. II -- Status: Malfunction 0010
72-Door, Rear Right -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CNRB)       Labels:. 059-907-401-V2.clb
   Part No SW: 4L2 910 401 A    HW: 4L0 907 401 E
   Component: 3.0TDI FSA    X23 0012
   Revision: 54X23---    Serial number:                CVN: 79A4593238D3FF8238D3FF820E1FC39E
   Coding: 2A2A4012252600050000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_ECM30TDI0114L2910401A 001013
   ROD: EV_ECM30TDI0114L2910401A.rod
   VCID: 22168677944252DAB93-8076
   VINID: 9D1067751595255500007144189A56DCF1

2 Faults Found:
4484 - Coolant Thermostat Valve (N214)
          P0128 00 [01100000] - Temperature below Control Range
          Intermittent - Not Confirmed - Tested Since Memory Clear

5604 - Park/Neutral Switch Input Circuit
          P0850 00 [00100000] - Open or Short to Plus
          Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: 0 0 0 1 X

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217)       Labels:| 0C8-927-7XX-V1.clb
   Part No SW: 0C8 927 750 AQ    HW: 0C8 927 750 AQ
   Component: AL1000 AISIN  002 3399
   Serial number:                CVN: 0478EC02
   Coding: 001378
   Shop #: WSC 16035 006 1048576
   ASAM Dataset: EV_TCMAL991031 002115
   ROD: EV_TCMAL991031_002.rod
   VCID: 7BA89B135368C312DA5-802E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels:. 4L0-910-517-V2.clb
   Part No SW: 4L0 910 517 M    HW: 4L0 614 517 L
   Component: ESP ALLRAD MK25E1   0020
   Revision: 00H02001
   Coding: 0099441
   Shop #: WSC 31414 790 00001
   VCID: 343A702F3236CC6A5BF-8060

1 Fault Found:
01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:25:07

             Freeze Frame:
                    Count: 192
                    Count: 8517
                    Count: 297
                    Count: 49152


-------------------------------------------------------------------------------
Address 05: Acc/Start Auth.        Labels:. 4F0-910-852.clb
   Part No SW: 4F0 910 852 B    HW: 4F0 905 852 H
   Component: FBSAUDIC6 ELV   H08 0200
   Revision: 00H08000    Serial number: 10603702090871
   Coding: 0000135
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B89ECA5E2DC1-8070

   Subsystem 1 - Part No: 4F0 910 132 L
   Component: FBSAUDIC6 EZS   H04 0020

   Subsystem 2 - Part No: 4F0 910 335 B
   Component: FBSAUDIC6 KSG   H03 0020

2 Faults Found:
00191 - Passenger's Door Handle Touch Sensor (G416)
            007 - Short to Ground
             Freeze Frame:
                    Fault Status: 01110111
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285534 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:49:01

00193 - Rear Right Door Handle Touch Sensor (G418)
            007 - Short to Ground
             Freeze Frame:
                    Fault Status: 01110111
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285534 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:49:01


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 4L0-910-043.clb
   Part No SW: 4L0 910 043 D    HW: 4L0 820 043 AQ
   Component: KLIMA 4 ZONEN H15 0070
   Revision: 00---031    Serial number: 00000000396909
   Coding: 0304A036
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B85ECA5E2DC1-8070

   Subsystem 1 - Part No SW: 8K0 959 772 F    HW: 8K0 959 772
   Component: SLR-B8  H06 0007
   Serial number:           0074857840
   Coding: 070000

   Subsystem 2 - Part No SW: 8K0 959 772 F    HW: 8K0 959 772
   Component: SLR-B8  H06 0007
   Serial number:           0074858790
   Coding: 070000

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels: 4F0-910-279.lbl
   Part No SW: 4F0 910 279 AG    HW: 4F0 907 279 C
   Component: ILM Fahrer      H31 0400
   Revision: 00000000    Serial number: 4F0907279
   Coding: 0133123
   Shop #: WSC 31414 790 00001
   VCID: 6E8EA2471C9AA6BA6DB-803A

   Subsystem 1 - Part No: 4L1 910 113   Labels: 1KX-955-119.CLB
   Component: Wischer AU716   H18 0110
   Coding: 00064792
   Shop #: WSC 31414

   Subsystem 2 - Part No: 8K0 910 557   Labels: 8K0-955-559.CLB
   Component: REGENLICHTSENSORH04 0003
   Coding: 00150059
   Shop #: WSC 31414

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 4L0-919-475-7X2.clb
   Part No SW: 4L0 919 475 A    HW: 4H0 919 475 C
   Component: PARKHILFE 8K  H07 0011
   Revision: 11001001    Serial number: 55931326600466
   Coding: 24011F
   Shop #: WSC 31414 790 00001
   ASAM Dataset: EV_EPHVA18AU7160000 001001
   ROD: EV_EPHVA18AU7160000.rod
   VCID: 343A702F3EB6CC6A5BF-8060

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 4L0-910-655.clb
   Part No SW: 4L0 910 655 A    HW: 4L0 959 655 B
   Component: 73 AIRBAG AUDI8RH44 0230
   Revision: 08H44000    Serial number: 0038QD0CCMS
   Coding: 0014131
   Shop #: WSC 31414 790 00001
   VCID: 2B086B53EF0893920A5-807E

   Subsystem 1 - Part No: 4L0 959 339 C
   Component: BF-Gewichtsens. H05 0040

   Subsystem 2 - Serial number: 6332QSME14411242.

   Subsystem 3 - Serial number: 6342QSME5E411058E

   Subsystem 4 - Serial number: 6352QSME5E371756P

   Subsystem 5 - Serial number: 6362QSME5E412E72R

   Subsystem 6 - Serial number: 63734SME1B3737583

   Subsystem 7 - Serial number: 63834SME1B37055C3

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 4F0-910-549.lbl
   Part No SW: 4F0 910 549 B    HW: 4F0 953 549 E
   Component: J0527               0830
   Revision: 00H09000    Serial number: 90026131880411
   Coding: 0012142
   Shop #: WSC 31414 790 00001
   VCID: 2802945FFEFEB88AE77-807C

   Subsystem 1 - Part No: XXXXXXXXXXX
   Component: E0221           H03 0040

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:. 4L0-920-KOM-V3.clb
   Part No SW: 4L0 920 985 Q    HW: 4L0 920 985 Q
   Component: KOMBIINSTR.   H35 0317
   Revision: 00000000    Serial number: VJ400T0AE
   Coding: 8BD664040900CF05020205
   Shop #: WSC 31414 790 00001
   VCID: 42D626F7748272DAD93-8016

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 4F0-907-468.clb
   Part No SW: 4F0 907 468 S    HW: 4F0 907 468 G
   Component: GW-BEM 5CAN-M H06 0058
   Revision: MB700037    Serial number: 3700M1391506D8
   Coding: 00C303
   Shop #: WSC 31414 790 00001
   VCID: 3FD02F0307701F32B6D-806A

   Subsystem 1 - Part No SW: 8K0 915 181 D    HW: 8K0 915 181 D
   Component: J367-BDM  H07 0125
   Serial number: 30250N37584121864764

3 Faults Found:
00466 - Control Module for Steering Column Electronics (J527)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:57:34

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 13
                    Bin. Bits:    11000
                    Time: 25.40 s

01320 - Control Module for Climatronic (J255)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:58:59

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 12
                    Bin. Bits:    11000
                    Time: 25.40 s

00565 - Rear A/C Control Head (Climatronic) (E265)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:59:16

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 12
                    Bin. Bits:    11000
                    Time: 25.40 s


-------------------------------------------------------------------------------
Address 28: HVAC, Rear        Labels: None
   Part No SW: 4L0 910 158     HW: 4L0 919 158 AE
   Component: KLIMABETAETIGUNGH06 0060
   Revision: 00---011    Serial number: 00000030304674
   Coding: 0000006
   Shop #: WSC 31414 790 00001
   VCID: 6882D45F3E7E788A277-803C

1 Fault Found:
02881 - Potentiometer for Air-Quantity Flap; Rear Right (G390)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:34:14

             Freeze Frame:
                    Voltage: 14.30 V
                    (no units): 195.0
                    (no units): 255.0


-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136)       Labels: None
   Part No SW: 4F0 959 760 D    HW: 4F0 959 760 D
   Component: MEM-FS        H08 0064
   Revision: AA000000    Serial number: 00000074890927
   Coding: 00581B00000011110000
   Shop #: WSC 20008 004 1048576
   VCID: 32367637C422C25A493-8066

No fault code found.

-------------------------------------------------------------------------------
Address 3C: Lane Change        Labels: None
   Part No SW: 4L0 910 566 C    HW: 4L0 907 566 B
   Component: J0769_SWA_MasterH02 0050
   Revision: 00H02000    Serial number: 6PZ 009 014-10
   Coding: 0000001
   Shop #: WSC 31414 790 00001
   VCID: 2E0E6247DC1AE6BA2DB-807A

   Subsystem 1 - Part No: 4L0 910 568 C
   Component: J0770_SWA_Slave_H02 0050

   Subsystem 2 - Serial number: 6PZ 009 014-30

   Subsystem 3 - Serial number: 5F20.09.1300H02000AMS14489ÿ

   Subsystem 4 - Serial number: S14489ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels:. 4F0-959-793.clb
   Part No SW: 4F0 959 793 T    HW: 8K0 959 793 M
   Component: TSG FA        H12 0362
   Revision:             Serial number: 0000077188376
   Coding: 011F57205E40440004
   Shop #: WSC 31414 790 00001
   VCID: 48C234DF52BE588A077-801C

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 4L0-910-289.lbl
   Part No SW: 4L0 910 289 K    HW: 4L0 907 289 K
   Component: Komfortgeraet   H12 0130
   Revision: 0130 ---    Serial number: 01938473000000
   Coding: 3569949
   Shop #: WSC 31414 790 00001
   VCID: 3822441F2E5E280A777-806C

   Subsystem 1 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HORN H05 1501

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (J525)       Labels: None
   Part No SW: 4L0 035 223 J    HW: 4L0 035 223 G
   Component: BOSE G3 Q7    H04 0160
   Revision: CH004001    Serial number: 00000000014493
   Coding: 030000
   Shop #: WSC 31414 790 00001
   VCID: 2904915BE9F48182F89-807C

No fault code found.

-------------------------------------------------------------------------------
Address 4C: Tire Pressure II        Labels: 4F0-910-274.clb
   Part No SW: 4F0 910 274 B    HW: 4F0 907 274
   Component: J793  RKA+      H04 0110
   Revision: 00000519    Serial number: 00005191022356
   Coding: 0758477
   Shop #: WSC 31414 790 00001
   VCID: 2318837387D85BD2B25-8076

2 Faults Found:
01316 - ABS Control Module
            013 - Check DTC Memory - Intermittent
             Freeze Frame:
                    Fault Status: 00101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:29:01

             Freeze Frame:
                    Hex Value: 0x0000
                    Hex Value: 0x0000
                    Hex Value: 0x0001
                    Voltage: 14.20 V
                    Temperature: 32.0°C
                    (no units): 0.0

00778 - Steering Angle Sensor (G85)
            013 - Check DTC Memory - Intermittent
             Freeze Frame:
                    Fault Status: 00101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:29:01

             Freeze Frame:
                    Hex Value: 0x0000
                    Hex Value: 0x0000
                    Hex Value: 0x0001
                    Voltage: 14.20 V
                    Temperature: 32.0°C
                    (no units): 0.0


-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II        Labels: 4F0-910-280.lbl
   Part No SW: 4F0 910 280     HW: 4F0 907 280 D
   Component: ILM Beifahrer   H16 0100
   Revision:             Serial number: 00000000155797
   Coding: 0012001
   Shop #: WSC 31414 790 00001
   VCID: 5EEEF287EC3A363ADDB-800A

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels:. 4F0-959-792.clb
   Part No SW: 4F0 959 792 T    HW: 8K0 959 792 M
   Component: TSG BF        H12 0362
   Revision:             Serial number: 0000076732171
   Coding: 011F57205E40440004
   Shop #: WSC 31414 790 00001
   VCID: 47C037E35FA057F20ED-8012

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range        Labels: 4F0-910-357.lbl
   Part No SW: 4L0 910 357 B    HW: 4L0 907 357 B
   Component: AFS 1           H01 0010
   Revision: 00000001    Serial number:
   Coding: 0000031
   Shop #: WSC 31414 790 00001
   VCID: 2B086B53EF0893920A5-807E

   Subsystem 1 - Part No: 7L6 941 329 A
   Component: AFS-Modul links H07 0004

   Subsystem 2 - Part No: 7L6 941 329 A
   Component: AFS-Modul rechtsH07 0004

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (R)       Labels:. 4F0-035-0xx-56.clb
   Part No SW: 4G0 035 082 G    HW: 4G0 035 082
   Component: Radio U SIRIU H60 0133
   Revision: AB001007    Serial number: 156I/0D7910265
   Coding: 020007010000000000
   Shop #: WSC 31414 790 00001
   VCID: 241A806F8ED65CEACBF-8070

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:. 4E0-035-6xx-5F.clb
   Part No SW: 4L2 035 746 D    HW: 4L2 035 746 D
   Component: H-BNT-NA      H40 0738
   Revision: --------    Serial number: 224IW0D7529012
   Coding: 180200060004E3EF510003456F632003140000000100000000
   Shop #: WSC 31414 790 00001
   VCID: 2F307F43D710EFB226D-807A

   Subsystem 1 - Part No: 8R0 060 884 BD
   Component: NAR 2013/2014  0802

   Subsystem 2 - Part No SW: 8R0 919 604 A    HW: 8R0 919 604 A
   Component: DU7 High  H42 0104
   Serial number: A130IV0D2837450

   Subsystem 3 - Part No SW: 4L0 919 614 C    HW: 4L0 919 614 C
   Component: E0380 Bedient  H01 0060
   Serial number: 00000002138073

   Subsystem 4 - Part No: 8R0 060 961 F
   Component: CD-Database  5298

1 Fault Found:
01524 - Antenna for Telephone
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 7
                    Fault Frequency: 64
                    Reset counter: 185
                    Mileage: 279923 km
                    Time Indication: 0
                    Date: 2024.07.30
                    Time: 17:05:21

             Freeze Frame:
                    Voltage: 12.60 V


-------------------------------------------------------------------------------
Address 62: Door, Rear Left (J388)       Labels:. 4F0-959-795.clb
   Part No SW: 4F0 959 795 P    HW: 4F0 959 795 P
   Component: TSG HL        H11 0362
   Revision:             Serial number: 0000077202521
   Coding: 010E57204040230004
   Shop #: WSC 31414 790 00001
   VCID: 46DE3AE758AA4EFAF5B-8012

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam.        Labels: 4L0-910-441.clb
   Part No SW: 4L0 910 441 B    HW: 4L0 907 441 B
   Component: J772__Rearview      0030
   Revision: --H08---    Serial number: 525PA8-J38435R
   Coding: 1021201
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B89ECA5E2DC1-8070

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect.        Labels: 4L0-910-945.clb
   Part No SW: 4L0 910 945     HW: 4L0 827 851 E
   Component: ValeoHeckdeckel H57 0500
   Revision: --H57001    Serial number: E5030000B
   Shop #: WSC 98765 666 38354
   VCID: 6C8AA84F2A8654AA43F-8038

   Subsystem 1 - Part No: 4L0 910 946
   Component: ValeoHeckdeckel H57 0500

   Subsystem 2 - Serial number: +4
ó

   Subsystem 3 - Serial number: RD20.09.13--H57001002G0319ÿ

   Subsystem 4 - Serial number: 2G0319ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 6F: Centr. Conv. II        Labels:. 4L0-910-290.lbl
   Part No SW: 4L0 910 290 A    HW: 4L0 907 290 A
   Component: ILM HINTEN 2    H08 0080
   Revision: AAH08080    Serial number: 0077020093----
   Coding: 0003595
   Shop #: WSC 31414 790 00001
   VCID: 261E9A67F4EAAEFAD5B-8072

   Subsystem 1 - Part No: 4L0 910 591 A
   Component: J_245_EE16_SKB10H14 0220

   Subsystem 2 - Part No: 4L0 910 591 A
   Component: J_394_EE16_SKB10H14 0220

   Subsystem 3 - Part No: 4L0 910 591 A
   Component: J_392_EE16_SKB10H14 0220

2 Faults Found:
02914 - Sensor 1 for Trunk/Hatch Closed (G525)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:33:12

02915 - Sensor 2 for Trunk/Hatch Closed (G526)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 17:33:12


-------------------------------------------------------------------------------
Address 72: Door, Rear Right (J389)       Labels:. 4F0-959-795.clb
   Part No SW: 4F0 959 795 P    HW: 4F0 959 795 P
   Component: TSG HR        H11 0362
   Revision:             Serial number: 0000077202347
   Coding: 010E57204040230004
   Shop #: WSC 31414 790 00001
   VCID: 46DE3AE758AA4EFAF5B-8012

No fault code found.

End----------(Elapsed Time: 02:17, VBatt start/end: 12.8V/13.6V)-----------
------------------------------14 Faults Found------------------------------

   #2
NZDubNurd

NZDubNurd

Verified VCDS User
Verified
Joined
Nov 10, 2014
Messages
1,700
Reaction score
2,444
Location
New Zealand
VCDS Serial number
C?ID=230482
Have you cleared all the faults related to the HVAC systems? In 19 and 28?


How do you know the compressor isn't running?
The compressor should have been pumping during the regas, once the minimum pressure was reached. Did they say it didn't? But filled it anyway???
Is there a compressor shutoff code?

Do the pressures change with AC activation?
this is probably the best test, after checking the shutoff codes
If the pressures don't change, but the compressor control valve IS supplied voltage by the module, the control valve can be faulty.

Has the "breakaway" centre of the AC pulley "activated" (compressor seized and pulley allowed to rotate, but input shaft doesn't).
Was the compressor still driven by it's belt / the engine while the car was driven to be filled etc, with no refrigerant charge in?
They aren't supposed to be run with no charge as they are (usually) Variable Displacement Compressors (VDC)
They are always driven and vary the displacement (therefore; Output) by diverting pressure internally to adjust the swashplate angle

   #3
R

RobertV

Verified VCDS User
Verified
Joined
Apr 4, 2025
Messages
4
Reaction score
3
Location
Lithia, FL, USA
VCDS Serial number
C?ID=6764
NZDubNurd said:
Have you cleared all the faults related to the HVAC systems? In 19 and 28? REV: Apologize as I should have included more detail. I did clear codes after I installed the new evaporator and didn't realize one had returned (my fault). I'll post the earlier scan it had more faults.


How do you know the compressor isn't running? REV: I don't and was going off what the tech said at the local repair shop.
The compressor should have been pumping during the regas, once the minimum pressure was reached. Did they say it didn't? But filled it anyway??? REV: Tech said it filled fine and has 2 lbs. of 134
Is there a compressor shutoff code? REV: I'm not sure. Where would I find that?

Do the pressures change with AC activation? REV: I will hook up gauges and see (early here and don't want to wake up the house).
this is probably the best test, after checking the shutoff codes
If the pressures don't change, but the compressor control valve IS supplied voltage by the module, the control valve can be faulty.

Has the "breakaway" centre of the AC pulley "activated" (compressor seized and pulley allowed to rotate, but input shaft doesn't). REV: Not that I could tell but will dig deeper and report back.
Was the compressor still driven by it's belt / the engine while the car was driven to be filled etc, with no refrigerant charge in? REV: Yes, one belt for the TDI
They aren't supposed to be run with no charge as they are (usually) Variable Displacement Compressors (VDC)
They are always driven and vary the displacement (therefore; Output) by diverting pressure internally to adjust the swashplate angle
Click to expand...

See above.

Also wanted to mention that the steering column in and out works but the up and down don't - may be tied to the CAN issue?

Scan before I replaced the rear evaporator below:

Code:
Friday,04,April,2025,16:58:37:55868
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 25.3.0.4 (x64)  HEX-NET2 CB: 0.4660.5
Data version: 20250311 DS365.0
www.Ross-Tech.com


VIN: WA1WMAFE9ED007546   License Plate: Q7 TDI
Mileage: 285530km-177420mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: FE-AU56 (4F0)
Scan: 01 02 03 05 08 09 10 15 16 17 19 28 36 3C 42 46 47 4C 4F 52
          55 56 5F 62 6C 6D 6F 72

VIN: WA1WMAFE9ED007546   Mileage: 285530km-177420miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
08-Auto HVAC -- Status: Sporadic communication error 1000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: Sporadic communication error 1000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
28-HVAC, Rear -- Status: Malfunction 1010
36-Seat Mem. Drvr -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
4C-Tire Pressure II -- Status: Malfunction 0010
4F-Centr. Electr. II -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
6C-Back-up Cam. -- Status: Malfunction 0010
6D-Trunk Elect. -- Status: OK 0000
6F-Centr. Conv. II -- Status: Malfunction 0010
72-Door, Rear Right -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CNRB)       Labels:. 059-907-401-V2.clb
   Part No SW: 4L2 910 401 A    HW: 4L0 907 401 E
   Component: 3.0TDI FSA    X23 0012
   Revision: 54X23---    Serial number:                CVN: 79A4593238D3FF8238D3FF820E1FC39E
   Coding: 2A2A4012252600050000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_ECM30TDI0114L2910401A 001013
   ROD: EV_ECM30TDI0114L2910401A.rod
   VCID: 22168677944252DAB93-8076
   VINID: 9D1067751595255500007144189A56DCF1

2 Faults Found:
4484 - Coolant Thermostat Valve (N214)
          P0128 00 [01100000] - Temperature below Control Range
          Intermittent - Not Confirmed - Tested Since Memory Clear

5604 - Park/Neutral Switch Input Circuit
          P0850 00 [00100000] - Open or Short to Plus
          Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: 0 0 0 1 X

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217)       Labels:| 0C8-927-7XX-V1.clb
   Part No SW: 0C8 927 750 AQ    HW: 0C8 927 750 AQ
   Component: AL1000 AISIN  002 3399
   Serial number:                CVN: 0478EC02
   Coding: 001378
   Shop #: WSC 16035 006 1048576
   ASAM Dataset: EV_TCMAL991031 002115
   ROD: EV_TCMAL991031_002.rod
   VCID: 7BA89B135368C312DA5-802E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels:. 4L0-910-517-V2.clb
   Part No SW: 4L0 910 517 M    HW: 4L0 614 517 L
   Component: ESP ALLRAD MK25E1   0020
   Revision: 00H02001
   Coding: 0099441
   Shop #: WSC 31414 790 00001
   VCID: 343A702F3236CC6A5BF-8060

1 Fault Found:
01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 15:27:26

             Freeze Frame:
                    Count: 128
                    Count: 837
                    Count: 297
                    Count: 44544


-------------------------------------------------------------------------------
Address 05: Acc/Start Auth.        Labels:. 4F0-910-852.clb
   Part No SW: 4F0 910 852 B    HW: 4F0 905 852 H
   Component: FBSAUDIC6 ELV   H08 0200
   Revision: 00H08000    Serial number: 10603702090871
   Coding: 0000135
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B89ECA5E2DC1-8070

   Subsystem 1 - Part No: 4F0 910 132 L
   Component: FBSAUDIC6 EZS   H04 0020

   Subsystem 2 - Part No: 4F0 910 335 B
   Component: FBSAUDIC6 KSG   H03 0020

3 Faults Found:
00191 - Passenger's Door Handle Touch Sensor (G416)
            007 - Short to Ground
             Freeze Frame:
                    Fault Status: 01110111
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 198
                    Time Indication: 0

00193 - Rear Right Door Handle Touch Sensor (G418)
            007 - Short to Ground
             Freeze Frame:
                    Fault Status: 01110111
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 198
                    Time Indication: 0

00190 - Driver's Door Handle Touch Sensor (G415)
            007 - Short to Ground - Intermittent
             Freeze Frame:
                    Fault Status: 00110111
                    Fault Priority: 3
                    Fault Frequency: 4
                    Reset counter: 172
                    Time Indication: 0


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 4L0-910-043.clb
   Part No SW: 4L0 910 043 D    HW: 4L0 820 043 AQ
   Component: KLIMA 4 ZONEN H15 0070
   Revision: 00---031    Serial number: 00000000396909
   Coding: 0304A036
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B85ECA5E2DC1-8070

   Subsystem 1 - Part No SW: 8K0 959 772 F    HW: 8K0 959 772
   Component: SLR-B8  H06 0007
   Serial number:           0074857840
   Coding: 070000

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels: 4F0-910-279.lbl
   Part No SW: 4F0 910 279 AG    HW: 4F0 907 279 C
   Component: ILM Fahrer      H31 0400
   Revision: 00000000    Serial number: 4F0907279
   Coding: 0133123
   Shop #: WSC 31414 790 00001
   VCID: 6E8EA2471C9AA6BA6DB-803A

   Subsystem 1 - Part No: 4L1 910 113   Labels: 1KX-955-119.CLB
   Component: Wischer AU716   H18 0110
   Coding: 00064792
   Shop #: WSC 31414

   Subsystem 2 - Part No: 8K0 910 557   Labels: 8K0-955-559.CLB
   Component: REGENLICHTSENSORH04 0003
   Coding: 00150059
   Shop #: WSC 31414

1 Fault Found:
00466 - Control Module for Steering Column Electronics (J527)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 262136 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:57:00


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 4L0-919-475-7X2.clb
   Part No SW: 4L0 919 475 A    HW: 4H0 919 475 C
   Component: PARKHILFE 8K  H07 0011
   Revision: 11001001    Serial number: 55931326600466
   Coding: 24011F
   Shop #: WSC 31414 790 00001
   ASAM Dataset: EV_EPHVA18AU7160000 001001
   ROD: EV_EPHVA18AU7160000.rod
   VCID: 343A702F3EB6CC6A5BF-8060

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 4L0-910-655.clb
   Part No SW: 4L0 910 655 A    HW: 4L0 959 655 B
   Component: 73 AIRBAG AUDI8RH44 0230
   Revision: 08H44000    Serial number: 0038QD0CCMS
   Coding: 0014131
   Shop #: WSC 31414 790 00001
   VCID: 2B086B53EF0893920A5-807E

   Subsystem 1 - Part No: 4L0 959 339 C
   Component: BF-Gewichtsens. H05 0040

   Subsystem 2 - Serial number: 6332QSME14411242.

   Subsystem 3 - Serial number: 6342QSME5E411058E

   Subsystem 4 - Serial number: 6352QSME5E371756P

   Subsystem 5 - Serial number: 6362QSME5E412E72R

   Subsystem 6 - Serial number: 63734SME1B3737583

   Subsystem 7 - Serial number: 63834SME1B37055C3

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 4F0-910-549.lbl
   Part No SW: 4F0 910 549 B    HW: 4F0 953 549 E
   Component: J0527               0830
   Revision: 00H09000    Serial number: 90026131880411
   Coding: 0012142
   Shop #: WSC 31414 790 00001
   VCID: 2802945FFEFEB88AE77-807C

   Subsystem 1 - Part No: XXXXXXXXXXX
   Component: E0221           H03 0040

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:. 4L0-920-KOM-V3.clb
   Part No SW: 4L0 920 985 Q    HW: 4L0 920 985 Q
   Component: KOMBIINSTR.   H35 0317
   Revision: 00000000    Serial number: VJ400T0AE
   Coding: 8BD664040900CF05020205
   Shop #: WSC 31414 790 00001
   VCID: 42D626F7748272DAD93-8016

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 4F0-907-468.clb
   Part No SW: 4F0 907 468 S    HW: 4F0 907 468 G
   Component: GW-BEM 5CAN-M H06 0058
   Revision: MB700037    Serial number: 3700M1391506D8
   Coding: 00C303
   Shop #: WSC 31414 790 00001
   VCID: 3FD02F0307701F32B6D-806A

   Subsystem 1 - Part No SW: 8K0 915 181 D    HW: 8K0 915 181 D
   Component: J367-BDM  H07 0125
   Serial number: 30250N37584121864764

3 Faults Found:
00466 - Control Module for Steering Column Electronics (J527)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:57:34

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 13
                    Bin. Bits:    11000
                    Time: 25.40 s

01320 - Control Module for Climatronic (J255)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:58:59

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 12
                    Bin. Bits:    11000
                    Time: 25.40 s

00565 - Rear A/C Control Head (Climatronic) (E265)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:59:16

             Freeze Frame:
                    Bin. Bits:    00000
                    Voltage: 12.20 V
                    Count: 12
                    Bin. Bits:    11000
                    Time: 25.40 s


-------------------------------------------------------------------------------
Address 28: HVAC, Rear        Labels: None
   Part No SW: 4L0 910 158     HW: 4L0 919 158 AE
   Component: KLIMABETAETIGUNGH06 0060
   Revision: 00---011    Serial number: 00000030304674
   Coding: 0000006
   Shop #: WSC 31414 790 00001
   VCID: 6882D45F3E7E788A277-803C

3 Faults Found:
01320 - Control Module for Climatronic (J255)
            013 - Check DTC Memory - Intermittent
             Freeze Frame:
                    Fault Status: 00101101
                    Fault Priority: 2
                    Fault Frequency: 4
                    Reset counter: 225
                    Mileage: 278729 km
                    Time Indication: 0
                    Date: 2024.05.03
                    Time: 16:23:21

             Freeze Frame:
                        ON

00003 - Control Module
            003 - Mechanical Failure - Intermittent
             Freeze Frame:
                    Fault Status: 00100011
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 279149 km
                    Time Indication: 0
                    Date: 2024.06.30
                    Time: 12:47:51

02881 - Potentiometer for Air-Quantity Flap; Rear Right (G390)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 185
                    Mileage: 285524 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 10:43:49

             Freeze Frame:
                    Voltage: 12.00 V
                    (no units): 190.0
                    (no units): 255.0


-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136)       Labels: None
   Part No SW: 4F0 959 760 D    HW: 4F0 959 760 D
   Component: MEM-FS        H08 0064
   Revision: AA000000    Serial number: 00000074890927
   Coding: 00581B00000011110000
   Shop #: WSC 20008 004 1048576
   VCID: 32367637C422C25A493-8066

No fault code found.

-------------------------------------------------------------------------------
Address 3C: Lane Change        Labels: None
   Part No SW: 4L0 910 566 C    HW: 4L0 907 566 B
   Component: J0769_SWA_MasterH02 0050
   Revision: 00H02000    Serial number: 6PZ 009 014-10
   Coding: 0000001
   Shop #: WSC 31414 790 00001
   VCID: 2E0E6247DC1AE6BA2DB-807A

   Subsystem 1 - Part No: 4L0 910 568 C
   Component: J0770_SWA_Slave_H02 0050

   Subsystem 2 - Serial number: 6PZ 009 014-30

   Subsystem 3 - Serial number: 5F20.09.1300H02000AMS14489ÿ

   Subsystem 4 - Serial number: S14489ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels:. 4F0-959-793.clb
   Part No SW: 4F0 959 793 T    HW: 8K0 959 793 M
   Component: TSG FA        H12 0362
   Revision:             Serial number: 0000077188376
   Coding: 011F57205E40440004
   Shop #: WSC 31414 790 00001
   VCID: 48C234DF52BE588A077-801C

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 4L0-910-289.lbl
   Part No SW: 4L0 910 289 K    HW: 4L0 907 289 K
   Component: Komfortgeraet   H12 0130
   Revision: 0130 ---    Serial number: 01938473000000
   Coding: 3569949
   Shop #: WSC 31414 790 00001
   VCID: 3822441F2E5E280A777-806C

   Subsystem 1 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HORN H05 1501

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (J525)       Labels: None
   Part No SW: 4L0 035 223 J    HW: 4L0 035 223 G
   Component: BOSE G3 Q7    H04 0160
   Revision: CH004001    Serial number: 00000000014493
   Coding: 030000
   Shop #: WSC 31414 790 00001
   VCID: 2904915BE9F48182F89-807C

No fault code found.

-------------------------------------------------------------------------------
Address 4C: Tire Pressure II        Labels: 4F0-910-274.clb
   Part No SW: 4F0 910 274 B    HW: 4F0 907 274
   Component: J793  RKA+      H04 0110
   Revision: 00000519    Serial number: 00005191022356
   Coding: 0758477
   Shop #: WSC 31414 790 00001
   VCID: 2318837387D85BD2B25-8076

2 Faults Found:
01316 - ABS Control Module
            013 - Check DTC Memory - MIL ON
             Freeze Frame:
                    Fault Status: 11101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 15:27:27

             Freeze Frame:
                    Hex Value: 0x0000
                    Hex Value: 0x0000
                    Hex Value: 0x0001
                    Voltage: 12.20 V
                    Temperature: 32.0°C
                    (no units): 0.0

00778 - Steering Angle Sensor (G85)
            013 - Check DTC Memory - MIL ON
             Freeze Frame:
                    Fault Status: 11101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 15:27:27

             Freeze Frame:
                    Hex Value: 0x0000
                    Hex Value: 0x0000
                    Hex Value: 0x0001
                    Voltage: 12.20 V
                    Temperature: 32.0°C
                    (no units): 0.0


-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II        Labels: 4F0-910-280.lbl
   Part No SW: 4F0 910 280     HW: 4F0 907 280 D
   Component: ILM Beifahrer   H16 0100
   Revision:             Serial number: 00000000155797
   Coding: 0012001
   Shop #: WSC 31414 790 00001
   VCID: 5EEEF287EC3A363ADDB-800A

1 Fault Found:
01320 - Control Module for Climatronic (J255)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 262136 km
                    Time Indication: 0

             Freeze Frame:
                    Voltage: 12.300 V
                    Temperature: 20.0°C


-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels:. 4F0-959-792.clb
   Part No SW: 4F0 959 792 T    HW: 8K0 959 792 M
   Component: TSG BF        H12 0362
   Revision:             Serial number: 0000076732171
   Coding: 011F57205E40440004
   Shop #: WSC 31414 790 00001
   VCID: 47C037E35FA057F20ED-8012

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range        Labels: 4F0-910-357.lbl
   Part No SW: 4L0 910 357 B    HW: 4L0 907 357 B
   Component: AFS 1           H01 0010
   Revision: 00000001    Serial number:
   Coding: 0000031
   Shop #: WSC 31414 790 00001
   VCID: 2B086B53EF0893920A5-807E

   Subsystem 1 - Part No: 7L6 941 329 A
   Component: AFS-Modul links H07 0004

   Subsystem 2 - Part No: 7L6 941 329 A
   Component: AFS-Modul rechtsH07 0004

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (R)       Labels:. 4F0-035-0xx-56.clb
   Part No SW: 4G0 035 082 G    HW: 4G0 035 082
   Component: Radio U SIRIU H60 0133
   Revision: AB001007    Serial number: 156I/0D7910265
   Coding: 020007010000000000
   Shop #: WSC 31414 790 00001
   VCID: 241A806F8ED65CEACBF-8070

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:. 4E0-035-6xx-5F.clb
   Part No SW: 4L2 035 746 D    HW: 4L2 035 746 D
   Component: H-BNT-NA      H40 0738
   Revision: --------    Serial number: 224IW0D7529012
   Coding: 180200060004E3EF510003456F632003140000000100000000
   Shop #: WSC 31414 790 00001
   VCID: 2F307F43D710EFB226D-807A

   Subsystem 1 - Part No: 8R0 060 884 BD
   Component: NAR 2013/2014  0802

   Subsystem 2 - Part No SW: 8R0 919 604 A    HW: 8R0 919 604 A
   Component: DU7 High  H42 0104
   Serial number: A130IV0D2837450

   Subsystem 3 - Part No SW: 4L0 919 614 C    HW: 4L0 919 614 C
   Component: E0380 Bedient  H01 0060
   Serial number: 00000002138073

   Subsystem 4 - Part No: 8R0 060 961 F
   Component: CD-Database  5298

1 Fault Found:
01524 - Antenna for Telephone
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 7
                    Fault Frequency: 64
                    Reset counter: 185
                    Mileage: 279923 km
                    Time Indication: 0
                    Date: 2024.07.30
                    Time: 17:05:21

             Freeze Frame:
                    Voltage: 12.60 V


-------------------------------------------------------------------------------
Address 62: Door, Rear Left (J388)       Labels:. 4F0-959-795.clb
   Part No SW: 4F0 959 795 P    HW: 4F0 959 795 P
   Component: TSG HL        H11 0362
   Revision:             Serial number: 0000077202521
   Coding: 010E57204040230004
   Shop #: WSC 31414 790 00001
   VCID: 46DE3AE758AA4EFAF5B-8012

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam.        Labels: 4L0-910-441.clb
   Part No SW: 4L0 910 441 B    HW: 4L0 907 441 B
   Component: J772__Rearview      0030
   Revision: --H08---    Serial number: 525PA8-J38435R
   Coding: 1021201
   Shop #: WSC 31414 790 00001
   VCID: 251C9D6B89ECA5E2DC1-8070

1 Fault Found:
00778 - Steering Angle Sensor (G85)
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 16:48:18

             Freeze Frame:
                        Term 15 On
                        Reverse OFF
                    Count: 3


-------------------------------------------------------------------------------
Address 6D: Trunk Elect.        Labels: 4L0-910-945.clb
   Part No SW: 4L0 910 945     HW: 4L0 827 851 E
   Component: ValeoHeckdeckel H57 0500
   Revision: --H57001    Serial number: E5030000B
   Shop #: WSC 98765 666 38354
   VCID: 6C8AA84F2A8654AA43F-8038

   Subsystem 1 - Part No: 4L0 910 946
   Component: ValeoHeckdeckel H57 0500

   Subsystem 2 - Serial number: +4
ó

   Subsystem 3 - Serial number: RD20.09.13--H57001002G0319ÿ

   Subsystem 4 - Serial number: 2G0319ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 6F: Centr. Conv. II        Labels:. 4L0-910-290.lbl
   Part No SW: 4L0 910 290 A    HW: 4L0 907 290 A
   Component: ILM HINTEN 2    H08 0080
   Revision: AAH08080    Serial number: 0077020093----
   Coding: 0003595
   Shop #: WSC 31414 790 00001
   VCID: 261E9A67F4EAAEFAD5B-8072

   Subsystem 1 - Part No: 4L0 910 591 A
   Component: J_245_EE16_SKB10H14 0220

   Subsystem 2 - Part No: 4L0 910 591 A
   Component: J_394_EE16_SKB10H14 0220

   Subsystem 3 - Part No: 4L0 910 591 A
   Component: J_392_EE16_SKB10H14 0220

3 Faults Found:
02914 - Sensor 1 for Trunk/Hatch Closed (G525)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 184
                    Mileage: 285524 km
                    Time Indication: 0
                    Date: 2025.04.03
                    Time: 22:38:42

02915 - Sensor 2 for Trunk/Hatch Closed (G526)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 184
                    Mileage: 285524 km
                    Time Indication: 0
                    Date: 2025.04.03
                    Time: 22:38:42

01320 - Control Module for Climatronic (J255)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 225
                    Mileage: 285531 km
                    Time Indication: 0
                    Date: 2025.04.04
                    Time: 14:58:59


-------------------------------------------------------------------------------
Address 72: Door, Rear Right (J389)       Labels:. 4F0-959-795.clb
   Part No SW: 4F0 959 795 P    HW: 4F0 959 795 P
   Component: TSG HR        H11 0362
   Revision:             Serial number: 0000077202347
   Coding: 010E57204040230004
   Shop #: WSC 31414 790 00001
   VCID: 46DE3AE758AA4EFAF5B-8012

No fault code found.

End----------(Elapsed Time: 02:16, VBatt start/end: 12.8V/13.6V)-----------
------------------------------21 Faults Found------------------------------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


VCDS Release 25.3.0:  SRI Reset
Control Module Part Number: 4L0 920 985 Q       Labels:  .4L0-920-KOM-V3.clb
Component:KOMBIINSTR.   H35 0317, Coding:8BD664040900CF05020205
Operation: Please select an operation
************************************************************************************************************************
Channel      Description                                           Unit          Current val.      New val.
02           Service Reminder Status                                             0                 ---
40           Distance since Service                                km x100       0                 ---
41           Time since Service                                    Days          0                 ---
42           Minimum Distance to Service                           km x100       150               ---
43           Maximum Distance to Service                           km x100       150               ---
44           Maximum Time to Service                               Days          365               ---
45           Oil Quality                                                         1                 ---
47           Soot Quantity                                         DIST x100     0                 ---
48           Thermal Load                                          DIST x100     0                 ---
49           Minimum Time to Service                               Days          365               ---
50           Basic Distance Value for Oil Change                   km x100       160               ---
51           Basic Time Value for Oil Change                       Days          365               ---
52           Basic Distance Value for Inspection                   km x100       160               ---
53           Distance since Inspection                             km x100       263               ---
54           Basic Time Value for Inspection                       Days          365               ---
55           Time since Inspection                                 Days          1014              ---
56           Day Counter                                           Days          4193              ---
************************************************************************************************************************


--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 03: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 03: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 05: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 09: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Sequential Output Tests

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Sequential Output Tests

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Sequential Output Tests

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Sequential Output Tests

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 28: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 4C: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 4F: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 6C: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 6F: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 28: DTCs cleared

   #4
SaVAGeSoot

SaVAGeSoot

Verified VCDS User
Verified
Joined
Nov 9, 2022
Messages
3,617
Reaction score
1,948
Location
ON, Canada
VCDS Serial number
C?ID=568688
Have a read through my fiasco here

Tis' the season.... for non-functioning AC - '14 Touareg TDI

RAGE!!! As some of you may recall, I was whining late last year about lower than desired AC output, but due to the inexplicable CP events that I have seen during the last 5 years of owning the vehicle, I was distracted, and didn't for a second expect a problem, so no diagnostics took place...
forums.ross-tech.com forums.ross-tech.com

It may give you some additional ideas of things to check\look into.

   #5
Crasher

Crasher

Professional User
Professional VCDS User
Joined
Jun 12, 2015
Messages
3,559
Reaction score
3,038
Location
Nottingham, England
VCDS Serial number
C?ID=21420
If you are expecting the compressor to engage in the traditional manner of the mag clutch operating, it doesn’t work that way. The DENSO 7SEU17C compressor uses a modulated valve called the N280 and the compressor is always running.



The N280 is available from a couple of sources but we just fit a full new genuine DENSO unit.




  • Like
Reactions: Uwe
   #6
R

RobertV

Verified VCDS User
Verified
Joined
Apr 4, 2025
Messages
4
Reaction score
3
Location
Lithia, FL, USA
VCDS Serial number
C?ID=6764
More updates:

No compressor shutoff codes & no change in the pressures when the Auto button is selected and temp is lower (tried from 72 to LO).

G 0010.595 A57.00%23.50%7.2 bar
AC reg valveAC reg valveRefrig PressRefrig Press
G0020.00.00.00.0
G0030.073.0Not OccupNot Occup
Cmpr Shut-off Request

Will get her up in the air and take a look at the voltage on the N280.

Compressor shaft only spins if the pulley spins.

I hate to say it but I don't believe the dealer said anything about not driving the car when the system is purged to the previous owner. I believe he drove it home form the dealer AND I did test drive it before I picked it up.



Thanks for the input.

Last edited:
   #7
NZDubNurd

NZDubNurd

Verified VCDS User
Verified
Joined
Nov 10, 2014
Messages
1,700
Reaction score
2,444
Location
New Zealand
VCDS Serial number
C?ID=230482
I don't understand that table layout, but at least there appears to be pressure in there (which makes sense, with no fault code for low pressure). I'll assume "2 lbs" is the correct amount. I only ever see the label in grams, but I guess they may use non-metric stickers in countries still watching in black and white.

That pressure (7.2 bar) is about right for a 90F (32C) ambient temp without the AC running. The engine being hot can alter that somewhat too, obviously.

It looks like it's trying to send .595A to the control valve - that should have triggered a decent amount of cooling. I can't remember the range, but I only ever recall mine getting as high as 0.8 or 0.9 on the same compressor that Crasher references above, but totally different car. No cooling request is 0.0, but the compressor pumps a tiny amount, to circulate oil and to create the internal pressure required to increase output, when demanded.

Usually, if the wiring has a fault, you get an "open circuit" code, so I'd suggest looking at the valve pretty seriously. The AC guy should really have known this stuff, I'd have thought...? Not much point in continuing to fill a system that doesn't run... plus it can get tricky to even GET the whole charge in.

If you unplug the N280, you should get a fault code. If you want to check for voltage, you'll have to backprobe the plug while it's connected to the compressor, and it has silicone seals in the rear that you don't want to damage, ideally. You can also disassemble the plug, removing the seals and leaving just the terminal inside.

The voltage to the valve is pulse width modulated (PWM), so with a voltmeter, you'll get a voltage under 12, but with a scope, you'll get 12v square waves, with higher or lower frequency, depending on the specified Amps from the module.

Driving with no refrigerant doesn't gaurantee any kind of damage, but the "official" line is - do not run the engine. On my VR6, I could fit a short belt, but on my wifes FSI, I couldn't - the compressor was in the way of the shorter belt routing.

If the inner shaft is turning - it's not seized, anyway. The Denso was *EASILY* the most reliable version of that compressor: the Sanden and Zexels both had short lifespans, generally. But the "Compressor RPM" in the measuring values is NOT always measured, it's calculated from engine RPM, so don't use that as an indicator of the compressor actually working/turning.

If the valve is sticking, people have used a 9V battery, or even a 12V supply to try to free it up by driving it briefly one way, then the other... I'm not recommending it... just saying it :D If you get a replacement valve, the system has to be drained, valve swapped then refilled. Sometimes the valves are stuck, sometimes they are clogged.I think the clogging is more of an issue on the Zexel compressors, that loose the internal coating and create "black death" in the AC system.

Usually if the valve has jammed up, you do get some cooling at times ans it's intermittant and variable, but if they lost refrigerant then left the system unused for a while, if may have siezed up the valve properly - mine worked 100% fine, until I had the car off the road for a period during some mods, then it played up and my wifes identical car did it about the same time :facepalm:.

(Sorry for the wordiness...I must be bored :D)

   #8
Crasher

Crasher

Professional User
Professional VCDS User
Joined
Jun 12, 2015
Messages
3,559
Reaction score
3,038
Location
Nottingham, England
VCDS Serial number
C?ID=21420
If the pulley spins and the shaft doesn’t, that means the compressor has seized up and the pulley shear coupling has, well, sheared.

  • Agree
Reactions: Uwe
   #9
R

RobertV

Verified VCDS User
Verified
Joined
Apr 4, 2025
Messages
4
Reaction score
3
Location
Lithia, FL, USA
VCDS Serial number
C?ID=6764
NZDubNurd said:
I don't understand that table layout, but at least there appears to be pressure in there (which makes sense, with no fault code for low pressure). I'll assume "2 lbs" is the correct amount. I only ever see the label in grams, but I guess they may use non-metric stickers in countries still watching in black and white.
Click to expand...
I appreciate all that you have contributed. I couldn't figure out how to display the screen shot from VDCS so I typed out the values that show no shutdown codes.
Crasher said:
If the pulley spins and the shaft doesn’t, that means the compressor has seized up and the pulley shear coupling has, well, sheared.
Click to expand...
So I learned more recently and found that the compressor is seized. I thought it was spinning but it wasn't...SIGH. More from the seller that I didn't even think about until you all educated me.

Seller heard a belt whine and then it went away = AC Compressor sheared the coupling to prevent additional accessory drive failure as you all know.

History is that Audi Dealer purged his system, he declined the work BUT they never told him not to drive it. It was only a matter of time until that Denso gave up the ghost!

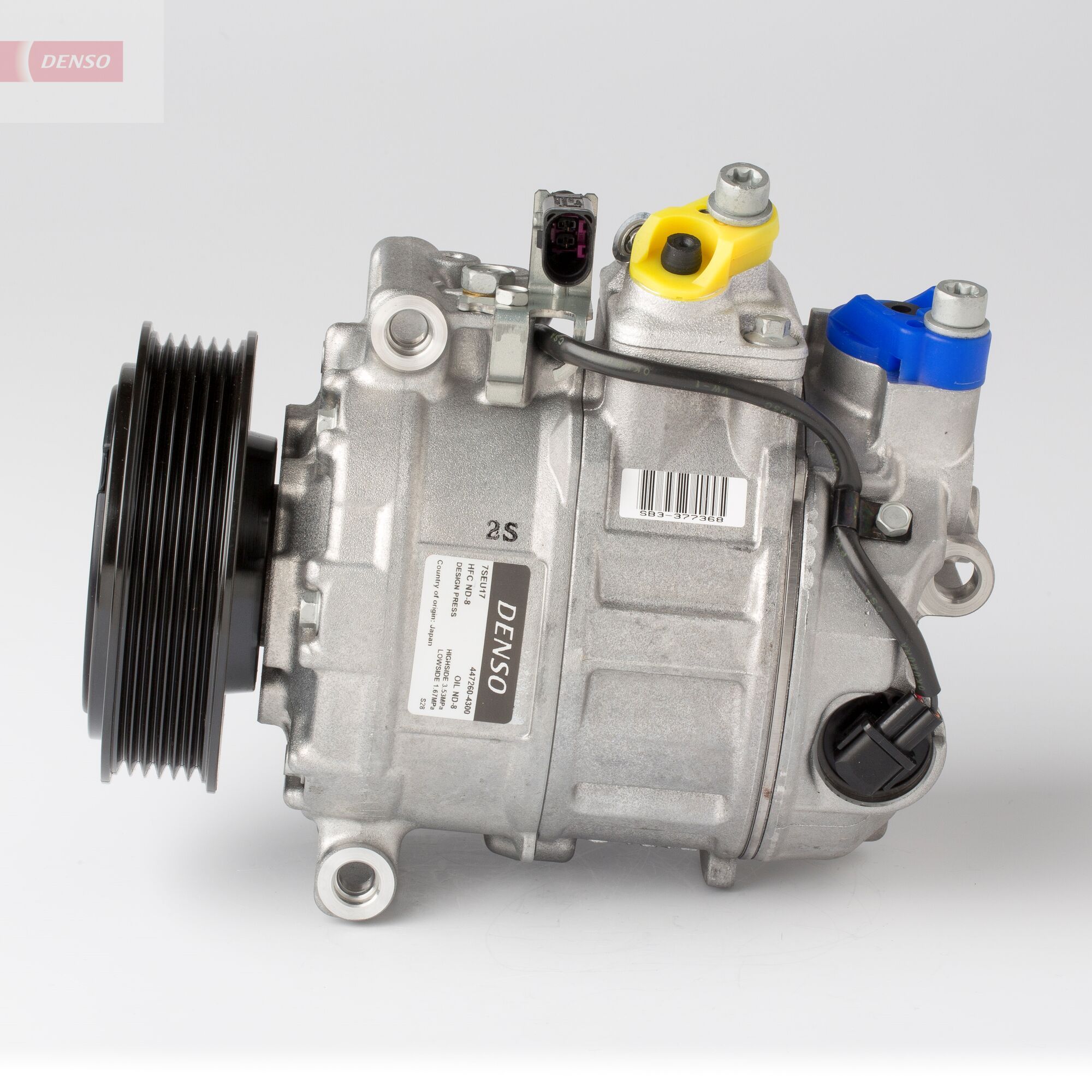

New Denso on order with seals.

I'm going to pull the service history and see what said dealer wrote on the work order. They should have told him not to drive it.

THANK YOU to all that have contributed to this thread.

Cheers!

   #10
Crasher

Crasher

Professional User
Professional VCDS User
Joined
Jun 12, 2015
Messages
3,559
Reaction score
3,038
Location
Nottingham, England
VCDS Serial number
C?ID=21420
The system will be full of debris and will need professionally flushing with a new combined receiver drier/condenser 4L0 260 401 A, if you don’t do this the new compressor will fail and Denso will not warranty it. It is worthwhile studying Denso’s oil balancing video


   #11
NZDubNurd

NZDubNurd

Verified VCDS User
Verified
Joined
Nov 10, 2014
Messages
1,700
Reaction score
2,444
Location
New Zealand
VCDS Serial number
C?ID=230482
That's a shame. But at least you found an issue, rather than spending hours chasing around in hope!


I don't know how the pricing works out in the US, but I got all my AC parts (and others!) from Spareto.com, based in Latvia, or Estonia.

Shipped to NZ, the Compressor, Condensor (with drier), Expansion valve and all the O-rings; was about 40% of the price of a compressor from the dealer, and about the same as a mate in the AC trade could get a compressor alone!

You must log in or register to reply here.
Back
Top
