RAGE!!!
As some of you may recall, I was whining late last year about lower than desired AC output, but due to the inexplicable CP events that I have seen during the last 5 years of owning the vehicle, I was distracted, and didn't for a second expect a problem, so no diagnostics took place.
(see previous discussion - Component Protection - Potential Controller Software\Firmware issue )
Now that we are finally getting some warmth in my neck of the woods, it's evident that there's a more substantial issue with the system.
Bottom line is, my AC compressor doesn't kick in.
Autoscan

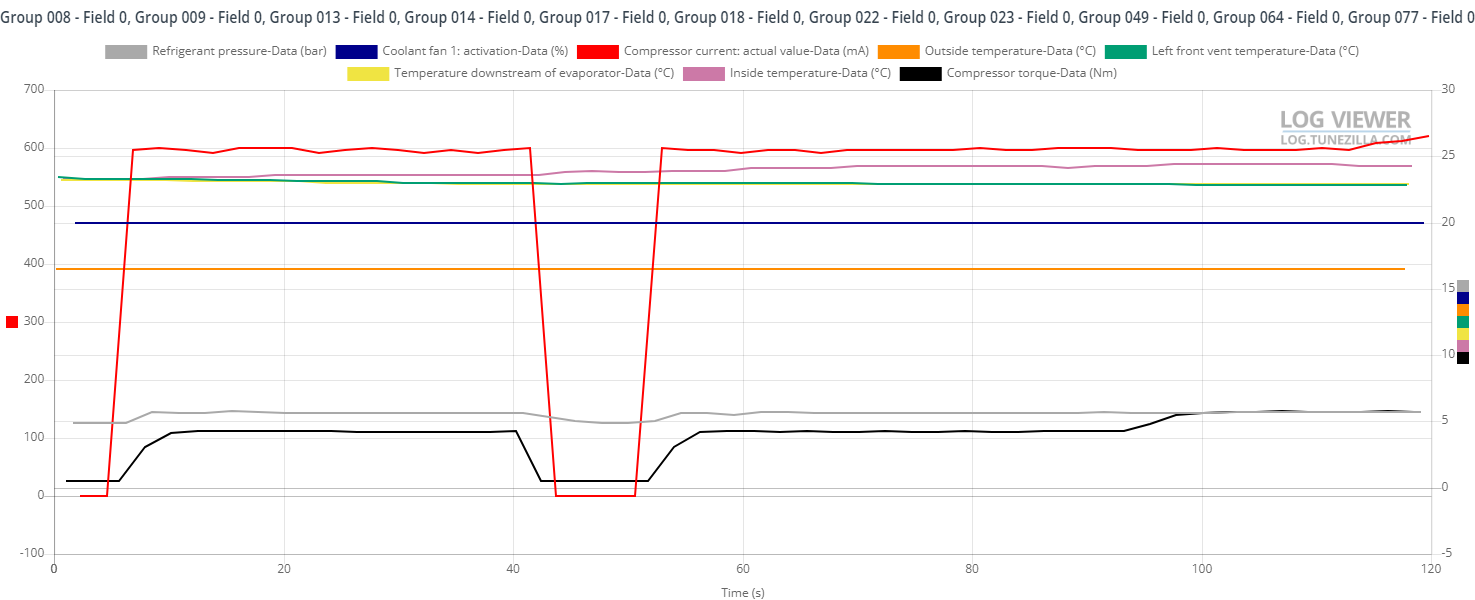

Idling, AC on - Rad fan not ramping up, compressor not turning on, AC output not cold.... controller thinks all is good... no faults, no codes, no cooling!
Same conditions as above, but AC off - not changes in pressure or fan speed, etc.
I'm not liking this IDE01471 value, but I have to try to figure out what sensor is providing it....
I have also physically checked with my hand on the compressor when the AC button is cycled on and off that it doesn't engage.

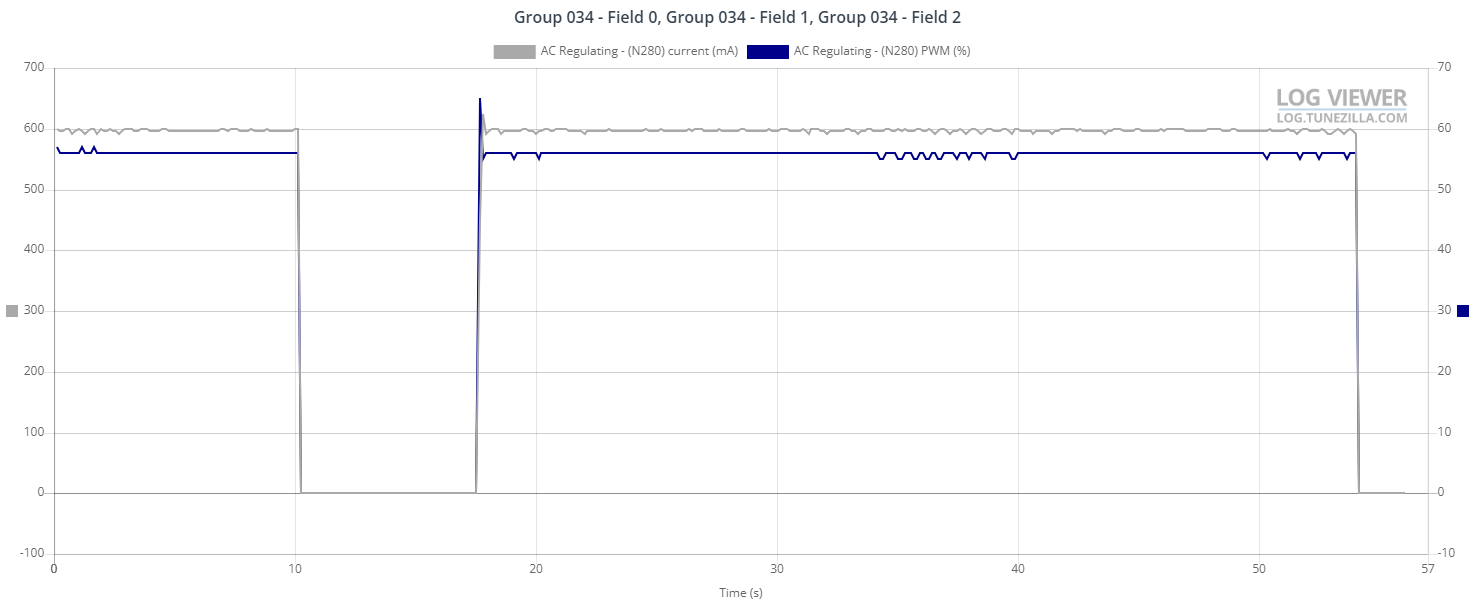

Right now, my speculation is that the N280 valve in the compressor is stuck.... this is based on the compressor not kicking in, the pressure not dropping, the evaporator temp not changing, and obviously the AC output not being any colder than ambient temps.

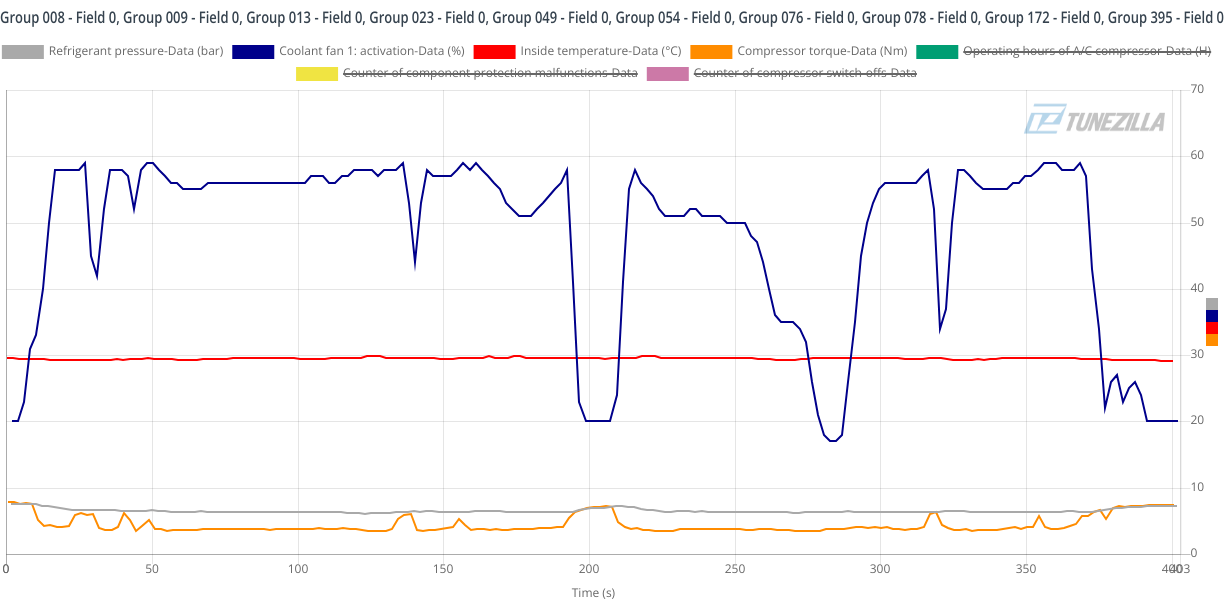

Output test was ran and passed on the rad coolant fan, so that's not an issue.
Output test of the compressor activation was refused by the controller.
I'm done poking around this for tonight, so if anyone wants to throw out some ideas, I'm eager to read them.
As some of you may recall, I was whining late last year about lower than desired AC output, but due to the inexplicable CP events that I have seen during the last 5 years of owning the vehicle, I was distracted, and didn't for a second expect a problem, so no diagnostics took place.
(see previous discussion - Component Protection - Potential Controller Software\Firmware issue )
Now that we are finally getting some warmth in my neck of the woods, it's evident that there's a more substantial issue with the system.
Bottom line is, my AC compressor doesn't kick in.
Autoscan
Code:
Wednesday,10,April,2024,19:02:35:38535
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 23.11.0.0
Data version: 20231027 DS351.0
www.Ross-Tech.com
VIN: WVGEP9BPXED013866 License Plate: TOUAREG
Mileage: 203339km-126348mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: BP-VW52 (7P6)
Scan: 01 02 03 05 08 09 10 15 16 17 19 36 42 46 47 52 53 55 56 5F
62 65 69 6C 6D 72
VIN: WVGEP9BPXED013866 Mileage: 203339km-126348miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CNRB) Labels:. 059-907-401-V2.clb
Part No SW: 7P0 907 401 K HW: 7P0 907 401 K
Component: 3.0TDI FSA H21 0011
Revision: 56H21--- CVN: E7FCBDE438D3FF82755A21130E1FC39E
Coding: 292A4012233600050000
Shop #: WSC 93288 999 00000
ASAM Dataset: EV_ECM30TDI0117P0907401K 001012
ROD: EV_ECM30TDI0117P0907401K.rod
VCID: B777000D0EDB8329B2-80E2
VINID: 9E65D58094A0A1550004320618BB2177C4
2 Faults Found:
22838 - Particulate Filter (Bank 1)
P226D 00 [11101101] - Damaged or Substrate Missing
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 202475 km
Date: 2024.04.01
Time: 06:54:32
Engine RPM: 1554.50 /min
Normed load value: 78.4 %
Vehicle speed: 78 km/h
Coolant temperature: 92 °C
Intake air temperature: 4 °C
Ambient air pressure: 960 mbar
Voltage terminal 30: 14.760 V
Unlearning counter according OBD: 40
Engine status: COENG_RUNNING
Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 3
29012 - Particulate Filter (Bank 1)
P226D 00 [11101101] - Damaged or Substrate Missing
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 202475 km
Date: 2024.04.01
Time: 06:54:32
Engine RPM: 1554.50 /min
Normed load value: 78.4 %
Vehicle speed: 78 km/h
Coolant temperature: 92 °C
Intake air temperature: 4 °C
Ambient air pressure: 960 mbar
Voltage terminal 30: 14.760 V
Unlearning counter according OBD: 40
Particle filter: soot mass measured: 8.45 g
Particle filter: soot mass calculated: 9.51 g
Particle sensor: soot volume in exhaust: 0.14 mg/m³
Particle sensor: exhaust temperature: 274.3 °C
Particle sensor: cleaning deviation reaction time: 0.120
Readiness: 1 2 0 0 0
-------------------------------------------------------------------------------
Address 02: Auto Trans (J217) Labels:| 0C8-927-7XX-V1.clb
Part No SW: 0C8 927 750 CF HW: 0C8 927 750 CF
Component: AL1000 AISIN 002 3376
Serial number: CVN: 187C4FCF
Coding: 00B168
Shop #: WSC 47391 001 104857
ASAM Dataset: EV_TCMAL991031 002115
ROD: EV_TCMAL991031_002_VW52.rod
VCID: F2E1F1192539260145-80A6
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:* 7P0-907-379.clb
Part No SW: 7P0 907 379 P HW: 7P0 907 379 A
Component: MK25A H36 0446
Revision: -------- Serial number: 408840010EC818 Dataset Number: 7P0012v____ 0001
Coding: 5B7613C349252556DAFCC89992D8A4407300
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_MK25AXT 008001
ROD: EV_ESPMK25A00800.rod
VCID: CA9149F96D290EC1DD-809E
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J393) Labels:. 8K0-907-064-05.clb
Part No SW: 4H0 907 064 FK HW: 4H0 907 064 EK
Component: BCM2 2.0 H36 0551
Revision: 00002001
Coding: 0D860000000000000000
Shop #: WSC 63086 001 1048576
VCID: F7F7C00D465B432972-80A2
Subsystem 1 - Part No SW: 4H0 905 852 B HW: 4H0 905 852 B
Component: J764 ELV MLB H40 0046
Serial number: 0213000390009010
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7P6-907-040.clb
Part No SW: 7P6 907 040 BR HW: 7P6 907 040 BR
Component: Klima 2 Zonen H21 1306
Coding: B686000A80
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_AirCondiFront 004001
ROD: EV_AirCondiFront_VW52.rod
VCID: 850BBAC504B721B970-80D0
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 4H0-907-063-V1.clb
Part No SW: 4H0 907 063 CD HW: 4H0 907 063 D
Component: BCM1 2.0 H12 0130
Revision: 15012002 Serial number: 00000001883690
Coding: 26001012D63C5D010020180780005D0C431C660882010261800000020000
Shop #: WSC 31414 790 00001
VCID: ECDDEF610F1DF0F18F-80B8
Subsystem 1 - Part No SW: 7P0 955 119 HW: 7P0 955 119 Labels: 1KX-955-119.CLB
Component: WWS 140423 033 0021
Serial number: 90243400140508230309
Coding: 004DBD
Subsystem 2 - Part No SW: 7P0 955 559 E HW: 7P0 955 559 E Labels: 8K0-955-559.CLB
Component: RLFS H10 0020
Serial number: 20317072
Coding: 025223
Subsystem 3 - Part No SW: 7P6 941 431 E HW: 7P6 941 431 E
Component: E1 - LDS H04 0031
Serial number: 00000000002005140341
Subsystem 4 - Part No SW: 4G0 907 410 A HW: 4H0 907 410 A
Component: USHL4.2 H30 0030
Serial number: 0000002274555RB6ZK03
Subsystem 5 - Part No SW: 4H0 907 705 K HW: 4H0 907 705 C
Component: EVLS-SG H08 0300
Serial number: WA108664000005784112
Coding: 010300
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7P6-919-475.clb
Part No SW: 7P6 919 475 C HW: 7N0 919 475
Component: PARKHILFE 8K H05 0026
Revision: -------- Serial number: 28231413800002
Coding: 318501
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_VW526ParkiAssis2 001012
ROD: EV_VW526ParkiAssis2.rod
VCID: C38F64DD4A03DF891E-8096
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 7P0-959-655.clb
Part No SW: 7P0 959 655 E HW: 7P0 959 655 E
Component: VW10Airbag02B H10 0043
Revision: -------- Serial number: 003NK00015FO Dataset Number: 7P6003V____ 1547
Coding: 000000000000000000000000000000003242
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_AirbaVW10BPAVW526 002001
ROD: EV_AirbaVW10BPAVW526_002_VW52.rod
VCID: C38F64DD4A03DF891E-8096
Seat occupied recognition:
Subsystem 1 - Part No SW: 7P6 959 339 HW: 7P6 959 339
Component: BF-Gewichtss. 003 0005
Serial number: 5850000R143040JLC8
Crash sensor for side airbag: driver side:
Serial number: 3575LRB40572B5M689OA
Front Passenger's Side Airbag Crash Sensor:
Serial number: 3585LRB401C50OF8B941
Rear Side Airbag Crash Sensor (on driver's side):
Serial number: 3517ARB40652KQAOP8G
Passenger side rear thorax airbag crash sensor:
Serial number: 3527ARB40652KQAOOPLH
Crash sensor for front airbag: driver side:
Serial number: 3557BRB401C50QDH8SAL
Crash sensor for front airbag: front passenger side:
Serial number: 3567BRB401C50QLON3L
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels:. 4H0-953-568.clb
Part No SW: 4H0 953 568 H HW: 7P6 953 507 M
Component: Lenks.Modul H04 0005
Revision: -------- Serial number: 01335NEE000P2
Coding: 000C15
Shop #: WSC 31414 790 00001
VCID: B87503310BC58C51BB-80EC
Subsystem 1 - Part No SW: 7P6 959 542 A HW: 7P6 959 542 A
Component: E221__MFL-TAS H04 0028
Serial number: 0047512 TRW 20140421
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 7P6-920-xxx-17.clb-SRI1
Part No SW: 7P6 920 882 M HW: 7P6 920 882 M
Component: Kombi H13 0419
Revision: 13240270 Serial number: 658210514592010
Coding: 0B3733012B000008020004
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_KombiUDSRBVW526 001020
ROD: EV_KombiUDSRBVW526.rod
VCID: C79770CD7E3BF3A9C2-8092
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:* None
Part No SW: 7P6 907 530 J HW: 7P6 907 530 F
Component: GW-CAN-L-MOST H13 6032
Revision: -------- Serial number: 00000001394142 Dataset Number: 7P6067v____ 0040
Coding: 000103AD00
Shop #: WSC 31414 790 00001
GVL: FB4F40455D7F000000
ASAM Dataset: EV_GatewVW526UDS 001007
ROD: EV_GatewUDS_VW52.rod
VCID: BF87682D26EBBB697A-80EA
Battery Monitoring Control Module:
Subsystem 1 - Part No SW: 7P0 915 181 B HW: 7P0 915 181
Component: Batt_Sensor H07 0190
Serial number: 41128155225701197223
No fault code found.
-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136) Labels: None
Part No SW: 4H0 959 760 D HW: 4H0 959 760 D
Component: MEM-FS H08 0156
Revision: AA000000 Serial number: 00000099669702
Coding: 00581B0000004001000001010101202020202121202020
Shop #: WSC 31414 790 00001
VCID: B46D370117AD683197-80E0
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:. 4H0-959-793.clb
Part No SW: 4H0 959 793 AC HW: 4H0 959 793 P
Component: TSG FA H02 0306
Revision: -------- Serial number: 0000102810077
Coding: 011D17205E00453005080000
Shop #: WSC 31414 790 00001
VCID: FAF1D93975495E410D-80AE
No fault code found.
-------------------------------------------------------------------------------
Address 46: Central Conv. (J393) Labels:. 4H0-907-064-46.clb
Part No SW: 4H0 907 064 FK HW: 4H0 907 064 EK
Component: BCM2 2.0 H36 0551
Revision: 00002001 Serial number: 0335488971
Coding: 0186163A68B9509580A00620210A08000000000000000000000000000000
Shop #: WSC 31414 790 00001
VCID: F7F7C00D465B432972-80A2
Subsystem 1 - Part No SW: 7P6 959 719 HW: 7P6 959 719
Component: GTO BT H19 0059
Serial number: 1361424141
Subsystem 2 - Part No: 1K0 951 605 C
Component: LIN BACKUP HO H05 1501
Subsystem 3 - Part No SW: 7P0 959 591 B HW: 7P0 959 591 B
Component: J245 PS30.055 H01 0008
Serial number: WOO29327928
Coding: 191100
Subsystem 4 - Part No SW: 7P0 959 591 C HW: 7P0 959 591 C
Component: J394 PS30.055 H01 0008
Serial number: WOO29447628
Coding: 191100
Subsystem 5 - Part No SW: 3AA 962 243 D HW: 3AA 962 243 D
Component: GEB.F.Heckoef H16 0811
Serial number: 93222408
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System (J525) Labels:. 8T0-035-223-BOM.clb
Part No SW: 7P6 035 466 HW: 7P6 035 466
Component: DSP Prem H01 0090
Revision: 00001001 Serial number: 10811003178507
VCID: F5EBCA055C57313960-80A0
No fault code found.
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:. 4H0-959-792.clb
Part No SW: 4H0 959 792 S HW: 4H0 959 792 M
Component: TSG BF H02 0306
Revision: -------- Serial number: 0000102860422
Coding: 011D17205E00453005080000
Shop #: WSC 31414 790 00001
VCID: C89573F17B25FCD1CB-809C
No fault code found.
-------------------------------------------------------------------------------
Address 53: Parking Brake (J540-) Labels:| 7P0-907-801.clb
Part No SW: 7P0 907 801 F HW: 7P0 907 801 F
Component: EPB H51 1201
Revision: 00000000 Serial number: C1451300316 Dataset Number: A001
Coding: 01040200
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_ParkbA7 000006
ROD: EV_ParkbA7.rod
VCID: B6690D0909D17A21A9-80E2
Slave 3:
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J745) Labels:. 7P6-907-357.clb
Part No SW: 7P6 907 357 HW: 7L6 907 357 C
Component: AFS-ECU H04 0110
Revision: -------- Serial number: -------------- Dataset Number: 7P0036v____ 0010
Coding: 010A00010F000400
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_HeadlRegulVWAFS 005006
ROD: EV_HeadlRegulVWAFS_VW52.rod
VCID: FCFDDF21777D60711F-80A8
Left_headlamp_power_output_stage:
Subsystem 1 - Part No SW: 8U0 941 329 HW: 8U0 941 329 Labels: 3D0-941-329.CLB
Component: LeiMo links H01 0003
Coding: 130000
Right_headlamp_power_output_stage:
Subsystem 2 - Part No SW: 8U0 941 329 HW: 8U0 941 329 Labels: 3D0-941-329.CLB
Component: LeiMo rechts H01 0003
Coding: 130000
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (R) Labels:. 4F0-035-0xx-56.clb
Part No SW: 4G0 035 082 G HW: 4G0 035 082
Component: Radio U SIRIU H60 0133
Revision: AB001007 Serial number: 156E.0E8010399
Coding: 020007010000000001
Shop #: WSC 31414 790 00001
VCID: A44DC741A74DF8B107-80F0
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:. 4E0-035-6xx-5F.clb
Part No SW: 7P6 035 664 F HW: 7P6 035 664 A
Component: H-BN-NA H40 0821
Revision: -------- Serial number: 273ET0EB001901
Coding: 020200050040E1EF41022B0E00000003F00001030000000000
Shop #: WSC 31414 790 00001
VCID: BB7F1C3D3AF3A74956-80EE
Subsystem 1 - Part No: 7P6 060 884 J
Component: NAR 2017/2018 1602
Subsystem 2 - Part No SW: 7P6 919 603 C HW: 7P6 919 603 C
Component: DU8 SV Touch H27 0045
Serial number: VWZ8Z9PA3007YZ
Subsystem 3 - Part No SW: 7P6 919 603 C HW: 7P6 919 603 C
Component: DU8 SV Touch H27 0045
Serial number: VWZ8Z9PA3007YZ
Subsystem 4 - Part No: 8R0 060 961 G
Component: CD-Database 5950
No fault code found.
-------------------------------------------------------------------------------
Address 62: Door, Rear Left (J388) Labels:. 4H0-959-795.clb
Part No SW: 4H0 959 795 P HW: 4H0 959 795 J
Component: TSG HL H03 0306
Revision: -------- Serial number: 0000103045387
Coding: 011817200000253005080000
Shop #: WSC 31414 790 00001
VCID: C89573F17B25FCD1CB-809C
No fault code found.
-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3Y0-907-273.clb
Part No SW: 7P6 907 273 K HW: 7P6 907 273 K
Component: RDKBERU25 H09 0009
Serial number: 10000000130690 Dataset Number: 7P6096v____ 0022
ASAM Dataset: EV_RDKBERU25 003006
ROD: EV_RDKBERU25_VW52.rod
VCID: C48D67C14F0DD8B127-8090
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels: Redir Fail!
Part No SW: 7P0 907 383 F HW: 7P0 907 383 B
Component: Anhaenger H11 0110
Revision: 5A001001 Serial number: 00008200376188
Coding: 020D000000000000
Shop #: WSC 31414 790 00001
VCID: BB7F1C3D3AF3A74956-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. Labels: 4L0-910-441.clb
Part No SW: 7P6 907 441 A HW: 4H0 907 441
Component: SG Rueckfahrkamera 0020
Revision: 00H08000 Serial number: 525 PA8J442396
Coding: 0130001
Shop #: WSC 31414 790 00001
VCID: B777000DC6DB8329B2-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (----) Labels:| 7N0-959-107.clb
Part No SW: 7P6 959 107 C HW: 7P6 959 107
Component: HDSG-Modul H10 0043
Revision: 22010001 Serial number: 131400152 Dataset Number: 7P6959107C D045
Coding: 0533314003
Shop #: WSC 31414 790 00001
ASAM Dataset: EV_HeckkTouar 202142
ROD: EV_HeckkTouar.rod
VCID: BF87682D26EBBB697A-80EA
No fault code found.
-------------------------------------------------------------------------------
Address 72: Door, Rear Right (J389) Labels:. 4H0-959-795.clb
Part No SW: 4H0 959 795 P HW: 4H0 959 795 J
Component: TSG HR H03 0306
Revision: -------- Serial number: 0000102895888
Coding: 011817200000253005080000
Shop #: WSC 31414 790 00001
VCID: C89573F17B25FCD1CB-809C
No fault code found.
End-------------------------(Elapsed Time: 05:53)--------------------------Idling, AC on - Rad fan not ramping up, compressor not turning on, AC output not cold.... controller thinks all is good... no faults, no codes, no cooling!
Code:
Wednesday,10,April,2024,19:25:02:38535
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 23.11.0.0
Data version: 20231027 DS351.0
www.Ross-Tech.com
VIN: WVGEP9BPXED013866 License Plate: AC_ON
Address 08: Auto HVAC (7P6 907 040 BR)
19:24:50
IDE00021-ENG98502 Engine RPM-Data 758 /min
IDE00198-ENG98502 Refrigerant pressure-Data 6.7 bar
IDE00380-ENG98502 Coolant fan 1: activation-Data 20.0 %
IDE00965-ENG98502 Compressor shut-off condition-Data Compressor active: no shut-off condition is present
IDE00966-ENG98502 Compressor current: actual value-Data 796 mA
IDE00973-ENG98502 Outside temperature-Data 17.00 °C
IDE00977-ENG98502 Right front vent temperature-Data 23.10 °C
IDE00982-ENG98502 Temperature downstream of evaporator-Data 24.20 °C
IDE00983-ENG98502 Inside temperature-Data 28.60 °C
IDE01239-ENG98502 Operating hours of air conditioning-Data 3986 H
IDE01471-ENG98502 Moisture sensor in fresh air intake duct: temperature-Data 164.60 °C
IDE01473-ENG98502 Refrigerant pressure sensor: status-Data OKSame conditions as above, but AC off - not changes in pressure or fan speed, etc.
Code:
Wednesday,10,April,2024,19:25:34:38535
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 23.11.0.0
Data version: 20231027 DS351.0
www.Ross-Tech.com
VIN: License Plate: AC_OFF
Address 08: Auto HVAC (7P6 907 040 BR)
19:25:18
IDE00021-ENG98502 Engine RPM-Data 757 /min
IDE00198-ENG98502 Refrigerant pressure-Data 5.7 bar
IDE00380-ENG98502 Coolant fan 1: activation-Data 20.0 %
IDE00965-ENG98502 Compressor shut-off condition-Data AC button off
IDE00966-ENG98502 Compressor current: actual value-Data 0 mA
IDE00973-ENG98502 Outside temperature-Data 16.50 °C
IDE00977-ENG98502 Right front vent temperature-Data 23.50 °C
IDE00982-ENG98502 Temperature downstream of evaporator-Data 24.30 °C
IDE00983-ENG98502 Inside temperature-Data 28.60 °C
IDE01239-ENG98502 Operating hours of air conditioning-Data 3986 H
IDE01471-ENG98502 Moisture sensor in fresh air intake duct: temperature-Data 164.60 °C
IDE01473-ENG98502 Refrigerant pressure sensor: status-Data OKI'm not liking this IDE01471 value, but I have to try to figure out what sensor is providing it....
Code:
Wednesday,10,April,2024,19:28:37:38535
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 23.11.0.0
Data version: 20231027 DS351.0
www.Ross-Tech.com
Address 08: Auto HVAC (7P6 907 040 BR)
19:28:29
IDE00198-ENG98502 Refrigerant pressure-Data 6.4 bar
IDE00380-ENG98502 Coolant fan 1: activation-Data 20.0 %
IDE00965-ENG98502 Compressor shut-off condition-Data Compressor active: no shut-off condition is present
IDE00966-ENG98502 Compressor current: actual value-Data 664 mA
IDE00971-ENG98502 Coolant fan activation: specified value-Data 8.3 %
IDE00977-ENG98502 Right front vent temperature-Data 23.70 °C
IDE00982-ENG98502 Temperature downstream of evaporator-Data 24.50 °C
IDE00983-ENG98502 Inside temperature-Data 28.80 °C
IDE01239-ENG98502 Operating hours of air conditioning-Data 3986 H
IDE01471-ENG98502 Moisture sensor in fresh air intake duct: temperature-Data 164.60 °C
IDE01473-ENG98502 Refrigerant pressure sensor: status-Data OKI have also physically checked with my hand on the compressor when the AC button is cycled on and off that it doesn't engage.
Right now, my speculation is that the N280 valve in the compressor is stuck.... this is based on the compressor not kicking in, the pressure not dropping, the evaporator temp not changing, and obviously the AC output not being any colder than ambient temps.
Output test was ran and passed on the rad coolant fan, so that's not an issue.
Output test of the compressor activation was refused by the controller.
I'm done poking around this for tonight, so if anyone wants to throw out some ideas, I'm eager to read them.
