@senna1

I replied to your e-mail from the Support account late yesterday but we haven't received confirmation of the VIN so posting here may be best. If that mail ended up in your Junk/Spam folder the content was:
Code:
Date: Mon, 12 Dec 2022 17:50:40 -0500

Hi Dave,

I located that thread:

https://forums.ross-tech.com/index.php?threads/35084/

We would be using VIN specific Parts catalog, PR-Code and repair
information as well so if any if the information in your forum thread is
incorrect it may be directly tied to the diagnostic VIN.  Please verify
this 2014 MY VIN matches the vehicle:

Vehicle Identification No. WV1ZZZ7HZEH037985
Model Transp. panel van Blue Motion TR
Date of production 13.09.2013
Year 2014
Sales type 7EA166
Engine Code CAAD
Transmission Code PCB

If that's a match (rather than a donor/parts van VIN) the full part
number of the BCM should have been: 7E0-937-090/Z29.  Please check the
box and/or receipt for the new BCM to verify that exact number,
including index code Z29, is printed on it.

If the VIN and replacement BCM are confirmed correct that will be the
best starting point to try to get all 3 address that it handles (09, 19
and 61) coded correctly.

Regards,
Dana

If that's correct we can try to make coding suggestions for addresses 09, 19 and 61. Assuming the installed controllers are correct that may eliminate the main issues in this thread in addition to: https://forums.ross-tech.com/index.php?threads/35157/

In the meanwhile I'd try coding 01-Engine to: 0111401A232401080000

  • Like
Reactions: Uwe
   #22

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
Providing that is accurate the PR-Code data should be very helpful to anyone assisting. If this is not the correct VIN we can edit it later:
Code:
Vehicle identification
Vehicle data
Attribute Vehicle data
Vehicle Identification No. WV1ZZZ7HZEH037985
Model Transp. panel van Blue Motion TR
Date of production 13.09.2013
Year 2014
Sales type 7EA166
Engine Code CAAD
Transmission Code PCB
Axle drive 5S
Equipment RE
Roof color 4Y
Exterior color / Paint Code 4Y / A3H
PR Number
Attribute Description
Wheelbases 0E1 Shorter wheelbase
Differentiation for manufacturing
process
0FA Standard manufacturing sequence
Transmission types/gear shift
mechanisms
0G4 Cable gearshift
Weight category for front axle 0JC Weight category front axle weight range 3
Labels (customer specific or
campaigns)
0KY With special sticker
Special labels 0SS Labels in English and French
foot mats 0TA without foot mats
Owner's manuals 0VF Information kit in English
permissible total weight 0WZ Gross vehicle weight rating
Climate zones 0Y1 Standard climatic zones
Weight category for rear axle 0YA Weight range 1 installation control only, no requirement
forecast
Final drive/gear ratio 0ZN Gear ratio, high geared
Brake systems 1AK Electronic stability control (ESC) with brake assist system
Shock absorption/suspension system 1BA Standard suspension/shock absorption
Vehicle class differentiation
powertrains/platform parts
1CP Vehicle class differentiation -7E0-
Trailer hitch 1D0 Without trailer hitch
Identification labels 1EV Special identification label for EC for commercial vehicles
Spare wheel/breakdown kit 1G8 Breakdown kit
Labels 1HN Labels for country group 13
Air filter (engine) 1L0 Standard air filter
Steering system 1N1 Power steering
Wheel trims 1NE Hub cap
Lockable wheel bolts 1PA Standard wheel bolts
Vehicle tools and jack 1S2 Tool kit
First aid kit/warning triangle 1T0 Without first aid kit and warning triangle
Folding table 1U0 Without table
Cool box 1W0 Without refrigerator/glove compartment cooling system
Differential lock 1Y0 without differential lock
Fuel filling volume 1Z0 Initial standard fuel filling
Delivery equipment 2A0 Without delivery equipment
Chassis 2E3 16-inch chassis
Tank filler neck for unleaded fuel/fuel
type
2G2 Without insert for the filling up (diesel) without fluorination
(not RME-resistant)
Bumper 2JB Standard bumpers
Sound deadening measures 2N1 Standard anti-drum measures
Loading edge protector 2P1 Plastic loading edge protection
Steering wheels 2PG Steering wheel
Modular seat mounting 2Q0 Without modular seat mounting
Nameplate set 2QA Nameplate set Transporter
Fresh air intake for vehicle interior
(with particle filter)
2V1 dust and pollen filter
Additional tires (snow tires) 2WA without spare tyre
Additional child seat anchorage 3B0 Without additional child seat anchors
Partition 3CF Partition without window
Leather parts 3HA Without leather parts scope
Head restraints 3J6 Narrow head restraints, height-adjust.
Roof insert in cab/load compartment 3JA Without roof insert in load and passenger compartment
Seat adjustment 3L2 Manual height adjustment for right front seat
Special approval measures 3M2 Light truck design
Roof types 3R0 Standard roof
Rear doors/tailgate/trunk lid 3RB Tailgate without window aperture
Roof rails/roof rack 3S0 Without roof rails/roof load rack
Seat in front, right 3SH Seat in cab, right
Seat in front, left 3TJ 2-seater bench in cab, left
Luggage compartment cover 3U0 Without luggage compartment cover
Second row of seats 3UA without seats
Third row of seats 3VA without seats
Sound insulation measures for
interior noises
3W0 Without additional noise suppression measures for passenger
compartment
4th row of seats 3WA Without bench
Sun blind for rear/side windows 3Y0 without roll-up sun screen
Door storage compartments in front 3YQ Door pockets without insert mats
seat heater 4A0 without seat heater
Protective side molding 4B0 with no protective side strip
Closing/opening mechanism
tailgate/trunk lid/rear gate
4E0 Tailgate/trunk lid unlocking from outside
Rear side window in load/passenger
compartment, left
4FA Without side window opening in the rear left luggage
compartment
Windshield 4GF Heat-reflecting windshield
child safety 4H0 Without child safety lock in passenger compartment
Rear window insert 4HA Without rear window
Rear side window in load/passenger
compartment, right
4JA Without side window opening in the rear luggage compartment
on the right
Door and tailgate/trunk lid locking
mechanism
4K3 Central locking w/ radio remote control, interior controls and
SAFELOCK
Breakaway interior rearview mirror 4L3 Without safety rearview mirror
Controls (steering wheel/steering
column)
4LA Without control element
Dashboard 4N2 Instrument panel standard
Window regulator 4R1 Power windows
Armrests for front seats 4S3 Armrest for right front seat
Vanity mirror on the left 4SA Without left-hand vanity mirror
Vanity mirror on the right 4TA Without right-hand vanity mirror
Airbag 4UF Airbag for driver and front passenger with front passenger
airbag deactivation
Side airbag 4X0 without side airbag
Storage compartment 4Y0 Without storage compartment/safe box
Floor covering in cab 5AC Rubber floor covering in cab
Floor covering in passenger/load
compartment
5BA Without floor covering in passenger/ load compartment
Body measures 5C0 Without special body measures
Roof trim 5CL Roof trim in cab as comfort headliner, in load compartment
with hardboard
Carrier frequency for remote control 5D1 Carrier frequency 433.92 to 434.42 Mhz
Lateral interior trim, passenger/load
compartment
5DV Side trim panel for basic equipment (extended)
Storage compartments in cab 5FA Without additional storage in the cab
Curtains/sunshades 5G0 Without curtains
Paint preservation/transport
protection
5K0 Without surface protection, with additional transport protection
measures
Grab handles at roof frame 5N2 Folding grab handles at roof frame
Hood prop/tailgate vent lock 5NC Standard tailgate vent lock
Passenger/load compartment doors,
left
5Q2 Sliding door left in load/passenger compartment
Passenger/load compartment doors,
right
5R0 Without doors in passenger/load compartment right (closed
sideboard)
Right exterior mirror 5RV Right exterior mirror, aspherical
Left exterior mirror 5SJ Left exterior mirror, convex
Inserts 5TC No trim inlay
Hinges for side-/tailboards/ rear door 5V3 Hinges for rear door/flap (normal version)
Door and side trim panels 5YE Unpainted door trim panel (plane)
Lashing rings/rails for load restraint
system
6B7 Lashing rings for load restraint system
Rear heating/ventilation 6CA Without rear heating/ventilation duct
Components with special surfaces 6FA Components without special surface appearance
Radiator grille 6KA Radiator grille
C rails 6L0 Without C-rails
Mud flaps 6N0 without mud flaps
Additional dust seals 6U0 Without additional seals outside
Entry grab handle (A/B-pillar) 6X0 Without entry grab handle
Exterior mirror adjustment 6XN Exterior mirrors, power-adjustable/ separately heated
Theft protection system 7AJ Electronic immobilizer, with anti-theft alarm system and backup
horn
Outlet 7B0 without electrical socket
Tire pressure monitoring system 7K6 Tire pressure monitoring system
Start-stop system/regenerative
braking
7L6 Start-stop system with regenerative braking
Emission standard 7MJ Emission standard EU5 plus
Lumbar support in backrests 7P6 Manually adjustable lumbar support for right front seat
Navigation system 7Q0 not with navigation system
CD-ROM/DVD/SD card 7QA Without CD/DVD for navigation
Dashboard illumination 7V2 Dashboard illumination, not dimmable
Park distance control 7X0 Without park distance control
Lane change system/lane keeping
system
7Y0 No lane change assistant
Main headlamps 8BF Halogen main headlamps for left-hand traffic
Second battery/battery installation 8FA without 2nd battery
Alternators 8GU Alternator 140 A
Headlight control 8K1 Separate daytime running light
Intermittent windshield wiper
control/ light/rain sensor
8N1 Windshield wiper intermittent control
Headlight range control 8Q1 Headlight range control
Key for locking system 8QJ Key for locking system with remote control
Loudspeaker installation 8RD 2 speakers (passive)
Rear combination lamps 8SA Rear combination lamp, standard design
cruise control system 8T1 Cruise control system (CCS)
rear fog lamp 8TD Rear fog lamp for driving on the left
Radios 8UA Radio with CD player
Front fog lamps/additional headlamps 8WA Without fog lights
Headlamp washer system 8X0 Without headlamp washer system
Horns 8Y0 Single-tone horn
Engine cooling 8Z5 not hot country
Heating system/air conditioning
system
9AP Climatic air-conditioning system (semi-automatic)
Interior lighting in load/passenger
compartment
9CU Standard interior lights in passenger/ load compartment
Roof turn signals 9H0 Without roof turn signals
Smoker's/non-smoker's version 9JA Non-smoker version
Roof identification lights 9KA Without identification lights
Rotating beacon/siren combination
/rotating beacon
9LA Without rotating beacon
Auxiliary heater 9M0 Without auxiliary heater/parking heater
Side step illumination 9N0 Without step illumination
Tachograph/driver's logbook 9NA Without tachograph
Seat belt reminder 9P1 Seat belt reminder, electric contact in buckle
Multi-function display/trip computer 9Q0 Without multi-function display/ trip computer
Telephone/telematics 9W0 Without car phone preparation/ installation
Multimedia/video/DVD/notebook
connection
9WC Without "Multimedia" in vehicle
Operating voltage 9Z0 Operating voltage 12 V
Equipment lines A8B base equipment level
Cooker (camping) AE0 Without camping stove
Stowage compartments AF0 without stowage compartment
Market-specific vehicle type AW6 BlueMotion version
Type-approval testing countries/
countries with specific requirements
B09 Type approval country GB/Northern Ireland
Part set for country-specific
prescriptive standards
B0A parts set (non-country specific fitting instruction)
Wheels C1G Steel wheels 6.5J x 16
General operating license additions C33 Operating permit, alteration
Engine specification DK3 4-cyl. turbo dies. eng. 2.0 l/84 kW (4V) TDI common rail base
engine is TW3/TP5
Special editions E0A no sales compaign version
Follow-on warranty EA0 Without follow-on warranty
Outlet in front EU0 Without socket in front
Vehicle specifications F0A No special purpose vehicle, standard equipment
Customized installation FC0 Without customized installation
Variants FM0 Basic equipment variant
Transmission specification G0J 5-speed manual transmission different spread of gear ratio
Model upgrade measures GP0 Vehicles without special upgrade measures
Power-operated door (power
latching) on the right
GX0 Manually operated doors
Power latching for tailgate/trunk lid GY0 Without power latching for tailgate
Power-operated door (power latching) GZ0 Manually operated doors
Tires 215/45 R16 86V H67 Tires 215/65 R16C 106/104T low rolling resistance
Batteries J2D Battery 380 A (68 Ah)
Body forms K4A Panel Van
Steering system setup L0R Right-hand drive
Seat trim covers N0P Seat trim covers in woven fabric
Awning NF0 Without awning
Emblems (interior) NR0 Without emblems (interior)
Battery/alternator capacities NY0 Standard battery/alternator capacity
Child seats QA0 without child seat
Storage compartment package QE0 Without storage compartment package/box
LongLife Service Regime QG1 LongLife Service Regime
Service indicator QI8 Service indicator 40 000 km or 2 years ( variable )
Chrome package QJ0 No aluminium/chrome package
Window type (except for windshield) QL3 Heat-reflecting glass (green)
TV reception/digital radio reception QV0 Without TV reception/digital radio reception
Base engine TW3 4-cylinder diesel engine 2.0 l unit 03L.K
Dashboard inserts U5B Instrument cluster, mph speedometer -Great BritainElectric interface for external use UF0 Without electric interface
Tire suppliers V0A Tires without specification of tire brand
Voice enhancer VX0 Without voice enhancer
W53 Rear door package B
W55 SE package
WF3 Great Britain

   #23

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi Dana
Thanks for the info, yes the VIN is correct, i will let you know the Part number for BCM exact,, i need to find out exactly if this vehicle
is a start / stop type and the production date Date is 13.09.2013,, This should mean the BCM should have the j533 gateway integrated inside the J519
Can you confirm this, because my understanding is the J533 Is not Integrated in the BCM for stop/start until after october 2012.
There is nothing in the area where the J533 Red 20 pin connector would or should be, i dont know if someone has removed it,, if it was there as this van has been played with regarding the wiring, Going by the production vehicle build date then it would make sence NO red J533 It should be integrated in the BCM J519. yes the BCM part number you list is the same as the new one here. 7E0937090/Z29 also has on the label which i assume is the date 02.02.21

Last edited:
   #24

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
Hi Dave,

Excellent. I'll check into baseline coding to see what we can offer you based on that VIN/PR-Codes. Since all 3 addresses use the same HW number I'm confident they are all part of the BCM:

Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb​
Part No SW: 7E0 937 090 HW: 7E0 937 090
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb​
Part No SW: 7E0 909 901 HW: 7E0 937 090
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb​
Part No SW: 7E0 907 534 HW: 7E0 937 090

In regards to Start/Stop, that was factory equipped. Per the wall of text in post #22 that is PR-Code: 7L6 Start-stop system with regenerative braking

I'll report back here with any coding suggestions we have. In the meanwhile do let us know if 7E0-937-090/Z29 was on that new BCM, the box it came in or the dealer invoice.

  • Like
Reactions: Uwe
   #25

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
This the info on the BCM is 7E0-937-090/Z29 SO IS THE J533 INSIDE THE BCM as i think it should be ,, based on if it is a build date of 2013

   #26

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Dana
what does this mean is it a code for 7L6 is it correct this transporter 2013 all it quotes is from may 2011,

   #27

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631

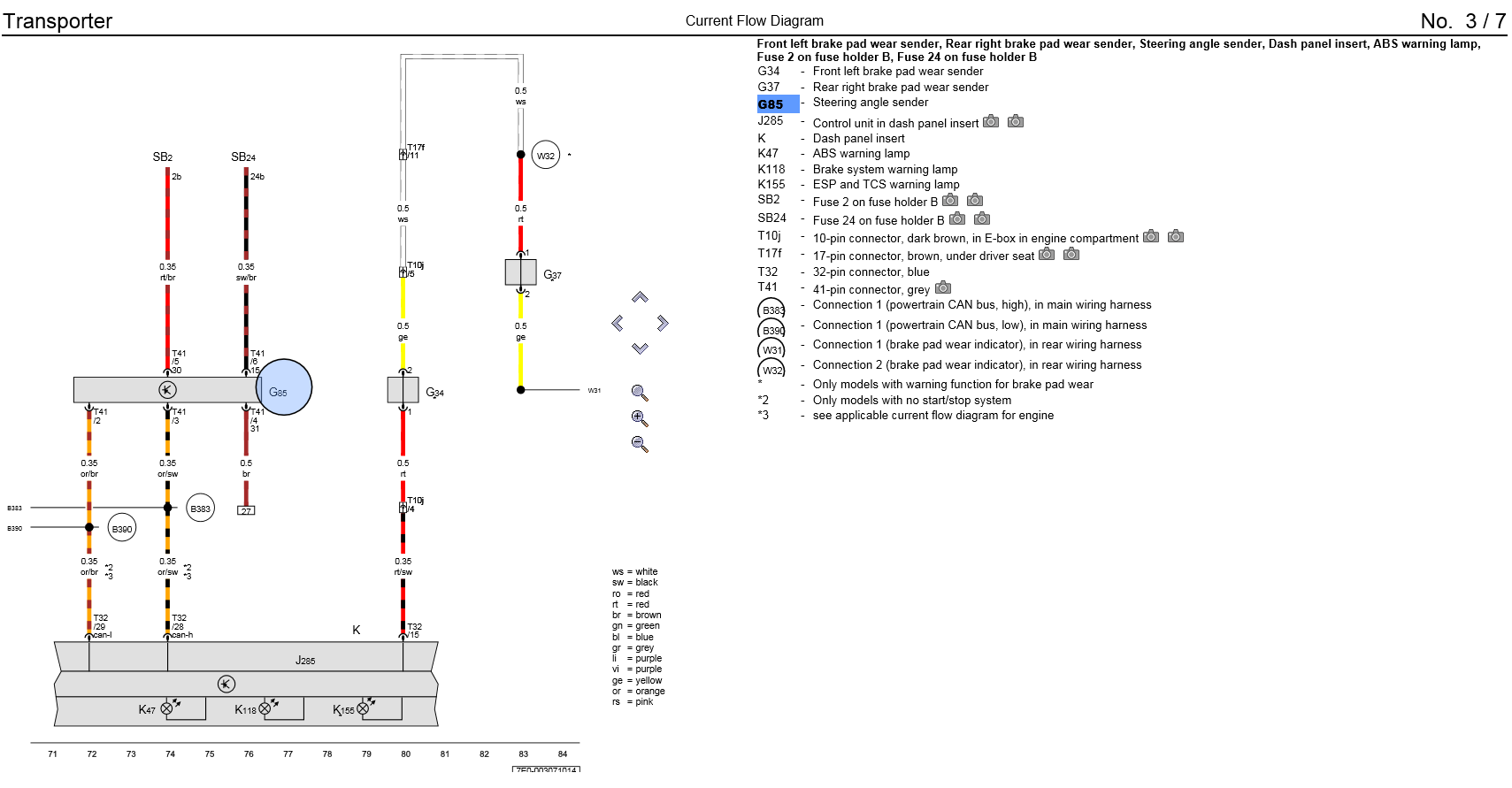

also do you know where the two CAN BUS resistors are terminated, i'm guessing one in the BCM & the other in the Engine Ecu,

   #28

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
After looking into this I have some suggestions:

1) I initially suggested 01-Engine coding of 0111401A232401080000 but after realizing this is 9M0 Without auxiliary heater/parking heater I tweaked that. Go with this as a starting point instead:

01114012232401080000

2) Starting point for 19-CAN Gateway coding: 042300

3) Starting points for 61-Battery Regul coding include one of these versions. Please try them in this order if the 1st doesn't allow you to clear 01044 - Control Module Incorrectly Coded:

030B1A73
230B1A73

4) Address 09-Cent. Elect is going to require some digging followed by trial and error. I honestly would leave that alone for now but these were the closest RHD strings I found:

A0A0303A0A612431802849702E2B8C540780610F7E064C41320000020000
A2A0303A0E212032002807712E2B8DD40280670F7E051841300000000000
A0A0303A0E212031000008103C2B8C140000430F60060000300000000000

I would consider those extremely experimental at best if you were to use those without breaking down each Byte.

5) Final closing comments. This van was factory equipped with a RCD of some sort (likely RCD-210) and the Radio they have installed looks like a Chinese market part number. If coding addresses 01, 19 and 61 followed by clearing ALL DTCs doesn't resolve most of the issues I would pull that radio out and keep it out until the major concerns such as the missing/offline Steering Angle HVAC and Airbag units are back online and communicating.

Please post the Auto-Scan after the above suggestions so we can see if there was any measurable progress.

   #29

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi Dana
can you answer my other questions, Regarding Can bus resistors location and 7L6 reference etc, I have not used VCDS for a long time for coding, can you direct me, 01. 19. & 61. how to code these modules, i know the long coding is in bytes of information and by clicking you can see what options.

   #30

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
7L6 is it correct this transporter
Yes, the full list of VIN specific PR-Codes is in post #22

PR-Codes are explained here:

do you know where the two CAN BUS resistors are terminated

No, this van isn't sold here and that's beyond the scope of VCDS application support we can offer. I would not worry about those communication issues until addresses 01, 19 and 61 are coded. The scan after using my coding suggestions will allow us to see if there was any improvement.
how to code these modules
Coding is explained on this page of our interactive manual:



Various videos can be found here:


The :29 - 1:14 mark of this one has a similar example with the exception of using 03-ABS instead of the exact addresses in question here:


   #31

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi Dana
i will try the coding, but i think as the vehicle was supposed to coded by company who installed the modules by ODIS
i think the reason why we have the faults signal / no comms is i did Can bus checks and the values are not what they should be
and long story short i found te wiring has been hacked about with stray Can bus H & L wires left out of the circuit , so no comms

I have seen PR Codes before usually on a label in th vehicle, i will take a look at the info you list for coding etc, Thanks

   #32

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Dana
i assume the coding are soft and long are there any basic setting to be done,

   #33

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi Dana

I ve been busy with Can bus wiring checks,, CODING today 01 Engine Ecu i tried the suggested tweeked coding under 07 coding
01114012232401080000 and it refused it said The wrong length so i tried the ist one 0111401A232401080000 & it said Accepted.

Next i tried CAN Gateway 19, With the suggested coding 042300, But the current Coding is the Same 042300
Next i tried the Battery 61 Current coding F2001800 i tried the fist coding 030B1A73 NO JOY, i tried the second
230B1A73 & accepted i deleted the dtc for Battery, Then did a full scan, then did a fullscan after a delete, here are both scans.
Code:
Thursday,22,December,2022,13:27:20:51242
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 22.10.0.1 (x64)  HEX-NET2 CB: 0.4623.4
Data version: 20221026 DS344.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZEH037985   License Plate: T5 FULLSCAN THURS 22-12-22
Mileage: 20km-12mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 0D 15 17 19 25 56 61 0B

VIN: WV1ZZZ7HZEH037985   Mileage: 20km-12miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: Cannot be reached 1100
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
0D-Slide Door, Left -- Status: OK 0000
15-Airbags -- Status: Cannot be reached 1100
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAD)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 FH    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H38 6293
   Revision: 22H38---    Serial number: 00000000000000 CVN: 13593D87
   Coding: 0111401A232401080000
   Shop #: WSC 07051 005 104857
   ASAM Dataset: EV_ECM20TDI01103L906019FH 003007
   ROD: EV_ECM20TDI01103L906019FH_003.rod
   VCID: 76BE8932E84BBF1BC1E-8022
   VINID: 9E606AAAA1D8A956000C724814F66D2210

12 Faults Found:
16703 - Gear Reconition Sensor
          P181C 00 [039] - Implausbile Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:37

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: 20.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4481 - Cruise Control Switch (E45)
          P0568 00 [039] - Implausible Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:37

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

4482 - Function Restriction due to Implausible Message(s)
          U1112 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 3
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:37

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

5250 - Function Restriction due to Faults in Other Modules
          U1113 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:38

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Longitudinal acceleration: raw value: 32.767 m/s²
                    Vehicle inclination acceleration angle: raw value: 0.000 m/s²
                    Status: incline angle-Bits 0-7: 1
                    Longitudinal acceleration: 0.000 m/s²
                    Longitudinal acceleration sensor: status-Bits 0-7: 1
                    Vehicle lateral acceleration: raw value: 0.00 g
                    Vehicle lateral acceleration: 0.00 g

10092 - Neutral Gear Sensor
          P15A0 00 [039] - Electrical Malfunction
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:38

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: -14.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4708 - No Communications with HVAC Control Module (J301)
          U0164 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:38

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4710 - No Communications with Airbag Control Module
          U0151 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:38

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4729 - Steering Effort Control Module
          U0130 00 [039] - No Communications
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:18:38

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.100 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

5046 - Fuel Injector #1 (N30)
          P0263 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5044 - Fuel Injector #3 (N32)
          P0269 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5047 - Fuel Injector #4 (N33)
          P0272 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5043 - Fuel Injector #2 (N31)
          P0266 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 K    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0110
   Revision: 00H43001
   Coding: 508724AD89A70A9C24AB9179B96390
   Shop #: WSC 07051 005 49152
   VCID: 3A265D029C531B7BE56-806E

8 Faults Found:
01317 - Control Module in Instrument Cluster (J285)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 256
                    Count: 8242
                    Count: 766

03391 - Coding Not Possible
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 256
                    Count: 8254
                    Count: 766

00474 - Control Module for Immobilizer
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 256
                    Count: 8211
                    Count: 766

01299 - Diagnostic Interface for Data Bus (J533)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 256
                    Count: 8233
                    Count: 766

01279 - Longitudinal Acceleration Sensor (G251)
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Fault Status: 01100101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 20:52:48

             Freeze Frame:
                    Count: 16384
                    Count: 256
                    Count: 212
                    Count: 766

01314 - Engine Control Module
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:16:04

             Freeze Frame:
                    Count: 16384
                    Count: 256
                    Count: 8193
                    Count: 766

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 20:52:49

             Freeze Frame:
                    Count: 16384
                    Count: 0
                    Count: 8214
                    Count: 766

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 256
                    Count: 8226
                    Count: 766


-------------------------------------------------------------------------------
Address 08: Auto HVAC
Cannot be reached

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 342200003
   Coding: 24982BBB0C610000000000302E4B0C800F00400F60040850200000000000
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

4 Faults Found:
00329 - Control Circuit for Unlocking Rear Lid
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:14:52

00975 - Heated Rear Window (Z1)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:14:54

00446 - Function Limitation due to Under-Voltage
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 44
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:14:51

01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 4
                    Reset counter: 255
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:15:34


-------------------------------------------------------------------------------
Address 0D: Slide Door, Left
Cannot be reached

-------------------------------------------------------------------------------
Address 15: Airbags
Cannot be reached

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 960 JX    HW: 7E0 920 960 JX
   Component: KOMBI         H04 0709
   Serial number: 00000000000000
   Coding: 460201
   Shop #: WSC 07051 005 1048576
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
   VCID: 0842F7CA92BFB9EBA32-805C

2 Faults Found:
12605440 - Databus
          U1201 00 [008] - No Communications
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 5
                    Reset counter: 44
                    Mileage: 27 km
                    Date: 2022.12.21
                    Time: 23:01:27

12669184 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergerät für Airbag: keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Date: 2022.12.21
                    Time: 23:15:36


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042300
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

3 Faults Found:
01336 - Company Data Bus for Comfort System
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 1
                    Fault Frequency: 214
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:14:54

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:15:35

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.21
                    Time: 23:15:35


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0709
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A86AD42ACF36BFB556-803E

1 Fault Found:
13762816 - Databus
          U1201 00 [008] - No Communications
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 5
                    Reset counter: 44
                    Mileage: 27 km
                    Date: 2022.12.21
                    Time: 23:01:27


-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 342200003
   Coding: 230B1A73
   Shop #: WSC 01693 210 00002
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No SW: 7E0 915 181 B    HW: 7E0 915 181 B
   Component: J367-BDM  H08 0181
   Serial number: 50238G45562221010723

No fault code found.

End----------(Elapsed Time: 00:56, VBatt start/end: 12.1V/12.2V)-----------


second scan
Code:
Thursday,22,December,2022,13:29:53:51242
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 22.10.0.1 (x64)  HEX-NET2 CB: 0.4623.4
Data version: 20221026 DS344.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZEH037985   License Plate: T5 FULLSCAN AFTER DELETES 22-12-22
Mileage: 20km-12mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 0D 15 17 19 25 56 61 0B

VIN: WV1ZZZ7HZEH037985   Mileage: 20km-12miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: Cannot be reached 1100
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
0D-Slide Door, Left -- Status: OK 0000
15-Airbags -- Status: Cannot be reached 1100
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAD)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 FH    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H38 6293
   Revision: 22H38---    Serial number: 00000000000000 CVN: 13593D87
   Coding: 0111401A232401080000
   Shop #: WSC 07051 005 104857
   ASAM Dataset: EV_ECM20TDI01103L906019FH 003007
   ROD: EV_ECM20TDI01103L906019FH_003.rod
   VCID: 76BE8932E84BBF1BC1E-8022
   VINID: 9E606AAAA1D8A956000C724814F66D2210

8 Faults Found:
16703 - Gear Reconition Sensor
          P181C 00 [039] - Implausbile Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: 20.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4481 - Cruise Control Switch (E45)
          P0568 00 [039] - Implausible Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

4482 - Function Restriction due to Implausible Message(s)
          U1112 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

5250 - Function Restriction due to Faults in Other Modules
          U1113 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Longitudinal acceleration: raw value: 32.767 m/s²
                    Vehicle inclination acceleration angle: raw value: 0.000 m/s²
                    Status: incline angle-Bits 0-7: 1
                    Longitudinal acceleration: 0.000 m/s²
                    Longitudinal acceleration sensor: status-Bits 0-7: 1
                    Vehicle lateral acceleration: raw value: 0.00 g
                    Vehicle lateral acceleration: 0.00 g

10092 - Neutral Gear Sensor
          P15A0 00 [039] - Electrical Malfunction
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: -14.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4708 - No Communications with HVAC Control Module (J301)
          U0164 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4710 - No Communications with Airbag Control Module
          U0151 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4729 - Steering Effort Control Module
          U0130 00 [039] - No Communications
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 K    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0110
   Revision: 00H43001
   Coding: 508724AD89A70A9C24AB9179B96390
   Shop #: WSC 07051 005 49152
   VCID: 3A265D029C531B7BE56-806E

4 Faults Found:
01279 - Longitudinal Acceleration Sensor (G251)
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Fault Status: 01100101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:42

             Freeze Frame:
                    Count: 16384
                    Count: 4352
                    Count: 212
                    Count: 766

01314 - Engine Control Module
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:42

             Freeze Frame:
                    Count: 16384
                    Count: 4352
                    Count: 8193
                    Count: 766

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:44

             Freeze Frame:
                    Count: 16384
                    Count: 4096
                    Count: 8214
                    Count: 766

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:44

             Freeze Frame:
                    Count: 16384
                    Count: 4352
                    Count: 8226
                    Count: 766


-------------------------------------------------------------------------------
Address 08: Auto HVAC
Cannot be reached

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 342200003
   Coding: 24982BBB0C610000000000302E4B0C800F00400F60040850200000000000
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

3 Faults Found:
00329 - Control Circuit for Unlocking Rear Lid
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:43

00975 - Heated Rear Window (Z1)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:45

01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:43


-------------------------------------------------------------------------------
Address 0D: Slide Door, Left
Cannot be reached

-------------------------------------------------------------------------------
Address 15: Airbags
Cannot be reached

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 960 JX    HW: 7E0 920 960 JX
   Component: KOMBI         H04 0709
   Serial number: 00000000000000
   Coding: 460201
   Shop #: WSC 07051 005 1048576
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
   VCID: 0842F7CA92BFB9EBA32-805C

1 Fault Found:
12669184 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergerät für Airbag: keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Date: 2022.12.22
                    Time: 00:28:44


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042300
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

3 Faults Found:
01336 - Company Data Bus for Comfort System
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:44

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:43

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.22
                    Time: 00:28:43


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0709
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A86AD42ACF36BFB556-803E

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 342200003
   Coding: 230B1A73
   Shop #: WSC 01693 210 00002
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No SW: 7E0 915 181 B    HW: 7E0 915 181 B
   Component: J367-BDM  H08 0181
   Serial number: 50238G45562221010723

No fault code found.

End----------(Elapsed Time: 00:56, VBatt start/end: 12.2V/12.2V)-----------

Last edited by a moderator:
   #34

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
Excellent, I'm glad you got those modules to accept somewhat realistic coding. 01 and 09 will likely require some additional tweaks but the newest scan looks better despite the lack of 04, 08 and 15 communication.

Although getting 56 off the databus does not appear to have helped I would leave that 56-Radio unplugged for now.

Moving forward on the scan result/coding side I do not think we have any identical match reference scans but this may be the next best thing:


At the very least you can expect similar control modules to come online as some of the additional issues are resolved. I think it woudl be fairly safe to copy that 09-Cent. Elect coding and test it out on this van. Make sure a battery charger is connected while doing so. That is:

A0A0303A0A612431802849702E2B8C540780610F7E064C41320000020000

Next, I would focus on the lack-of communication related to 04-Steering Angle and 15-Airbags. Both of those are on Powertrain CAN and G85 Steering Angle looks like the easier starting point. We need to tread VERY lightly when it comes to wiring diagrams in forum but that only appears to require 2 fused powers, a ground and CAN high/low:


I'd make sure fused power from SB2 and SB24 are present at G85.

  • Like
Reactions: Uwe
   #35

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi
Tanks for the reply, Regarding the coding for CAN Gateway 19 you suggested which was the same as what was already in place,
do you have any suggestions for that, or are we going with 09, A0A0303A0A612431802849702E2B8C540780610F7E064C41320000020000
as the Can gateway J533 is integrated in the J519. you can see the main problems are signal/comms,
i use Elsawin for wiring , i will try the suggestions & get back to you, regards

   #36

Dana

Administrator
Staff member
Administrator
Ross-Tech Employee
Joined
Jan 29, 2014
Messages
6,051
Reaction score
9,077
Location
Western PA, USA
Yes, I would leave 19 coding alone for now.

With any luck coding 09 (since it is part of the same unit) to the new value helps. However, if it would cause new problems for any reason you can always change it back to the current value.

  • Like
Reactions: Uwe
   #37

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
yes i save the original data just incase,

   #38

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi
I tried coding 09, A0A0303A0A612431802849702E2B8C540780610F7E064C41320000020000 it was accepted. But
No Joy, except when you put the ignition On you hear the Central locking click,
As you had 3 codings for RHD listed at #28 Which includes the one tried today, as we are now at Christmas i will try the other 2, strings
and i have saved the original coding,, i checked the fuses SB2 SB24 for the G85 & The others SB SC some by my diagrams list fuses but there is no fuse or connectors for a fuse just blank,, although i had previously, Checked the fuses all good and power is there to them, i also did some checks linked to
the T73/B & T73/A at the j519/j533
I need to get the G85 assembly connector off so i can trace the pins from there, but it is a bit tricky to get it it off,
Here is the scan from today

Code:
Saturday,24,December,2022,16:18:46:51242
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 22.10.0.1 (x64)  HEX-NET2 CB: 0.4623.4
Data version: 20221026 DS344.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZEH037985   License Plate: LATEST SCAN X
Mileage: 20km-12mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 0D 15 17 19 25 56 61 0B

VIN: WV1ZZZ7HZEH037985   Mileage: 20km-12miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: Cannot be reached 1100
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
0D-Slide Door, Left -- Status: OK 0000
15-Airbags -- Status: Cannot be reached 1100
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAD)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 FH    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H38 6293
   Revision: 22H38---    Serial number: 00000000000000 CVN: 13593D87
   Coding: 0111401A232401080000
   Shop #: WSC 07051 005 104857
   ASAM Dataset: EV_ECM20TDI01103L906019FH 003007
   ROD: EV_ECM20TDI01103L906019FH_003.rod
   VCID: 76BE8932E84BBF1BC1E-8022
   VINID: 9E606AAAA1D8A956000C724814F66D2210

17 Faults Found:
16703 - Gear Reconition Sensor
          P181C 00 [039] - Implausbile Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: 20.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4481 - Cruise Control Switch (E45)
          P0568 00 [036] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 2
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

4482 - Function Restriction due to Implausible Message(s)
          U1112 00 [036] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 5
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Cruise Control System (CCS): switch position-Bits 0-7: 192
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    Cruise control switch-off: irreversible-Bits 0-7: 255
                    Cruise control switch-off: reversible-Bits 0-7: 255
                    Cruise Control System: specified speed: 0.00 km/h
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0

4881 - EGR Valve (N18)
          P1440 00 [100] - Open Circuit
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 8 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.780 V
                    Unlearning counter according OBD: 40
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    EGR Vacuum Regulator Solen.val.: activation: 100.00 %
                    EGR Solen.val.: actual value: 99.19 %
                    EGR valve: offset closed: 0.84 %
                    Actuator for high pressure EGR: status-Bits 0-7: 55
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    Actuator for high pressure EGR: status-Bits 0-7: 2
                    Actuator for high pressure EGR: status-Bits 0-7: 3
                    High press EGR actuator: actual unconditioned volt val: 698.6 mV

5250 - Function Restriction due to Faults in Other Modules
          U1113 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Longitudinal acceleration: raw value: 32.767 m/s²
                    Vehicle inclination acceleration angle: raw value: 0.000 m/s²
                    Status: incline angle-Bits 0-7: 1
                    Longitudinal acceleration: 0.000 m/s²
                    Longitudinal acceleration sensor: status-Bits 0-7: 1
                    Vehicle lateral acceleration: raw value: 0.00 g
                    Vehicle lateral acceleration: 0.00 g

12006 - Indicator Lamp for Start-Stop Operation
          P167A 00 [036] - Electrical Malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.340 V
                    Unlearning counter according OBD: 40
                    Engine status: COENG_READY
                    Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 1

10092 - Neutral Gear Sensor
          P15A0 00 [039] - Electrical Malfunction
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Neutral position sensor: current transmission angle: -14.00 °
                    Neutral position sensor: adapted transmission angle: -0.65 °
                    Adaptation status of neutral position sensor-Bits 0-7: 60
                    Transmission neutral position sensor voltage: 0 mV
                    Neutral position sensor: upper adaptation value: 3360 mV
                    Neutral position sensor: lower adaptation value: 1580 mV

4708 - No Communications with HVAC Control Module (J301)
          U0164 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4710 - No Communications with Airbag Control Module
          U0151 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4715 - No Communication with Instrument Cluster
          U0155 00 [036] - -
          [Lost Communication WithInstrument Panel Cluster (IPC) Control Module]
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.360 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 9
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4717 - Body Control Module (Central Electric)
          U0140 00 [036] - No Communications
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.360 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 9
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4719 - No Communication with Diagnostic Gateway
          U0146 00 [036] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.340 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 201
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

4729 - Steering Effort Control Module
          U0130 00 [039] - No Communications
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:46

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 10 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.060 V
                    Unlearning counter according OBD: 40
                    Limitation: accelerator pedal: 92.5 Nm
                    CAN status - engine control module-Bits 0-7: 0
                    Cruise Control System (CCS): status-Bits 0-7: 200
                    CAN status - transmission control module-Bits 0-7: 0
                    CAN status - brake control module 1-Bits 0-7: 0
                    CAN status - brake control module 2-Bits 0-7: 0
                    selected gear-Bits 0-7: 0

5046 - Fuel Injector #1 (N30)
          P0263 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.160 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5044 - Fuel Injector #3 (N32)
          P0269 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.160 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5047 - Fuel Injector #4 (N33)
          P0272 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.160 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

5043 - Fuel Injector #2 (N31)
          P0266 00 [167] - Contribution/Balance Fault
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 27 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.160 V
                    Unlearning counter according OBD: 40
                    Allowed number of injections-Bits 0-7: 0
                    Injection release status-Bits 0-7: 0
                    Desired injection characteristic-Bits 0-7: 0
                    Mean injection quantity: 0.00 mg/stroke
                    Rail pressure regulation: status-Bits 0-7: 0
                    Fuel high-pressure: actual value: 0 hPa
                    Control Module temperature: 150.0 °C

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 K    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0110
   Revision: 00H43001
   Coding: 508724AD89A70A9C24AB9179B96390
   Shop #: WSC 07051 005 49152
   VCID: 3A265D029C531B7BE56-806E

8 Faults Found:
01317 - Control Module in Instrument Cluster (J285)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 4352
                    Count: 8242
                    Count: 766

03391 - Coding Not Possible
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 4352
                    Count: 8254
                    Count: 766

00474 - Control Module for Immobilizer
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 4352
                    Count: 8211
                    Count: 766

01299 - Diagnostic Interface for Data Bus (J533)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 0
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 4352
                    Count: 8233
                    Count: 766

01279 - Longitudinal Acceleration Sensor (G251)
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Fault Status: 01100101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:42

             Freeze Frame:
                    Count: 16384
                    Count: 4352
                    Count: 212
                    Count: 766

01314 - Engine Control Module
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:42

             Freeze Frame:
                    Count: 16384
                    Count: 4352
                    Count: 8193
                    Count: 766

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:44

             Freeze Frame:
                    Count: 16384
                    Count: 4096
                    Count: 8214
                    Count: 766

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Time Indication: 0

             Freeze Frame:
                    Count: 16448
                    Count: 4352
                    Count: 8226
                    Count: 766


-------------------------------------------------------------------------------
Address 08: Auto HVAC
Cannot be reached

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 342200003
   Coding: A0A0303A0A612431802849702E2B8C540780610F60064C41320000020000
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

3 Faults Found:
03442 - Return Message Closing Status of Rear Lid
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 01:38:45

01332 - Door Control Module; Passenger Side (J387)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 01:38:41

01331 - Door Control Module; Driver Side (J386)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 01:38:41


-------------------------------------------------------------------------------
Address 0D: Slide Door, Left
Cannot be reached

-------------------------------------------------------------------------------
Address 15: Airbags
Cannot be reached

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 960 JX    HW: 7E0 920 960 JX
   Component: KOMBI         H04 0709
   Serial number: 00000000000000
   Coding: 460201
   Shop #: WSC 07051 005 1048576
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
   VCID: 0842F7CA92BFB9EBA32-805C

2 Faults Found:
12605440 - Databus
          U1201 00 [008] - No Communications
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 44

12669184 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergerät für Airbag: keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Date: 2022.12.24
                    Time: 00:28:44


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042300
   Shop #: WSC 12345 288 27091
   VCID: 6882D74AB27F59EB432-803C

3 Faults Found:
01336 - Company Data Bus for Comfort System
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 1
                    Fault Frequency: 22
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:44

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:43

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 4
                    Mileage: 27 km
                    Time Indication: 0
                    Date: 2022.12.24
                    Time: 00:28:43


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0709
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A86AD42ACF36BFB556-803E

1 Fault Found:
13762816 - Databus
          U1201 00 [008] - No Communications
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 44


-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 342200003
   Coding: 230B1A73
   Shop #: WSC 01693 210 00002
   VCID: 6882D74AB27F59EB432-803C

   Subsystem 1 - Part No SW: 7E0 915 181 B    HW: 7E0 915 181 B
   Component: J367-BDM  H08 0181
   Serial number: 50238G45562221010723

No fault code found.

End----------(Elapsed Time: 00:56, VBatt start/end: 13.9V/13.9V)-----------

Last edited by a moderator:
   #39

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Hi Dana
I have checked the G85 for power / Gnd , checked airbag module, checked ABS all good, we have power and Gnd locations where it should
be, all continuity checks were all good, but still no signal or comms and 04 G85 & 15 AIRBAG no contact with module to vcds
I also checked J519 Gnd

   #40

senna1

Verified VCDS User
Verified
Joined
Jan 11, 2015
Messages
454
Reaction score
50
Location
UK
VCDS Serial number
C?ID=231631
Update i have noticed that the relays in the carrier in the engine E box if you turn OFF the ignition and wait for about 8 mins
the relays are clicking 646 type, & the Radiator Fan is pulsing & spins as it pulse, The ecu coding of 0111401A232401080000
is it correct,
Do you have a alternative i tried this one originally 01114012232401080000 but not since as it did NOT accept it.
I tried to put the original one back in but as it is 00000000000000000000 but no good

Back
Top
