After ACC retrofit Audi A4 (8W) Instrument show pre sense emergency deactivated

Status
Not open for further replies.
   #1
NEtech

NEtech

VCDS Distributor
VCDS Distributor
Joined
Feb 7, 2014
Messages
4,570
Reaction score
7,315
Location
Denmark
VCDS Serial number
C?ID=56995

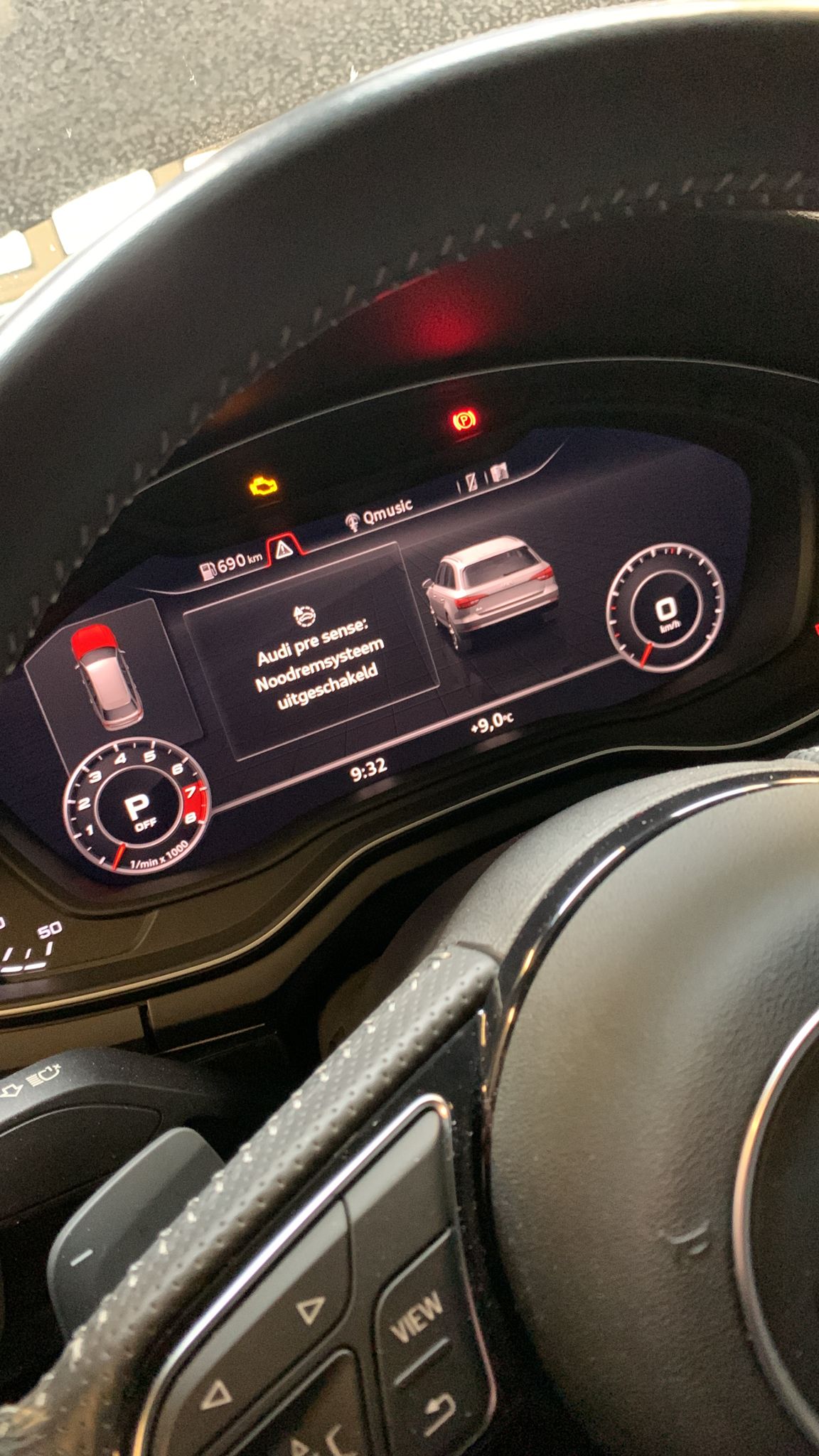

A customer had made ACC retrofit on a Audi A4 (8W) 2018.
It is working, but a message is shown in Instrument about pre sense emergency brake system deactivated.


For [15-Airbag] 8W0-959-655, I have compared this adaption channel on many different vehicles:
IDE06314-Calibration data: pre-crash
Change Bit 0 in last Byte and the message is gone.
I have not found so many definitions, but here you have an XPL file, with some information and open questions.
It is possible to copy Adaptation value with spaces and start latest LCode here, then open XPL file here.
Little video show it here.
A special procedure must be used, to save new Adaptation values.
Also when installing original Trailer on these Audi's, this channel is changed!

If anybody should find more information, please post it here.
