2020 Atlas Cross Sport - Change ambient colors

   #1

rocamet

Verified VCDS User
Verified
Joined
Oct 8, 2020
Messages
28
Reaction score
11
Location
Rancho Cucamonga, CA, USA
VCDS Serial number
C?ID=419570
Does anyone know if these different interior ambient colors are available to me? I'm not allowed to enter RGB values, current settings are 0 and it is asking me to manually enter a new value but I don't know what any other values would mean (i.e.1,2,3, etc)

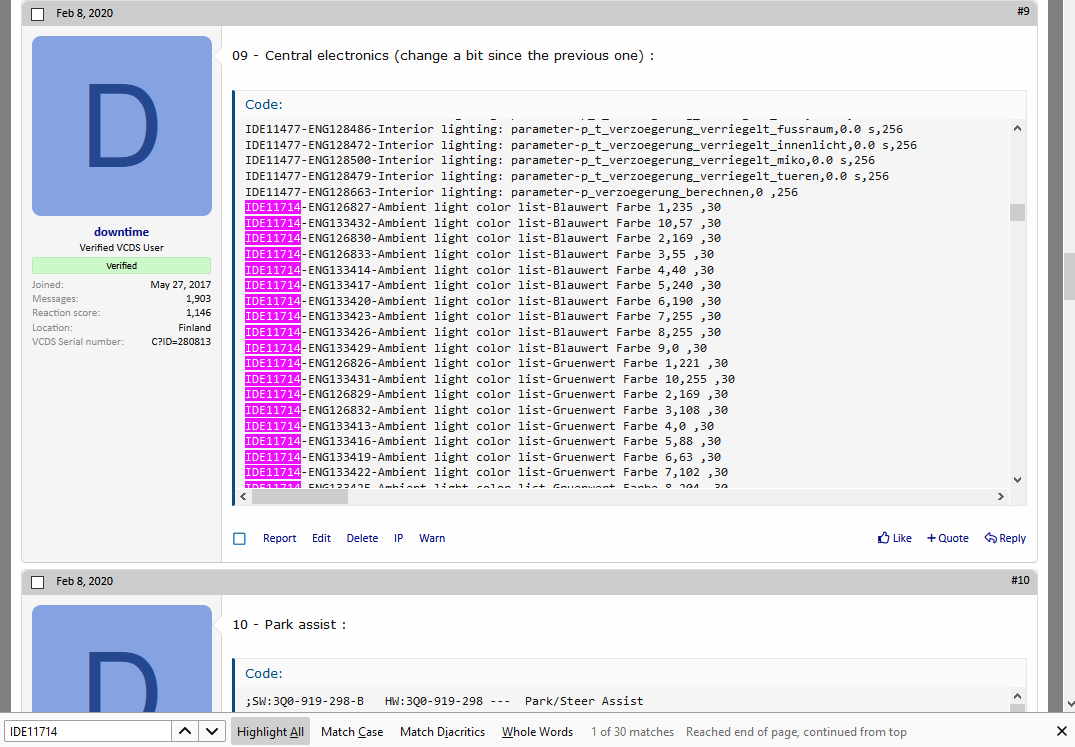

IDE11714-ENG126827-Ambient light color list-Blauwert Farbe 1 0
IDE11714-ENG133432-Ambient light color list-Blauwert Farbe 10 0
IDE11714-ENG126830-Ambient light color list-Blauwert Farbe 2 0
IDE11714-ENG126833-Ambient light color list-Blauwert Farbe 3 0
IDE11714-ENG133414-Ambient light color list-Blauwert Farbe 4 0
IDE11714-ENG133417-Ambient light color list-Blauwert Farbe 5 0
IDE11714-ENG133420-Ambient light color list-Blauwert Farbe 6 0
IDE11714-ENG133423-Ambient light color list-Blauwert Farbe 7 0
IDE11714-ENG133426-Ambient light color list-Blauwert Farbe 8 0
IDE11714-ENG133429-Ambient light color list-Blauwert Farbe 9 0
IDE11714-ENG126826-Ambient light color list-Gruenwert Farbe 1 0
IDE11714-ENG133431-Ambient light color list-Gruenwert Farbe 10 0
IDE11714-ENG126829-Ambient light color list-Gruenwert Farbe 2 0
IDE11714-ENG126832-Ambient light color list-Gruenwert Farbe 3 0
IDE11714-ENG133413-Ambient light color list-Gruenwert Farbe 4 0
IDE11714-ENG133416-Ambient light color list-Gruenwert Farbe 5 0
IDE11714-ENG133419-Ambient light color list-Gruenwert Farbe 6 0
IDE11714-ENG133422-Ambient light color list-Gruenwert Farbe 7 0
IDE11714-ENG133425-Ambient light color list-Gruenwert Farbe 8 0
IDE11714-ENG133428-Ambient light color list-Gruenwert Farbe 9 0
IDE11714-ENG126825-Ambient light color list-Rotwert Farbe 1 0
IDE11714-ENG133430-Ambient light color list-Rotwert Farbe 10 0
IDE11714-ENG126828-Ambient light color list-Rotwert Farbe 2 0
IDE11714-ENG126831-Ambient light color list-Rotwert Farbe 3 0
IDE11714-ENG133412-Ambient light color list-Rotwert Farbe 4 0
IDE11714-ENG133415-Ambient light color list-Rotwert Farbe 5 0
IDE11714-ENG133418-Ambient light color list-Rotwert Farbe 6 0
IDE11714-ENG133421-Ambient light color list-Rotwert Farbe 7 0
IDE11714-ENG133424-Ambient light color list-Rotwert Farbe 8 0
IDE11714-ENG133427-Ambient light color list-Rotwert Farbe 9 0



Auto Scan:

Code:
Wednesday,07,October,2020,21:57:57:21681
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.2.0 (x64)  HEX-V2 CB: 0.4513.4
Data version: 20200730 DS317.0
www.Ross-Tech.com


VIN: 1V2NE2CA0LC213197   License Plate:


Chassis Type: CA-VW41 (3Q0)
Scan: 01 02 03 05 08 09 10 13 15 17 19 22 36 3C 42 44 47 4B 52 5F
          69 6C 6D 75 A5 CA D6 D7

VIN: 1V2NE2CA0LC213197   Mileage: 859km-533miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: OK 0000
4B-Multifunc. Module -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
75-Telematics -- Status: Malfunction 0010
A5-Frt Sens. Drv. Assist -- Status: OK 0000
CA-Sunroof -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CDVC)       Labels: None
   Part No SW: 03H 906 026 AG    HW: 03H 907 309 K
   Component: VR6 3.6l FSI  H21 9970
   Revision: 52H21000
   Coding: 012A003244740108F0000000000000000000000000000000
   Shop #: WSC 06050 062 00200
   ASAM Dataset: EV_ECM36FSI01103H906026AG 001006
   ROD: EV_ECM36FSI01103H906026AG.rod
   VCID: 6A8DC661CCFAA24BEC7-803E

   CAN Converter 01:

1 Fault Found:
22593 - Fuel Level Sensor Circuit
          P0461 00 [096] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 203 km
                    Date: 2020.09.20
                    Time: 13:54:22

                    Engine speed: 1495.00 /min
                    Normed load value: 39.6 %
                    Vehicle speed: 85 km/h
                    Coolant temperature: 83 °C
                    Intake air temperature: 34 °C
                    Ambient air pressure: 940 mbar
                    Voltage terminal 30: 12.740 V
                    Unlearning counter according OBD: 18
                    Outside air temperature: 31 °C
                    Air mass: actual value:: 17.22 g/s
                    Engine torque: 133.1 Nm
                    Fuel: tank fill level: 70.0 l
                    Oxygen sensor bank 1 sensor 1: specified value: 1.0000
                    Intake camshaft bank1 active operating mode-Bits 0-7: 0
                    Intake camshaft bank1 active operating mode-Bits 0-7: 0
                    Overrun cut-off-Bits 0-7: 0

Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217)       Labels: 09G-927-749-V2.clb
   Part No SW: 09G 927 158 DR    HW: 09G 927 158
   Component: AISIN AQ8     206 3742
   Coding: 0000000100000000000000000000000000000000
   Shop #: WSC 06050 062 00200
   ASAM Dataset: EV_TCMAQ450031 001001
   ROD: EV_TCMAQ450031_VW37.rod
   VCID: 065592D1F8A2662B68F-8052

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 5Q0-907-379-IPB-V1.clb
   Part No SW: 5Q0 614 517 DL    HW: 5Q0 614 517 BP
   Component: ESC           H35 0113
   Revision: 00000000    Serial number: 50410000000867
   Coding: 85FC6B8D80211A6FC5780309A2CA69A1D60158A3C045967638415058D2AA4A0B004023641C12141A1D8DDB45506CC8CF
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Brake1UDSContiMK100IPB 049012
   ROD: EV_Brake1UDSContiMK100IPB_049_VW27.rod
   VCID: 7EA5FA31A0723EEB20F-802A

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518)       Labels:| 5Q0-959-435.clb
   Part No SW: 3Q0 959 435 N    HW: 3Q0 959 435 N
   Component: VWKESSYMQB    037 1307
   Revision: 00037000    Serial number: 0536888289
   Coding: 1F20000723
   Shop #: WSC 06050 062 00200
   ASAM Dataset: EV_KessyHellaMQBAB 004052
   ROD: EV_KessyHellaMQBAB.rod
   VCID: 45D755DD8524AD33215-8010

   Sensor Controlled Power Rear Lid:
   Subsystem 1 - Part No SW: 3G0 962 243 C    HW: 3G0 962 243 C
   Component: GEB.F.Heckoef  H17 0906
   Serial number: 14277850

No fault code found.

-------------------------------------------------------------------------------
