There are terminal pins which allow two conductors to be crimped together.



I get that for larger terminals like the one you pictured, however in my instance the wire and terminal pin is much smaller (000979009e - pictured below), and I've never seen these tiny connectors crimped together.

   #22

TTT

Verified VCDS User
Verified
Joined
Jun 10, 2023
Messages
1,227
Reaction score
555
Location
Netherlands
VCDS Serial number
C?ID=547002
Then you could complain to vag group for incorrect diagrams I assume? What sort of material damage had you sustain?

Look closer:

   #23

gramsca

Verified VCDS User
Verified
Joined
Aug 14, 2023
Messages
13
Reaction score
1
Location
Phoenix, AZ, USA
VCDS Serial number
C?ID=492771
Then you could complain to vag group for incorrect diagrams I assume? What sort of material damage had you sustain?

Look closer:
This does not answer my original question. Thank you for your input, however.

  • Like
Reactions: TTT
   #24

PetrolDave

Verified VCDS User
Verified
Joined
Dec 16, 2014
Messages
9,493
Reaction score
8,995
Location
Westbury, UK
VCDS Serial number
C?ID=1423
Does anyone know what this means? I cannot find an answer for this even from the tons of YouTube videos and forums on wiring diagram tutorials.

Reference to the two wires being conjoined at pin 9.

What it looks like to me is that two wire terminals are connected at one terminal pin.
See the * and + symbols beside two of the wires? Are there notes on the page that suggest these wires are option dependent?

   #25

gramsca

Verified VCDS User
Verified
Joined
Aug 14, 2023
Messages
13
Reaction score
1
Location
Phoenix, AZ, USA
VCDS Serial number
C?ID=492771
See the * and + symbols beside two of the wires? Are there notes on the page that suggest these wires are option dependent?
I figured it out.

The + just means positive. Yes, you are right that the asterisk implies optional equipment, but that optional equipment I'm equipped with, which caused the initial confusion.

In my case, the added option implies a different pin connector. The optional equipment (*) indicates that W45 has a 4-pin connector (T4hy), whereas if equipped without the optional equipment, W45 has a 2-pin connector (T2wl).
Hence why there seems to be an "extra wire" going to one pin, whereas that's not actually the case.

Kind of confusing at first but it makes sense now.


   #26

Jetta 97

Professional User
Professional VCDS User
Joined
Apr 22, 2014
Messages
1,638
Reaction score
1,646
Location
Dallas (McKinney) ,TX ,USA
VCDS Serial number
C?ID=81680
It is not Extra wire , For 2-pin connector (T2wl) is GR and WS colors they go together, For 4-pin connector (T4hy) is GR/GE and WS.
I hope this helps you in future .

   #27

gramsca

Verified VCDS User
Verified
Joined
Aug 14, 2023
Messages
13
Reaction score
1
Location
Phoenix, AZ, USA
VCDS Serial number
C?ID=492771
There are terminal pins which allow two conductors to be crimped together.


Then you could complain to vag group for incorrect diagrams I assume? What sort of material damage had you sustain?

Look closer:
Also in doing some research and looking at the wiring in my car, VW/Audi and other professional companies do not ever crimp two wires to one pin terminal.

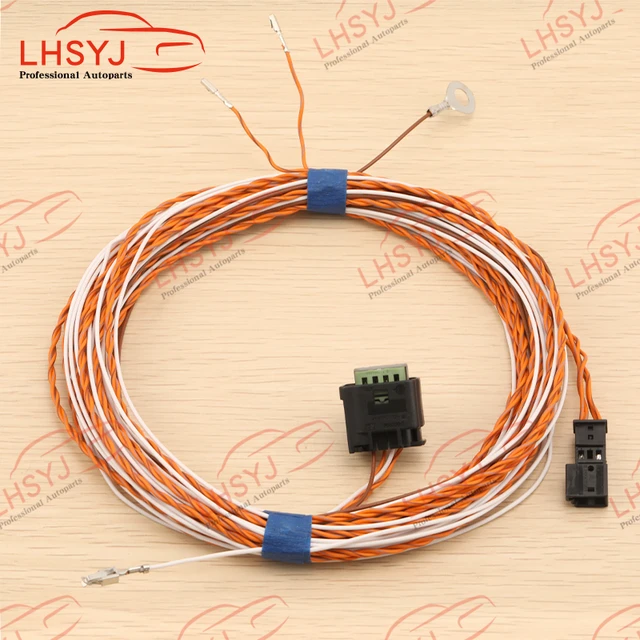

Of course, you will still see it on Aliexpress and other homemade harnesses - because those are not professional.

The tiny pin terminals that are used by VW/Audi made that are made by very good electronic companies are made for very specific wire gauges and other specifics - and are designed to be used with only one wire.

Last edited:
   #28

Jetta 97

Professional User
Professional VCDS User
Joined
Apr 22, 2014
Messages
1,638
Reaction score
1,646
Location
Dallas (McKinney) ,TX ,USA
VCDS Serial number
C?ID=81680
Also in doing some research and looking at the wiring in my car, VW/Audi and other professional companies do not ever crimp two wires to one pin terminal.
Actually they do but very rare . I have seen it before

Go to 6 minutes and you will see it :


   #29

gramsca

Verified VCDS User
Verified
Joined
Aug 14, 2023
Messages
13
Reaction score
1
Location
Phoenix, AZ, USA
VCDS Serial number
C?ID=492771
How is that indicated on vw wiring diagrams?
