Disable factory handsfree through VCDS

[nmdenn2]

Long story short, I have a Dension Pro BT. I would like to disable the handsfree from Audi and go with the Dension as the two conflict for A2DP streaming upon startup. Removing the fuse is almost perfect as it gives me access to my phone through the steering wheel controls as desired. HOWEVER, the Sirius radio is also fused through this same one!!! I would like to keep the satellite as I purchased the adapter harness to retain it when the Dension was installed. I have tried:

1) Turning BT off in adaptations in 77
2) Changing steering wheel type code in 16
3) Unchecking 77 telephone in the 19 CAN installation list

All still yields "INSERT PHONE" when mode is pushed.



[jakematic]

Which vehicle brand/model/year are we talking about ?
Any chance of an Auto-Scan so we can see the current coding ?

I've seen it turned on before so turning it off shouldn't be too big a deal - I think.
As I recall it's actually in module 07, but depends on the vehicle.



[nmdenn2]

Sorry, used to posting at TDI Club. It's a 2012 Audi A3. I can post a scan but I posted a scan on Vortex once and got chastised for something. I was thinking I wasn't posting there again because I thought I was posting the scan.



[jakematic]

This ain't the vortex, and you are a verified VCDS owner... we don't bite

The only thing we ask here is to post a complete un-molested scan, obscuring the last bit of the VIN if you choose.



[nmdenn2]

This is old but gonna be about the same best I remember from looking at it a couple hours ago.

Tuesday,18,February,2014,18:25:43:53766
VCDS -- Windows Based VAG/VAS Emulator
VCDS Version: 12.12.0.0
Data version: 20130910


VIN: WAUKJAFM9CA028574   License Plate:
Mileage: 71530km-44446mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: FM (7N0)
Scan: 01 02 03 08 09 0F 15 16 17 19 25 2E 42 44 46 47 4C 52 55 56
          62 72 77

VIN: WAUKJAFM9CA028574   Mileage: 71530km/44446miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
0F-Digital Radio -- Status: Malfunction 1010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: Malfunction 0010
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Cannot be reached 1100
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
4C-Tire Pressure II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Xenon Range -- Status: OK 0000
56-Radio -- Status: Malfunction 1010
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: Malfunction 1010

-------------------------------------------------------------------------------
Address 01: Engine (CBE)       Labels: 03L-906-022-CBE.clb
   Part No SW: 03L 906 019 EJ    HW: 03L 906 019 EJ
   Component: R4 2,0L EDC G000AG  1466
   Revision: 12H14---    Serial number: AUX7Z0K6FNE0A5
   Coding: 0050078
   Shop #: WSC 83968 811 600134
   VCID: 77D335BE061F42A6A59-8022

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-300-0xx.lbl
   Part No SW: 02E 300 057 A    HW: 02E 927 770 AL
   Component: GSG DSG AG6     511 2705
   Revision: 05351113    Serial number: 00001107011486
   Coding: 0000020
   Shop #: WSC 06314 000 00000
   VCID: 1713153E265FA2A6459-8042

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 BJ    HW: 1K0 907 379 BJ
   Component: ESP MK60EC1   H31 0121
   Revision: 00H31001
   Coding: 1150400F49240002881002EB921D0042BF0C00
   Shop #: WSC 06314 000 00000
   VCID: 7BDB298EFA3766C6C11-802E

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 8P0-820-043.lbl
   Part No SW: 8P0 820 043 BN    HW: 8P0 820 043 BN
   Component: KlimavollautomatH09 0180
   Revision: 000520      Serial number: 8P0820043BN
   Shop #: WSC 00000 000 00000
   VCID: 79D73386300B54D6D3D-802C

1 Fault Found:
01301 - Control Module for Voice Recognition (J507)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 114
                    Mileage: 71353 km
                    Time Indication: 0
                    Date: 2014.02.14
                    Time: 16:48:01

             Freeze Frame:
                        ON


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 8P0-907-063.clb
   Part No SW: 8P0 907 063 Q    HW: 8P0 907 063 Q
   Component: BCM PQ35  M   110 0653
   Revision: 00110 AF
   Coding: 6E000A0FA01336E4287241E000100D4D401E62AA104DD128E40008840040
   Shop #: WSC 06314 000 00000
   VCID: 42A5946ADD5DD70EC27-8017

   Subsystem 1 - Part No SW: 8P1 955 119 F    HW: 8P1 955 119 F  Labels: 1KX-955-119.CLB
   Component: Wischer AU350  H11 0050
   Coding: 00DD13

   Subsystem 2 - Part No: 1K8 951 605 B
   Component: LIN BACKUP HO  H11 9005

No fault code found.

-------------------------------------------------------------------------------
Address 0F: Digital Radio        Labels: 8E0-035-593-SIR.lbl
   Part No SW: 8E0 035 593 P    HW: 8E0 035 593 P
   Component: SDAR SIRIUS     H07 0160
   Revision: 00000000    Serial number: AUZ4Z7L0600247
   Coding: 0000100
   Shop #: WSC 06314 000 00000
   VCID: 364DF8BA41957BAE7EF-8063

2 Faults Found:
02635 - Tuner Not Enabled/Activated
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 7
                    Fault Frequency: 1
                    Reset counter: 78
                    Mileage: 71492 km
                    Time Indication: 0
                    Date: 2014.02.18
                    Time: 15:09:08

01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 17:31:33


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels: 8P0-959-655-10.clb
   Part No SW: 8P0 959 655 Q    HW: 8P0 959 655 Q
   Component: Airbag AU1042 H09 0250
   Revision: --------    Serial number: 003FC001H1GM
   Coding: 303142393041303030374A55304C38503053
   Shop #: WSC 06314 000 00000
   ASAM Dataset: EV_Airba10AURB4 001001
   ROD: EV_Airba10AURB4.rod
   VCID: 5081AE220B31359E443-8005

   Seat occupied recognition:
   Subsystem 1 - Part No SW: 8P0 910 339 C    HW: 8P0 959 339 C
   Component: BF-Gewichtss.  H02 0030
   Serial number: 5810000R0000005LWN
   Coding: 000000

   Crash sensor for side airbag; driver side:
   Serial number: 3572DRB40000DCE0831.

   Crash sensor for side airbag; passenger side:
   Serial number: 3582DRB40000DCE0F10%

   Crash sensor for side airbag; rear driver side:
   Serial number: 35128RB4000063816C3E

   Crash sensor for side airbag; rear passenger side:
   Serial number: 35228RB40000641D932E

   Crash sensor for front airbag; driver side:
   Serial number: 35547RB4000065434BAN

   Crash sensor for front airbag; passenger side:
   Serial number: 35647RB400006543499L

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 8P0-953-549.lbl
   Part No SW: 8P0 953 549 K    HW: 8P0 953 549 K
   Component: J0527           H37 0070
   Coding: 0014142
   Shop #: WSC 06314 000 00000
   VCID: 46AD887A3175EB2EEEF-8013

   Subsystem 1 - Part No: XXXXXXXXXXX
   Component: E0221           H02 0100

3 Faults Found:
01304 - Radio
            004 - No Signal/Communication - Intermittent
01303 - Telephone Transceiver (R36)
            004 - No Signal/Communication - Intermittent
01301 - Control Module for Voice Recognition (J507)
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 8P0-920-xxx-17-MY8.clb
   Part No SW: 8P0 920 983 D    HW: 8P0 920 983 D
   Component: KOMBIINSTR. VDO H02 0150
   Revision: D0H02002    Serial number: 2246K002000877
   Coding: 0272288
   Shop #: WSC 03215 444 12609
   VCID: 3B5BE98E7AB7A6C6811-806E

1 Fault Found:
00003 - Control Module
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Fault Status: 01100101
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 55460 km
                    Time Indication: 0
                    Date: 2013.08.13
                    Time: 18:19:23


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 H    HW: 1K0 907 951
   Component: J533  Gateway H42 1620
   Revision:   H42       Serial number: 040711F1000612
   Coding: 352102
   Shop #: WSC 06314 000 00000
   VCID: 354FFFB69C9370B6775-8060

4 Faults Found:
01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00110100
                    Fault Priority: 2
                    Fault Frequency: 3
                    Reset counter: 114
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 17:31:27

01303 - Telephone Transceiver (R36)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00110100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 114
                    Mileage: 71353 km
                    Time Indication: 0
                    Date: 2014.02.14
                    Time: 16:47:49

02649 - Digital Radio Tuner
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00110100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 114
                    Mileage: 71353 km
                    Time Indication: 0
                    Date: 2014.02.14
                    Time: 16:47:49

03272 - Control Module for Audio Interface
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 72
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 18:55:10


-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 8P0 920 983 D    HW: 8P0 920 983 D
   Component: KOMBIINSTR. VDO H02 0150
   Revision: D0H02002    Serial number: AUX7Z0K6FNE0A5
   Shop #: WSC 00000 000 00000
   VCID: 3B5BE98E7AB7A6C6811-806E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3
Cannot be reached

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels: 8P0-959-801-MIN3.lbl
   Part No SW: 8P0 959 801 Q    HW: 8P0 959 801 Q
   Component: Tuer-SG         H04 0101
   Coding: 0001213
   Shop #: WSC 06314 000 00000
   VCID: 49B78346206B045603D-801C

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb
   Part No: 1K0 909 144 M
   Component: EPS_ZFLS Kl. 232    3201
   Revision: 00H20000
   Shop #: WSC 02069 000 90108
   VCID: 3449C2B257E969BE40B-8061

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System        Labels: 8Px-035-382.lbl
   Part No SW: 8P4 035 382 E    HW: 8P4 035 382 E
   Component: AB2 SUBWOOFERBOXH07 0180
   Revision: 00006       Serial number: 92158120924100
   Shop #: WSC 00000 000 00000
   VCID: 364DF8BA41957BAE7EF-8063

No fault code found.

-------------------------------------------------------------------------------
Address 4C: Tire Pressure II
Cannot be reached

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels: 1K0-959-702-MIN3.lbl
   Part No SW: 8P0 959 802 Q    HW: 8P0 959 802 Q
   Component: Tuer-SG         H04 0101
   Coding: 0001213
   Shop #: WSC 06314 000 00000
   VCID: 4AB5BC4A256D0F4E0A7-801F

No fault code found.

-------------------------------------------------------------------------------
Address 55: Xenon Range        Labels: 8P0-907-357.lbl
   Part No: 8P3 907 357 B
   Component: Dynamische LWR  H01 0010
   Revision: 00000001    Serial number:
   Coding: 0000013
   Shop #: WSC 06314 000 00000
   VCID: 3C59EA927FB9A1FE88B-8069

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio        Labels: None
   Part No SW: 8P0 035 186 AC    HW: 8P0 035 186 AC
   Component: R Concert2+     H04 0293
   Revision: 00H04000    Serial number: AUZ1Z3L2597560
   Coding: 0750112
   Shop #: WSC 06314 000 00000
   VCID: 73CB01AE12672E86991-8026

6 Faults Found:
01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 255
                    Time Indication: 15

01305 - Databus for Infotainment
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 18:24:22

00466 - Control Module for Steering Column Electronics (J527)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Time Indication: 15

00856 - Radio Antenna
            011 - Open Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101011
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 17:47:18

00821 - Antenna 2 for Radio (R93)
            011 - Open Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101011
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 17:47:18

02218 - Satellite Radio (R146)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 18:24:22


-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels: 8P4-959-801.lbl
   Part No SW: 8P4 959 801 F    HW: 8P4 959 801 F
   Component: Tuer-SG         H04 0050
   Coding: 0001176
   Shop #: WSC 06314 000 1012544
   VCID: 42A5946A1D5DD70EC27-8017

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels: 8P4-959-802.lbl
   Part No SW: 8P4 959 802 F    HW: 8P4 959 802 F
   Component: Tuer-SG         H04 0050
   Coding: 0001176
   Shop #: WSC 06314 000 1012544
   VCID: 43AB916E0247DE06C91-8016

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone        Labels: 8P0-862-335.lbl
   Part No SW: 8P1 862 336 A    HW: 8P1 862 336
   Component: FSE_256x BT     H44 0660
   Revision: 00000000    Serial number: 00000005155115
   Coding: 0001277
   Shop #: WSC 06314 000 00000
   VCID: 364DF8BA41957BAE7EF-8063

2 Faults Found:
02503 - Output Wire to Radio
            011 - Open Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101011
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 17:31:31

01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 71336 km
                    Time Indication: 0
                    Date: 2014.02.13
                    Time: 18:24:28


End   ---------------------------------------------------------------------



[jakematic]

Well those label files are encrypted so I don't have access to them...

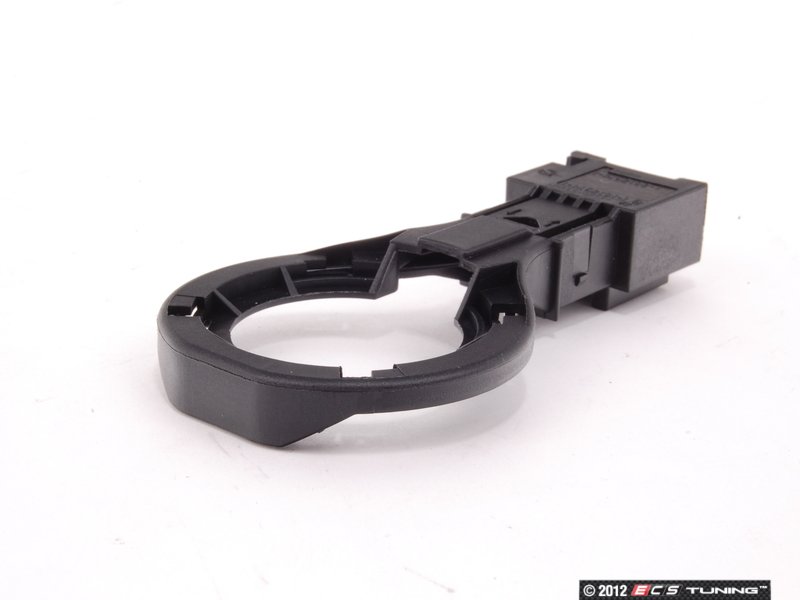

What I'd suggest is removing power from and using a MOST loop tool 4E0 973 802 to ring out the 77 module as though it wasn't installed.
There may be additional coding required, but only the Ross-Tech folks can tell you for sure.



[nmdenn2]

Very interesting. What would be the advantage over say unplugging the module and wrapping it in electrical tape?



[jyoung8607]

Very interesting. What would be the advantage over say unplugging the module and wrapping it in electrical tape?

For CAN bus, you could get away with that.

If the device uses the MOST optical bus, each node in the ring depends on its adjacent neighbors in the ring for proper communication, similar to Token Ring in the bad old days of PC networking. The device Jake linked to takes a MOST device out of the physical network topology in a proper way, re-joining the network at that point as if that module didn't exist.

Jason



[Uwe]

I don't think any of the 8P chassis (2nd gen) A3 cars had a MOST bus in 'em.

-Uwe-



[nmdenn2]

Uwe, thanks for embedding that code. I thought that should be the protocol but I didn't take the time to Google it.

At this point I'm not sure what to do with it. I'm not even sure where the module is physically located as it seems information on Audis in general is very difficult to locate. Some of the simplest tasks on these things are like brain surgery... (no offense to anyone here, information is MUCH appreciated).



[jakematic]

I don't think any of the 8P chassis (2nd gen) A3 cars had a MOST bus in 'em.

D'oh! So used to MOST bus I forget sometimes....

At this point I'm not sure what to do with it. I'm not even sure where the module is physically located as it seems information on Audis in general is very difficult to locate. Some of the simplest tasks on these things are like brain surgery... (no offense to anyone here, information is MUCH appreciated).

You can find the module [assuming my assumption that it is separate is correct] in the factory repair manual on erWin.
Might also want to ask on AudiWorld as I'm finding lots of discussion on BT and Dension in the A3 forum.

Edit: After more searching I'm pretty sure it's under the carpet in the driver side footwell, but check that before you start remodeling



[nmdenn2]

Appreciate the responses! Looking at the erWin link (which BTW, I don't know German), I wanted to think my 2012 is a 3rd generation but I could be wrong...



[jakematic]

Looking at the erWin link (which BTW, I don't know German)

Weird... have had several people say that lately.
The gist of it is you create an account, pay for the time period (e.g. $35 for 24 hours), get the PDFs (which are normally in English) and go from there.



[nmdenn2]

Good to know!
